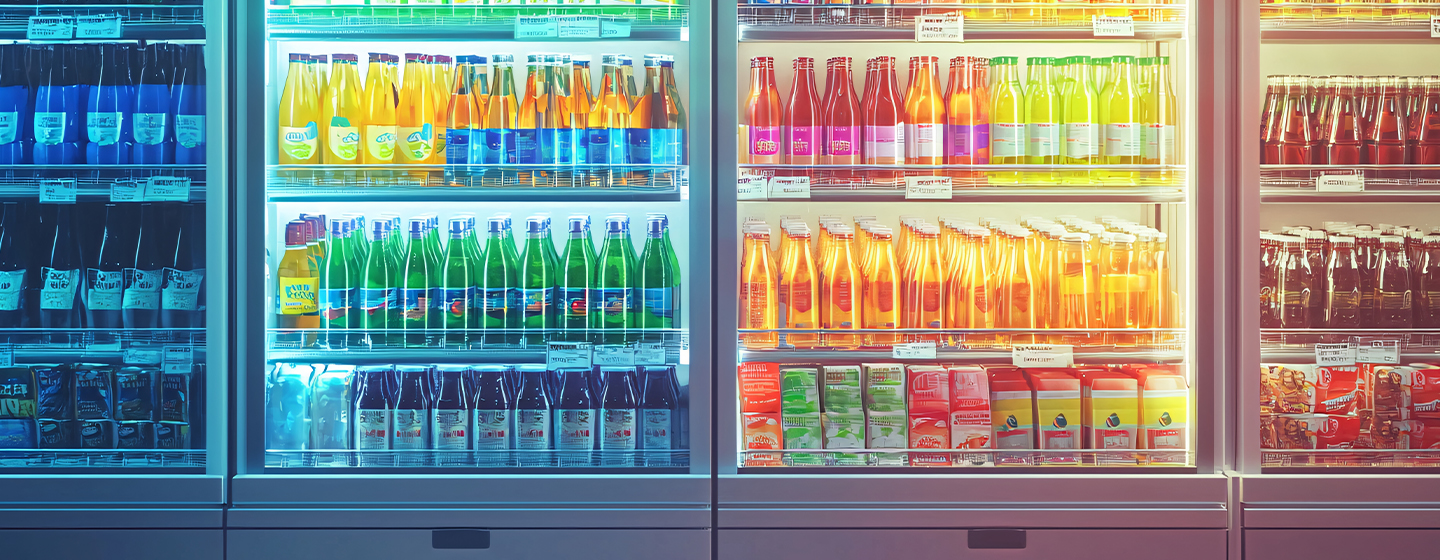

Beverage Cabinets

The fan is the core component of the beverage cabinet to achieve precise temperature control, rapid cooling and efficient display, which directly affects the beverage preservation effect, energy consumption level and user experience. The fan in the beverage cabinet needs to operate 24 hours a day. Therefore, highly reliable energy-saving products are needed.



Ventilation and Coling Fan

  1. Temperature uniformity



  • Forced convection heat dissipation: The fan drives the cold air to circulate at a flow rate of 0.5-1.2m/s, eliminating the temperature difference in the cabinet (from ±5℃ to ±1℃), avoiding overcooling of the upper layer of beverages or insufficient cooling of the lower layer.
    • Case: After a convenience store upgraded its EC fan, the rate of carbonated beverage bottle explosion dropped by 90%.
  • Air curtain insulation: The fan on the top of the vertical beverage cabinet forms a downward airflow barrier (wind speed 2-3m/s), isolating the invasion of external hot air, and reducing the loss of cold capacity by 40%.



  1. Rapid cooling and recovery



  • Pre-cooling acceleration: Newly replenished beverages (25℃→4℃) are forced to circulate through the fan, and the cooling time is shortened from 4 hours to 1.5 hours.
  • Door opening compensation: After the infrared sensor opens the door, the fan runs at full speed (air volume increases by 50%), and the temperature recovery time is reduced from 10 minutes to 3 minutes.



  1. Energy saving and noise reduction



  • On-demand air supply: EC variable frequency fan adjusts the speed according to the temperature in the cabinet and the flow of customers (such as reducing the speed by 40% at night), reducing energy consumption by 30%-40%.
  • Silent design: Cross-flow fans (noise ≤ 40dB(A)) are suitable for convenience stores and coffee shops to avoid noise interference with customer experience.



  1. Anti-condensation and display optimization



  • Humidity control: The fan balances the humidity in the cabinet (60%-70% RH), prevents condensation on the glass door, and keeps the beverage bottles dry and transparent.
  • Display enhancement: Uniform airflow prevents frost on the bottle, and combined with LED cold light source (color temperature 5000K), it enhances the attractiveness of the product.
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-63-4/8T-3 SODECA Smoke Extract Fans HTMF-63-4/8T-3 icx-SODECA-HTMF-63-4/8T-3
SODECA HTMF-63-4/8T-3, Smoke Extract Fans, Speed:1430/705 RPM, Installed Power:2.20/0.45 KW, Max. Air Flow:18045/8900 m³/h, Noise:59/44 dB
1 112 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-56-6T-0.75 SODECA Smoke Extract Fans HTMF-56-6T-0.75 icx-SODECA-HTMF-56-6T-0.75
SODECA HTMF-56-6T-0.75, Smoke Extract Fans, Speed:930 RPM, Installed Power:0.55 KW, Max. Air Flow:8255 m³/h, Noise:43 dB
1 80 KG No
SODECA THT/IMP-C-UNI-90-4T-10 IE3 SODECA Smoke Extract Fans THT/IMP-C-UNI-90-4T-10 IE3 icx-SODECA-THT/IMP-C-UNI-90-4T-10 IE3
SODECA THT/IMP-C-UNI-90-4T-10 IE3, Smoke Extract Fans, Speed:1460 RPM, Installed Power:7.5 KW, Max. Air Flow:52000 m³/h, Noise:65 dB
1 495 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-LS-REV-29-2/4T SODECA Smoke Extract Fans THT/IMP-LS-REV-29-2/4T icx-SODECA-THT/IMP-LS-REV-29-2/4T
SODECA THT/IMP-LS-REV-29-2/4T, Smoke Extract Fans, Speed:2780/1380 RPM, Installed Power:0.55/0.15 KW, Max. Air Flow:3400/1690 m³/h, Noise:40/24 dB
1 55 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-LS-UNI-45-2/4T-3 SODECA Smoke Extract Fans THT/IMP-LS-UNI-45-2/4T-3 icx-SODECA-THT/IMP-LS-UNI-45-2/4T-3
SODECA THT/IMP-LS-UNI-45-2/4T-3, Smoke Extract Fans, Speed:2885/1435 RPM, Installed Power:2.20/0.60 KW, Max. Air Flow:13200/6570 m³/h, Noise:60/44 dB
1 113 KG Yes, (The set sales target for the product by the required date)
SODECA CJTHT/ATEX-125-6T/12-20/CAT3 SODECA Smoke Extract Fans CJTHT/ATEX-125-6T/12-20/CAT3 icx-SODECA-CJTHT/ATEX-125-6T/12-20/CAT3
SODECA CJTHT/ATEX-125-6T/12-20/CAT3, Smoke Extract Fans, Speed:970 RPM, Installed Power:15 KW, Max. Air Flow:81840 m³/h
1 560 KG Yes, (The set sales target for the product by the required date)
