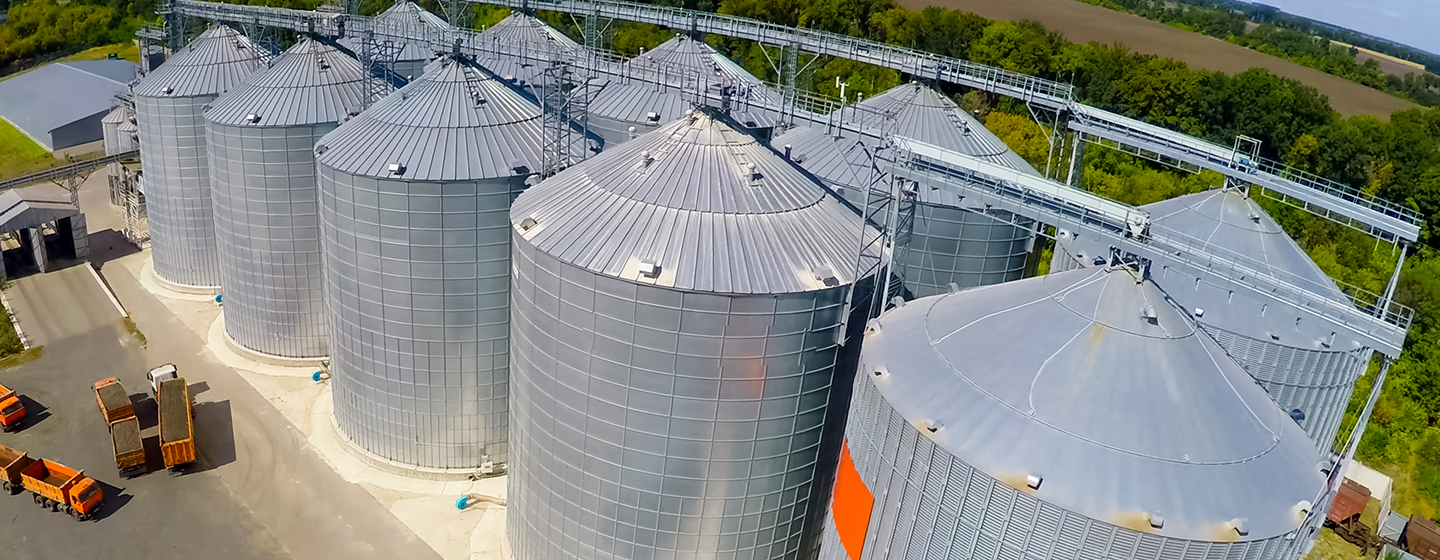

Harvest Storerooms

Fans play a core role in regulating temperature and humidity, inhibiting mildew, and ensuring grain quality in grain storage rooms. Their role is not limited to ventilation, but also involves the balanced management of the grain storage ecosystem.



Ventilation and Coling Fan

1. Type selection

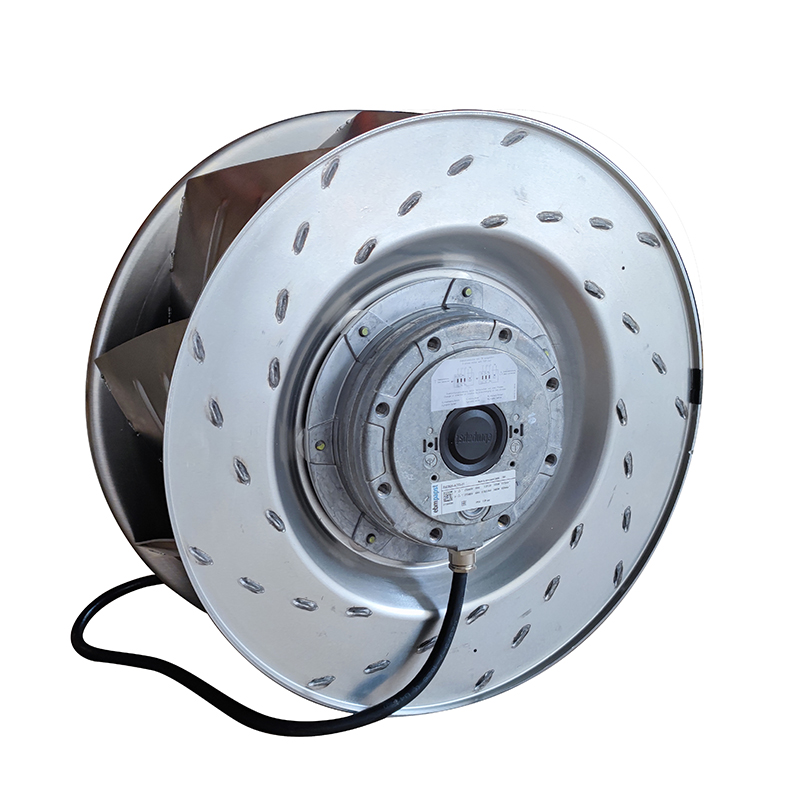

Centrifugal fan:

  • Advantages: high wind pressure (≥800Pa), suitable for ventilation of deep grain piles (height>6m), strong penetration.
  • Scenario: vertical ventilation system of large granaries and silos.

Axial fan:

  • Advantages: large air volume (≥10000m³/h), low energy consumption, suitable for surface ventilation or horizontal air circulation.
  • Scenario: horizontal ventilation of bungalow warehouses, emergency cooling.

2. Calculation of key parameters

  • Air volume: according to the volume of grain pile × unit air volume (such as rice 0.03m³/min·m³), ensure that the number of ventilation times is ≥15 times/day.
  • Explosion-proof design: Grain dust (such as flour) is explosive, and explosion-proof motors (Ex d IIB T4 standard) must be selected.
  • Corrosion-resistant material: The outer shell is made of aluminum-zinc-plated steel plate or 304 stainless steel to avoid rust in humid environments (especially granaries in coastal areas).
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-90-4T-5.5 IE3 SODECA Smoke Extract Fans HTMF-90-4T-5.5 IE3 icx-SODECA-HTMF-90-4T-5.5 IE3
SODECA HTMF-90-4T-5.5 IE3, Smoke Extract Fans, Speed:1445 RPM, Installed Power:4 KW, Max. Air Flow:35200 m³/h, Noise:71 dB
1 208 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-80-6T-3IE3 SODECA Smoke Extract Fans HTMF-80-6T-3IE3 icx-SODECA-HTMF-80-6T-3IE3
SODECA HTMF-80-6T-3IE3, Smoke Extract Fans, Speed:960 RPM, Installed Power:2.2 KW, Max. Air Flow:24890 m³/h, Noise:56 dB
1 191 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-80-4T-4 IE3 SODECA Smoke Extract Fans HTMF-80-4T-4 IE3 icx-SODECA-HTMF-80-4T-4 IE3
SODECA HTMF-80-4T-4 IE3, Smoke Extract Fans, Speed:1455 RPM, Installed Power:3 KW, Max. Air Flow:27750 m³/h, Noise:65 dB
1 163 KG Yes, (The set sales target for the product by the required date)
SODECA Cl-50-4T SODECA Smoke Extract Fans Cl-50-4T icx-SODECA-Cl-50-4T
SODECA Cl-50-4T, Smoke Extract Fans, Speed:1395 RPM, Installed Power:1.2 KW, Max. Air Flow:6050 m³/h, Noise:64 dB
1 83 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-UNI-63-4T-3 IE3 SODECA Smoke Extract Fans THT/IMP-C-UNI-63-4T-3 IE3 icx-SODECA-THT/IMP-C-UNI-63-4T-3 IE3
SODECA THT/IMP-C-UNI-63-4T-3 IE3, Smoke Extract Fans, Speed:1450 RPM, Installed Power:2.2 KW, Max. Air Flow:21550 m³/h, Noise:53 dB
1 241 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-O-REV-29-2/4T SODECA Smoke Extract Fans THT/IMP-O-REV-29-2/4T icx-SODECA-THT/IMP-O-REV-29-2/4T
SODECA THT/IMP-O-REV-29-2/4T, Smoke Extract Fans, Speed:2780/1380 RPM, Installed Power:0.55/0.15 KW, Max. Air Flow:3400/1690 m³/h, Noise:38/22 dB
1 67 KG Yes, (The set sales target for the product by the required date)
