Greenhouse

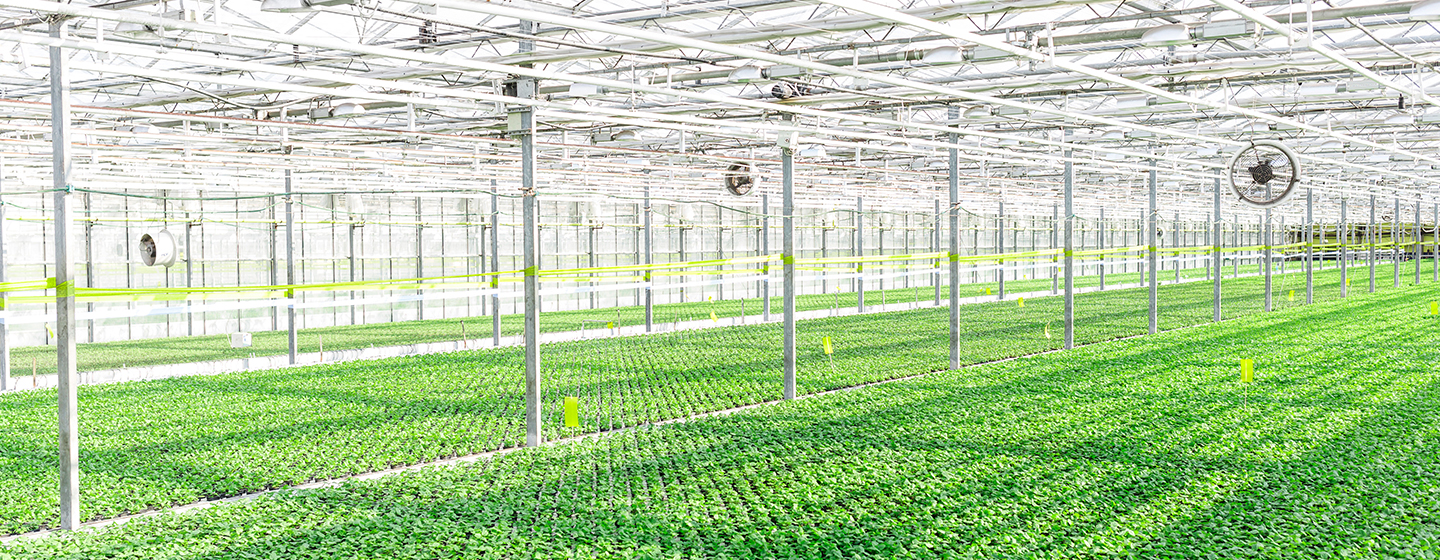

In greenhouses, fans circulate air to provide the necessary growth environment for crops. Fans achieve precise control of temperature, humidity, CO₂ concentration and airflow distribution through active ventilation, which directly affects crop growth efficiency and pest control. Current regulatory requirements and increasing energy costs are driving the market to seek innovative energy-saving solutions.



Ventilation and Coling Fan

1. Type selection

Axial fan:

  • Advantages: large air volume, low energy consumption, suitable for horizontal air circulation (such as side wall installation).
  • Scenario: multi-span greenhouse, large-area single greenhouse.

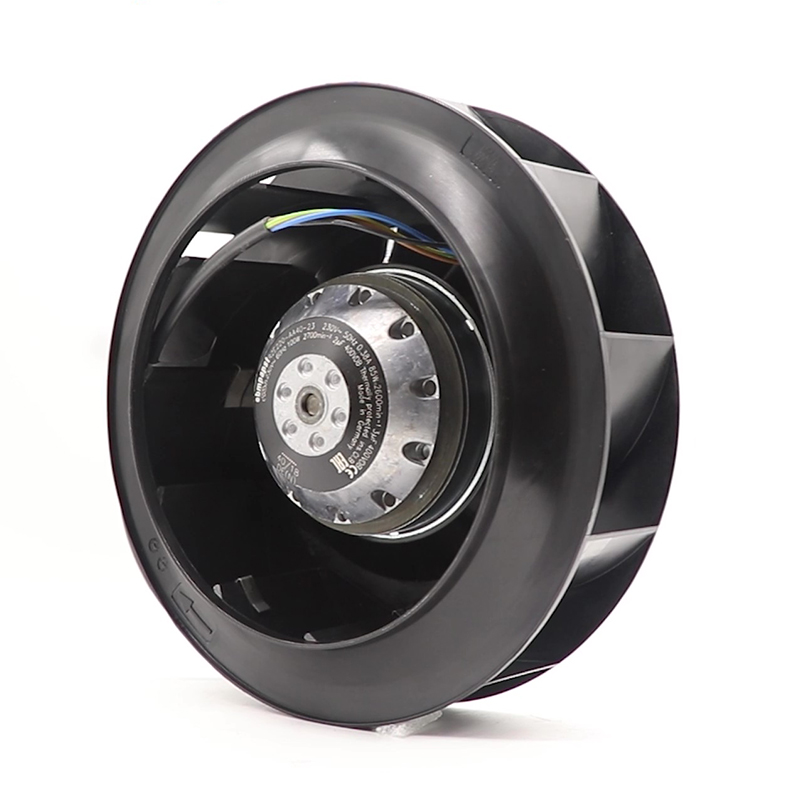

Centrifugal fan:

  • Advantages: high wind pressure, suitable for long-distance air supply or in conjunction with wet curtains/heating ducts.
  • Scenario: high-ceiling greenhouse (story height>6m), winter hot air heating system.

2. Key parameters

  • Air volume calculation: greenhouse volume × ventilation times (1-2 times/minute in summer, 0.2-0.5 times/minute in winter).
  • Energy efficiency ratio: EC (electronic commutation) motor fan is selected, which saves 30%-50% energy compared to traditional AC motors.

3. Installation strategy

  • Horizontal airflow: The fan and wet curtain are installed opposite to each other to form a through-type airflow (suitable for greenhouses with a length of <40m).
  • Vertical airflow: A circulation fan is installed on the top to break the thermal stratification (suitable for greenhouses with a height of >5m).
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-56-4T-1.5 IE3 SODECA Smoke Extract Fans HTMF-56-4T-1.5 IE3 icx-SODECA-HTMF-56-4T-1.5 IE3
SODECA HTMF-56-4T-1.5 IE3, Smoke Extract Fans, Speed:1430 RPM, Installed Power:1.1 KW, Max. Air Flow:11530 m³/h, Noise:55 dB
1 79 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-LS-REV-40-2/4T-2 SODECA Smoke Extract Fans THT/IMP-LS-REV-40-2/4T-2 icx-SODECA-THT/IMP-LS-REV-40-2/4T-2
SODECA THT/IMP-LS-REV-40-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:9250/4605 m³/h, Noise:53/37 dB
1 85 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-LS-REV-38-2/4T-2 SODECA Smoke Extract Fans THT/IMP-LS-REV-38-2/4T-2 icx-SODECA-THT/IMP-LS-REV-38-2/4T-2
SODECA THT/IMP-LS-REV-38-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:8200/4080 m³/h, Noise:51/35 dB
1 77 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-O-REV-35-2/4T SODECA Smoke Extract Fans THT/IMP-O-REV-35-2/4T icx-SODECA-THT/IMP-O-REV-35-2/4T
SODECA THT/IMP-O-REV-35-2/4T, Smoke Extract Fans, Speed:2905/1445 RPM, Installed Power:0.85/0.20 KW, Max. Air Flow:5940/2955 m³/h, Noise:51/35 dB
1 70 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-REV-45-2/4T-2 SODECA Smoke Extract Fans THT/IMP-C-REV-45-2/4T-2 icx-SODECA-THT/IMP-C-REV-45-2/4T-2
SODECA THT/IMP-C-REV-45-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:10300/5125 m³/h, Noise:56/40 dB
1 131 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-UNI-45-2/4T-3 SODECA Smoke Extract Fans THT/IMP-C-UNI-45-2/4T-3 icx-SODECA-THT/IMP-C-UNI-45-2/4T-3
SODECA THT/IMP-C-UNI-45-2/4T-3, Smoke Extract Fans, Speed:2885/1435 RPM, Installed Power:2.20/0.60 KW, Max. Air Flow:13200/6570 m³/h, Noise:58/42 dB
1 133 KG Yes, (The set sales target for the product by the required date)
