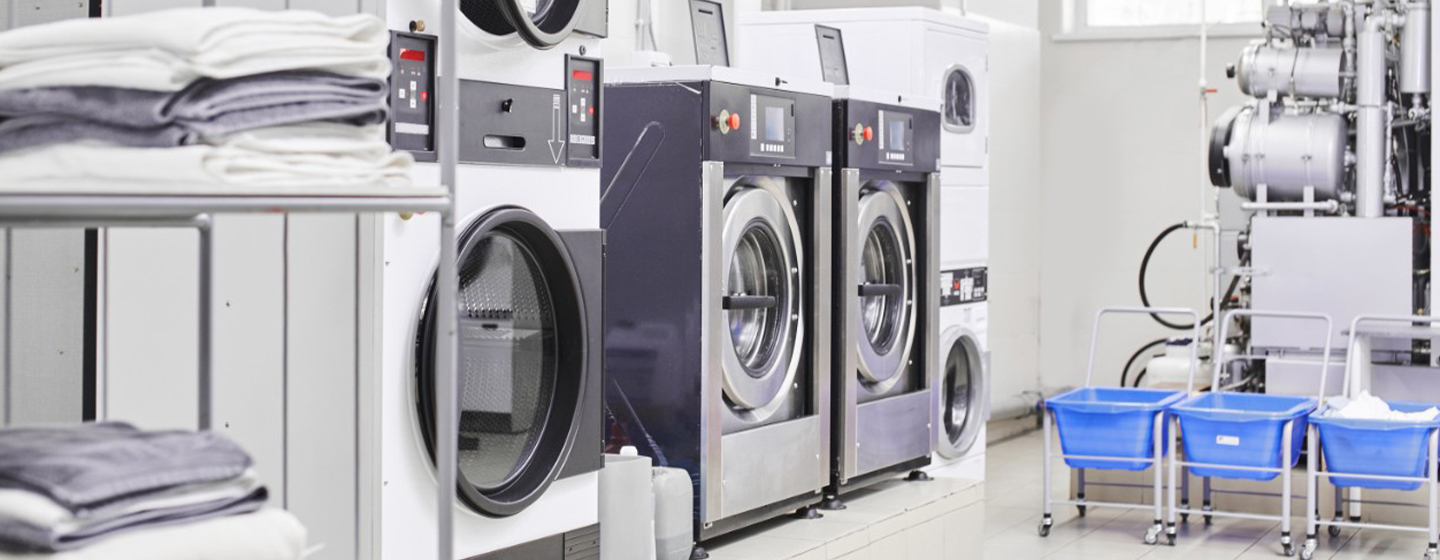

Commercial Dryers

The fan is the core component of a commercial clothes dryer to achieve efficient drying, uniform heating, energy saving and consumption reduction, and equipment protection. It directly affects drying efficiency, clothing care quality, and equipment reliability.

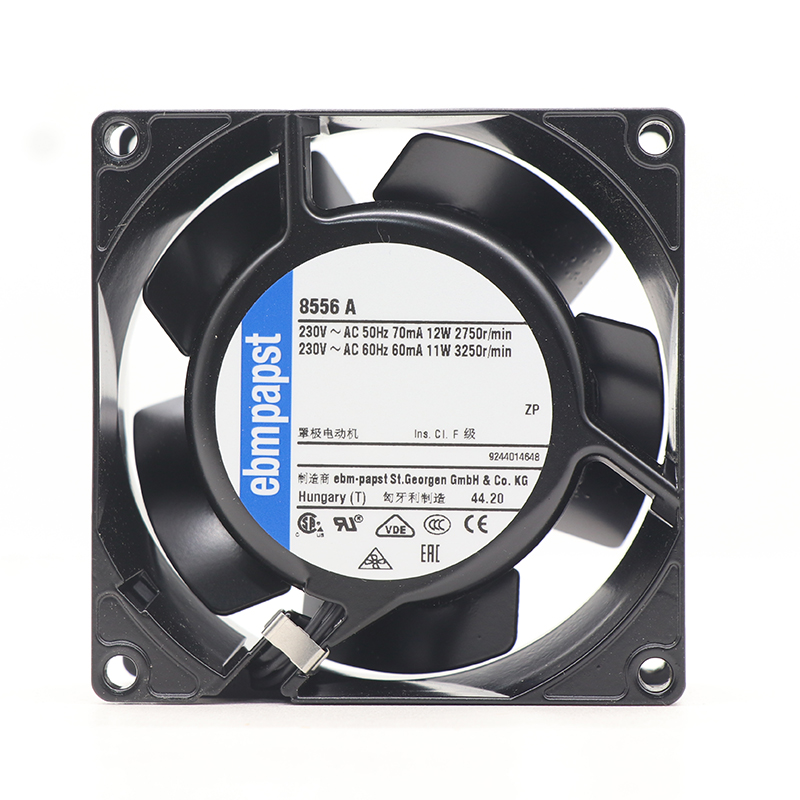

Ventilation and Coling Fan

  1. Forced air circulation to accelerate water evaporation



  • Hot air circulation system: The fan drives hot air (50-80℃) to flow through the clothes in the drum at high speed, quickly removes moisture through forced convection, and shortens the drying cycle (such as completing a 15kg load in 30 minutes).
    • Data: For every 10% increase in air volume, the drying efficiency increases by 8%-12%.
    • Case: Commercial heat pump dryers (such as Miele PT7136) achieve energy efficiency A+++ level through centrifugal fans (air volume > 800m³/h).
  • Humidity gradient control: The fan cooperates with the humidity sensor to dynamically adjust the air volume. The initial high wind speed (> 10m/s) quickly removes surface moisture, and the speed is reduced in the later stage to avoid over-drying.



  1. Evenly distribute the temperature to protect the clothes



  • Equal flow design: The fan and the air guide plate work together to eliminate the dead corners of the air flow in the drum (temperature difference < 5℃), and prevent local overheating from causing clothing shrinkage or fiber damage.
    • Technical points: CFD simulation optimizes the air duct, and the air flow uniformity is improved to ±2℃.
  • Intelligent temperature control: The PID algorithm adjusts the fan speed and heating power according to the material of the clothing (such as cotton, chemical fiber, wool) (such as the wool mode temperature limit of 50℃±2℃).



  1. Efficient energy utilization



  • Heat pump system synergy: The fan drives the air to flow through the evaporator and condenser to recover the waste heat (energy efficiency ratio COP>5.0), which saves 60%-70% energy compared with traditional electric heating dryers.
  • Variable frequency speed regulation: The EC variable frequency fan adjusts the speed according to the load (such as 30% speed reduction at half load), reducing energy consumption by 20%-30%.



  1. Equipment protection and maintenance



  • Dust prevention and filtration: A multi-layer filter (metal + HEPA) is configured in front of the fan to intercept cotton wool and particulate matter (filtration efficiency>99%) to prevent blockage of the air duct or fire.
  • High temperature resistance and long life: Commercial fans use high temperature resistant bearings (>120℃) and anti-rust coatings (such as Teflon), and MTBF (mean time between failures) is>100,000 hours.
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-90-4T-5.5 IE3 SODECA Smoke Extract Fans HTMF-90-4T-5.5 IE3 icx-SODECA-HTMF-90-4T-5.5 IE3
SODECA HTMF-90-4T-5.5 IE3, Smoke Extract Fans, Speed:1445 RPM, Installed Power:4 KW, Max. Air Flow:35200 m³/h, Noise:71 dB
1 208 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-71-4/8T-3 SODECA Smoke Extract Fans HTMF-71-4/8T-3 icx-SODECA-HTMF-71-4/8T-3
SODECA HTMF-71-4/8T-3, Smoke Extract Fans, Speed:1430/705 RPM, Installed Power:2.20/0.45 KW, Max. Air Flow:18490/9120 m³/h, Noise:63/48 dB
1 125 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-6T-1 IE3 SODECA Smoke Extract Fans HTMF-63-6T-1 IE3 icx-SODECA-HTMF-63-6T-1 IE3
SODECA HTMF-63-6T-1 IE3, Smoke Extract Fans, Speed:935 RPM, Installed Power:0.75 KW, Max. Air Flow:11355 m³/h, Noise:49 dB
1 95 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-4T-3IE3 SODECA Smoke Extract Fans HTMF-63-4T-3IE3 icx-SODECA-HTMF-63-4T-3IE3
SODECA HTMF-63-4T-3IE3, Smoke Extract Fans, Speed:1450 RPM, Installed Power:2.2 KW, Max. Air Flow:18045 m³/h, Noise:59 dB
1 108 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-LS-REV-40-2/4T-2 SODECA Smoke Extract Fans THT/IMP-LS-REV-40-2/4T-2 icx-SODECA-THT/IMP-LS-REV-40-2/4T-2
SODECA THT/IMP-LS-REV-40-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:9250/4605 m³/h, Noise:53/37 dB
1 85 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-REV-40-2/4T-2 SODECA Smoke Extract Fans THT/IMP-C-REV-40-2/4T-2 icx-SODECA-THT/IMP-C-REV-40-2/4T-2
SODECA THT/IMP-C-REV-40-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:9250/4605 m³/h, Noise:52/36 dB
1 100 KG Yes, (The set sales target for the product by the required date)
