Air Purifier Fan | Purification + Ventilation 2-in-1 Device

Home HVAC Ventilation Equipment Mechanical Ventilation Air Purifying Fan

Air Purifying Fan

The air purifier fan combines ventilation and purification functions, making it a multifunctional air product promoted in partnership with ICX. Its aesthetically pleasing and practical design makes it suitable for offices, homes, and public spaces, providing a fresh, clean air experience.

Results: 17

Applied Filters:

HVAC

Ventilation Equipment

Mechanical Ventilation

Air Purifying Fan

Reset Apply

Product

Brand	Title	Connection Size	Power	Rated Voltage	Air Volume	Static Pressure	Noise	Product Size
ICX	K-BP2K BP Series	Air Inlet：443x280mm Air Outlet：300x156mm	180 W	380 V	2600/2000/1000 m³/h	350 Pa	40 dB
ICX	K-BP3K BP Series	Air Inlet：503x302mm Air Outlet：343x156mm	320 W	380 V	3200/2500/1500 m³/h	400 Pa	42 dB
ICX	K-BP4K BP Series	Air Inlet：543x322mm Air Outlet：343x171mm	550 W	380 V	4200/3000/2000 m³/h	450 Pa	45 dB
ICX	K-BP5K BP Series	Air Inlet：563x377mm Air Outlet：343x256mm	800 W	380 V	5200/4000/2500 m³/h	500 Pa	48 dB
ICX	K-BP6K BP Series	Air Inlet：583x412mm Air Outlet：368x290mm	1100 W	380 V	6200/5000/3000 m³/h	600 Pa	50 dB
ICX	K-BP7K BP Series	Air Inlet：603x437mm Air Outlet：394x290mm	1500 W	380 V	7200/6000/3500 m³/h	650 Pa	52 dB

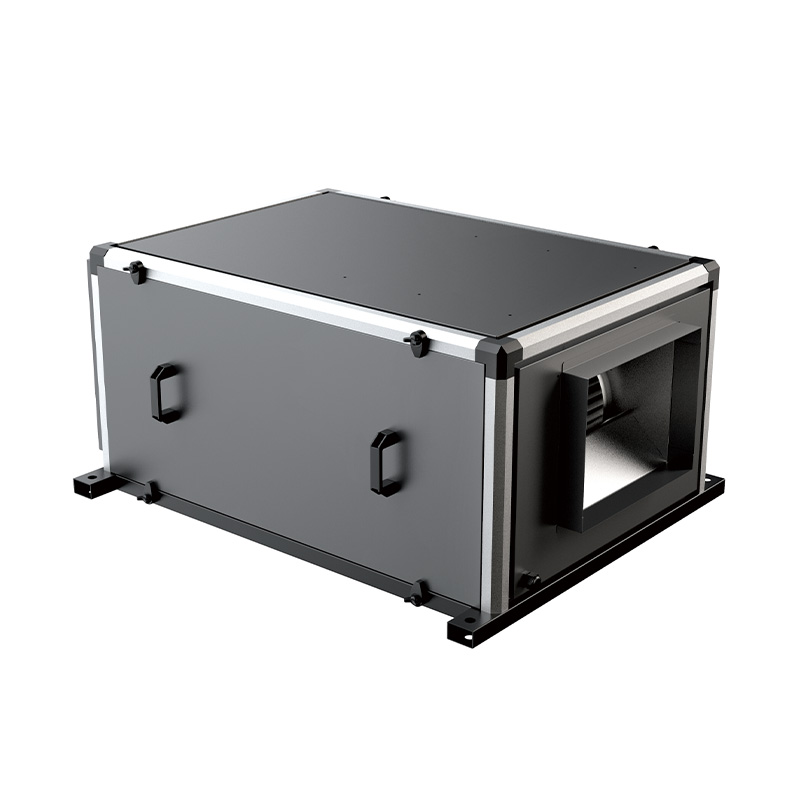

ICX	K-BP8K BP Series	Air Inlet：653x452mm Air Outlet：394x300mm	1500 W	380 V	8000/6500/4000 m³/h	700 Pa	54 dB
ICX	K-BP9K BP Series	Air Inlet：653x487mm Air Outlet：394x300mm	1800 W	380 V	9000/7200/4500 m³/h	750 Pa	57 dB
ICX	K-BP10K BP Series	Air Inlet：703x487mm Air Outlet：394x300mm	2200 W	380 V	10000/8000/5000 m³/h	800 Pa	59 dB
ICX	K-BP13K BP Series	Air Inlet：813x592mm Air Outlet：453x330mm	3000 W	380 V	13000/10000/6000 m³/h	850 Pa	66 dB
ICX	K-BP16K BP Series	Air Inlet：813x622mm Air Outlet：453x330mm	4000 W	380 V	16000/13000/7500 m³/h	900 Pa	68 dB
ICX	K-FP150M FPM Purifying supply Fan	100 mm	40 W	230 V	150 m³/h	150 Pa	31 dB	520x395x118 mm
ICX	K-FP350M FPM Purifying supply Fan	150 mm	70 W	230 V	350 m³/h	200 Pa	33 dB	520x395x185 mm
ICX	K-FP550M FPM Purifying supply Fan	200 mm	120 W	230 V	550 m³/h	240 Pa	35 dB	520x395x235 mm

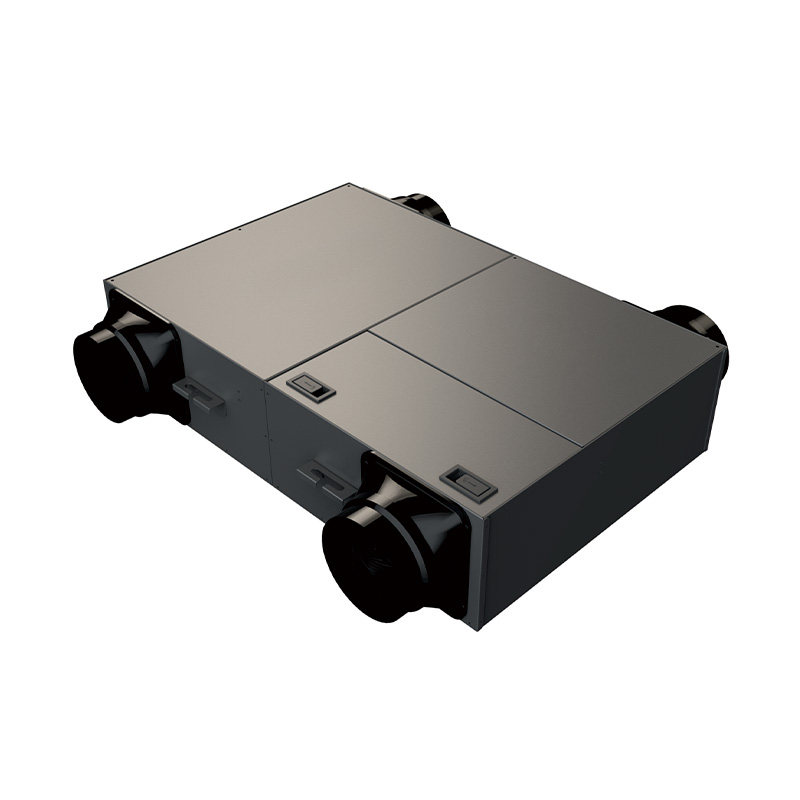

ICX	K-FT150M FTM Purifying Supply Fan	100 mm	80 W	220 V	150 m³/h	150 Pa	28 dB	790x520x118 mm
ICX	K-FT350M FTM Purifying Supply Fan	150 mm	140 W	220 V	350m³/h	200 Pa	38 dB	790x520x185 mm
ICX	K-FT550M FTM Purifying Supply Fan	200 mm	240 W	220 V	550m³/h	240 Pa	40 dB	790x520x235 mm
