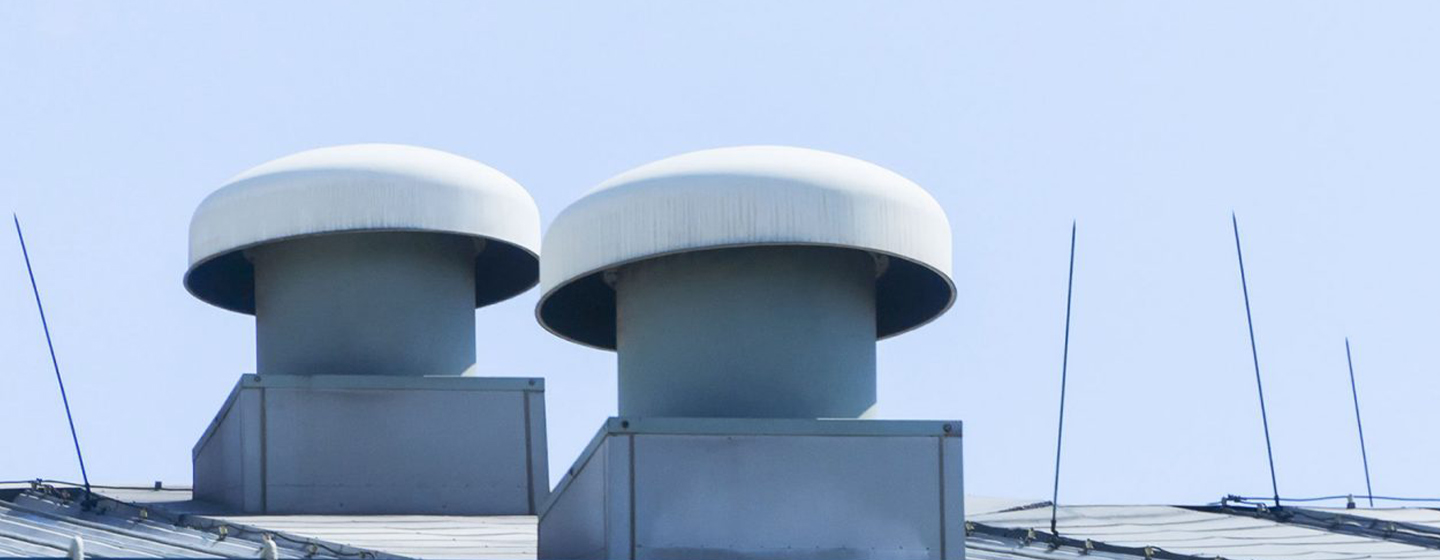

Roof Fans

Roof fans are ventilation equipment installed on the top of buildings to actively exhaust indoor hot air and exhaust gas or introduce fresh air to adjust indoor air quality, temperature and humidity. Its core value lies in energy-saving ventilation and improving the environment.



Ventilation and Coling Fan

Enhanced Natural Ventilation

Utilizes thermal pressure difference (hot air rising effect) and wind pressure difference (outdoor wind) to improve ventilation efficiency by 30% - 50%.

Low - energy Operation

  • Unpowered Turbine Fan:Zero power consumption, relying on natural wind (suitable for light workshops and warehouses).
  • EC Variable Frequency Fan:Adjusts speed on demand, saving 40% - 60% energy at partial load.

Heat Recovery Potential

Some models integrate heat exchangers to recover exhaust heat (efficiency 50% - 70%) and preheat fresh air.

Save Floor Space

Installed on the roof, does not occupy indoor or floor space, especially suitable for large - span factories and warehouses (such as logistics centers can use 100% of the floor area to store goods).

Simplified Pipeline Design

Exhaust air directly through the roof, reducing complex duct laying (saving 30% - 50% installation cost).

Wide Coverage

A single fan can cover an area of 500 - 2000㎡ (depending on the air volume) and evenly exhaust hot air.

Strong Weather Resistance

  • Rainproof Design:Double - layer waterproof cover and diversion structure (IP54) to prevent rainwater backflow.
  • Corrosion - resistant Material:Fiberglass reinforced plastic (FRP) or stainless steel shell, suitable for coastal high salt fog environment.

Explosion - proof and Safe

ATEX certified explosion - proof motor (Ex d IIB T4), suitable for inflammable and explosive places such as chemical industry and oil depot.

Silent Operation

Low speed design + shock - absorbing base, noise ≤ 65dB (A), suitable for sensitive areas such as hospitals and schools.

Modular Design

Impeller and motor can be quickly disassembled and replaced (MTTR < 1 hour), reducing downtime.

Low Maintenance Requirements

  • Belt - free design (direct drive motor) eliminates the trouble of regular belt replacement.
  • The dust filter can be washed and reused, reducing maintenance costs by 50%.
  • Long - life components: double ball bearing motor life > 80,000 hours (ordinary motor about 40,000 hours).
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-80-6T-2IE3 SODECA Smoke Extract Fans HTMF-80-6T-2IE3 icx-SODECA-HTMF-80-6T-2IE3
SODECA HTMF-80-6T-2IE3, Smoke Extract Fans, Speed:950 RPM, Installed Power:1.5 KW, Max. Air Flow:22165 m³/h, Noise:55 dB
1 185 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-4T-3IE3 SODECA Smoke Extract Fans HTMF-63-4T-3IE3 icx-SODECA-HTMF-63-4T-3IE3
SODECA HTMF-63-4T-3IE3, Smoke Extract Fans, Speed:1450 RPM, Installed Power:2.2 KW, Max. Air Flow:18045 m³/h, Noise:59 dB
1 108 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-4/8T-1.5 SODECA Smoke Extract Fans HTMF-63-4/8T-1.5 icx-SODECA-HTMF-63-4/8T-1.5
SODECA HTMF-63-4/8T-1.5, Smoke Extract Fans, Speed:1420/695 RPM, Installed Power:1.10/0.25 KW, Max. Air Flow:13930/6800 m³/h, Noise:57/41 dB
1 94 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-56-6T-0.75 SODECA Smoke Extract Fans HTMF-56-6T-0.75 icx-SODECA-HTMF-56-6T-0.75
SODECA HTMF-56-6T-0.75, Smoke Extract Fans, Speed:930 RPM, Installed Power:0.55 KW, Max. Air Flow:8255 m³/h, Noise:43 dB
1 80 KG No
SODECA HTMF-56-4T-1IE3 SODECA Smoke Extract Fans HTMF-56-4T-1IE3 icx-SODECA-HTMF-56-4T-1IE3
SODECA HTMF-56-4T-1IE3, Smoke Extract Fans, Speed:1410 RPM, Installed Power:0.75 KW, Max. Air Flow:10640 m³/h, Noise:54 dB
1 79 KG Yes, (The set sales target for the product by the required date)
SODECA Cl-50-4/8T SODECA Smoke Extract Fans Cl-50-4/8T icx-SODECA-Cl-50-4/8T
SODECA Cl-50-4/8T, Smoke Extract Fans, Speed:1395/650 RPM, Installed Power:1.20/0.30 KW, Max. Air Flow:6050/2820 m³/h, Noise:64/47 dB
1 83 KG Yes, (The set sales target for the product by the required date)
