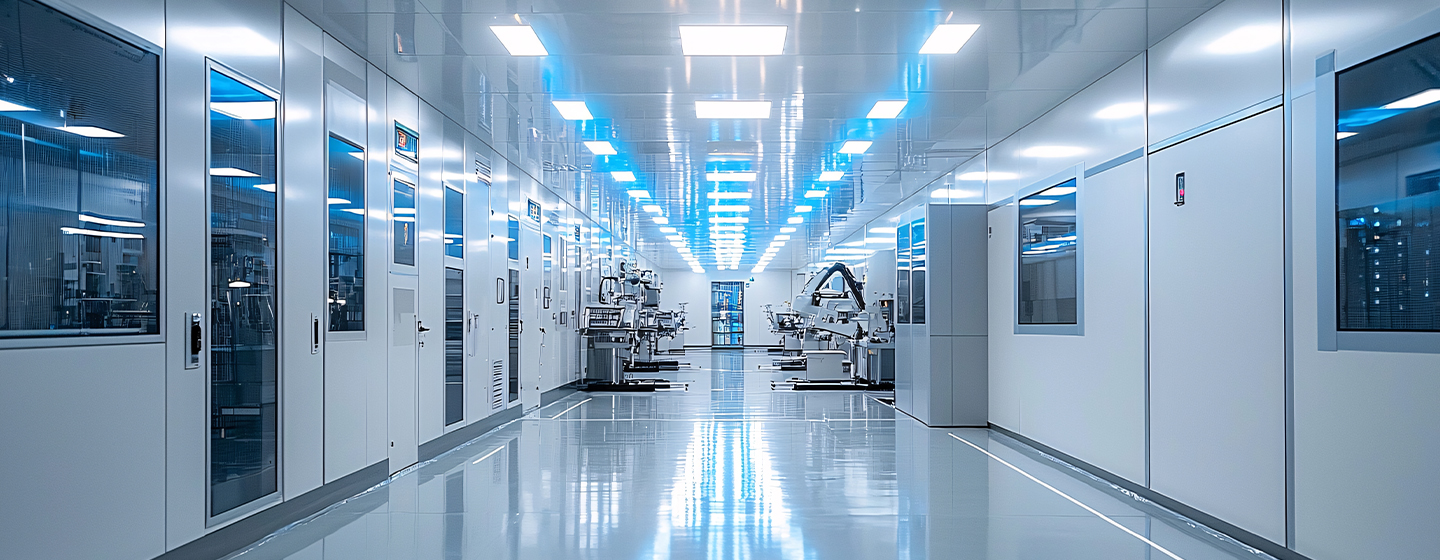

Clean Room

Clean room, also known as a sterile room, is a special type of air purification equipment. Its main function is to remove tiny particles and harmful substances from the indoor air to make the air purer. Clean room applications have extremely high requirements for their ventilation systems, including high air exchange rates, sufficient pressure, precise temperature and humidity control, and consistent air quality.



Ventilation and Coling Fan

  1. Clean air delivery



  • High-efficiency filtration support: The fan provides sufficient static pressure (500-1200Pa) to ensure that the air penetrates the HEPA/ULPA filter (H13-H14 level), and the filtration efficiency of 0.3μm particles is ≥99.99%.
  • Data: ISO 5 clean room requires ventilation frequency ≥500 times/h, and the fan air volume is as high as 10,000-50,000m³/h.
  • Laminar flow control: The fan cooperates with the flow-equalizing membrane/orifice plate to form a unidirectional vertical laminar flow (wind speed 0.45±0.1m/s) to avoid turbulence and particle diffusion.



  1. Pressure difference and airflow organization



  • Gradient pressure difference maintenance: The fan adjusts the pressure difference of different cleanliness level areas (such as core area +15Pa, buffer area +10Pa) to prevent low cleanliness air from backflowing.
  • Directional discharge of pollutants: The exhaust fan cooperates with the fresh air system to quickly dilute VOCs, dust and other pollutants (such as the ventilation rate of the pharmaceutical workshop ≥20 times/h).



  1. Precise control of temperature and humidity



  • To ensure constant temperature and humidity: The fan drives the air to flow through the cooling/heating coil and humidifier to maintain the temperature ±0.5℃ and humidity ±5% RH (such as chip lithography workshop).
  • Process heat dissipation: For high-heat equipment (such as laser cutting machines), the fan forces heat dissipation to avoid local temperature rise affecting accuracy.
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-80-6T-2IE3 SODECA Smoke Extract Fans HTMF-80-6T-2IE3 icx-SODECA-HTMF-80-6T-2IE3
SODECA HTMF-80-6T-2IE3, Smoke Extract Fans, Speed:950 RPM, Installed Power:1.5 KW, Max. Air Flow:22165 m³/h, Noise:55 dB
1 185 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-80-4T-4 IE3 SODECA Smoke Extract Fans HTMF-80-4T-4 IE3 icx-SODECA-HTMF-80-4T-4 IE3
SODECA HTMF-80-4T-4 IE3, Smoke Extract Fans, Speed:1455 RPM, Installed Power:3 KW, Max. Air Flow:27750 m³/h, Noise:65 dB
1 163 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-4T-1.5 IE3 SODECA Smoke Extract Fans HTMF-63-4T-1.5 IE3 icx-SODECA-HTMF-63-4T-1.5 IE3
SODECA HTMF-63-4T-1.5 IE3, Smoke Extract Fans, Speed:1430 RPM, Installed Power:1.1 KW, Max. Air Flow:13930 m³/h, Noise:57 dB
1 94 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-UNI-71-4T-4 IE3 SODECA Smoke Extract Fans THT/IMP-C-UNI-71-4T-4 IE3 icx-SODECA-THT/IMP-C-UNI-71-4T-4 IE3
SODECA THT/IMP-C-UNI-71-4T-4 IE3, Smoke Extract Fans, Speed:1455 RPM, Installed Power:3 KW, Max. Air Flow:28550 m³/h, Noise:65 dB
1 279 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-REV-45-2/4T-2 SODECA Smoke Extract Fans THT/IMP-C-REV-45-2/4T-2 icx-SODECA-THT/IMP-C-REV-45-2/4T-2
SODECA THT/IMP-C-REV-45-2/4T-2, Smoke Extract Fans, Speed:2875/1430 RPM, Installed Power:1.50/0.37 KW, Max. Air Flow:10300/5125 m³/h, Noise:56/40 dB
1 131 KG Yes, (The set sales target for the product by the required date)
SODECA THT/IMP-C-REV-31-2/4T SODECA Smoke Extract Fans THT/IMP-C-REV-31-2/4T icx-SODECA-THT/IMP-C-REV-31-2/4T
SODECA THT/IMP-C-REV-31-2/4T, Smoke Extract Fans, Speed:2780/1380 RPM, Installed Power:0.55/0.15 KW, Max. Air Flow:3840/1910 m³/h, Noise:50/34 dB
1 63 KG Yes, (The set sales target for the product by the required date)
