Fuse disconnect switch

Home Industrial Control Medium and Low Voltage Power Distribution Load Isolation Switch Fuse Disconnect Switch

Fuse-type disconnect switches integrate isolation and short-circuit protection functions. ICX provides products adapted to different fuses. While isolating the power supply, it can quickly cut off the short-circuit fault current. It is widely used in branch circuit protection of industrial distribution boxes and low-voltage distribution cabinets.

Results: 680

Applied Filters:

Industrial Control

Medium and Low Voltage Power Distribution

Load Isolation Switch

Fuse Disconnect Switch

Reset Apply

Product

Brand	Title	Installation	Rated Voltage	Poles	Rated Current	How It Works	Handle Type	On/Off Load Type	Fuse Specifications	Series
TENGEN	TENGEN HR6-250/31 200A Fuse Disconnector	Fixed	380/400/415VAC	3P	250A	Frontal Operation	-	Switching motor load	-	HR6

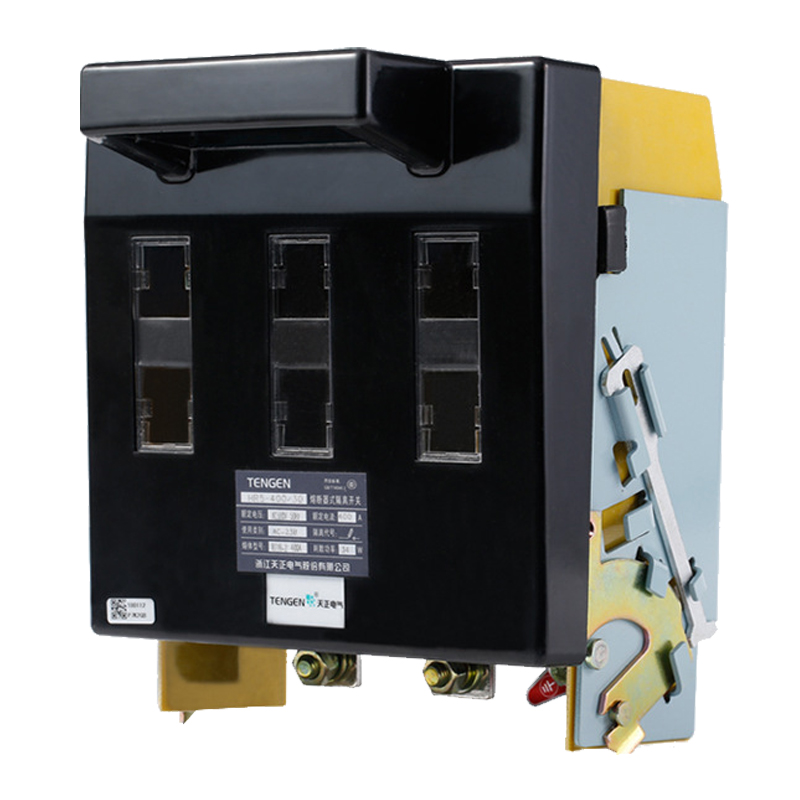

TENGEN	TENGEN HR5-400/31 200A Fuse Disconnector	Fixed	380VAC	3P	400A	Frontal Operation	-	Switching motor load	RT16-2, RT16-A2	HR5
TENGEN	TENGEN HR3BX-600/32 500A Fuse Disconnector	Fixed	380VAC	3P	600A	Frontal Operation	External operating handle	Mixed load switching	RT0-600	HR3

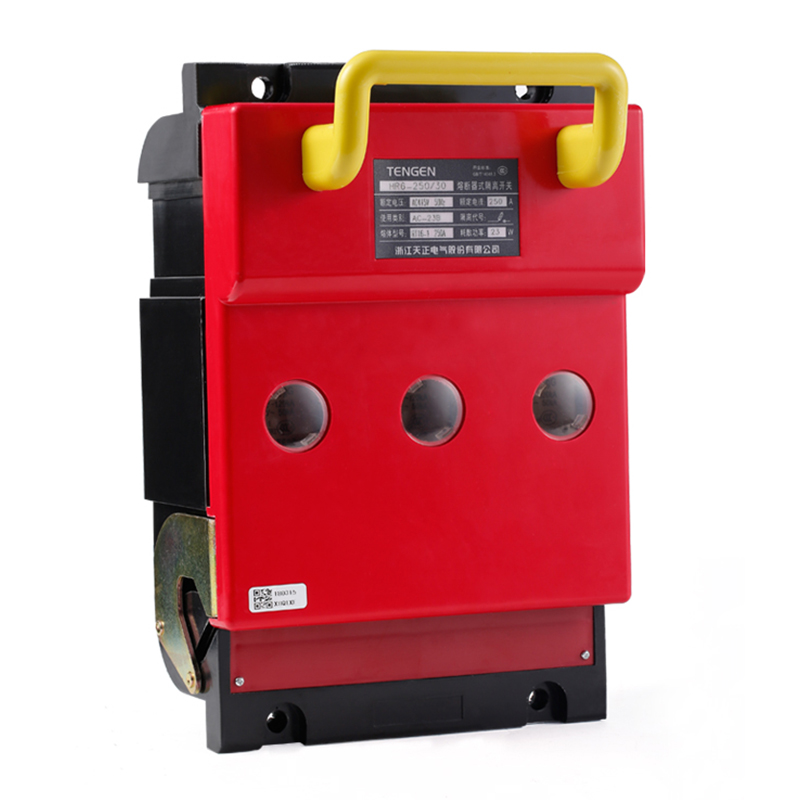

TENGEN	TENGEN HR6-250/31 100A(U) Fuse Disconnector	Fixed	380/400/415VAC	3P	250A	Frontal Operation	-	Switching motor load	RT16-1	HR6

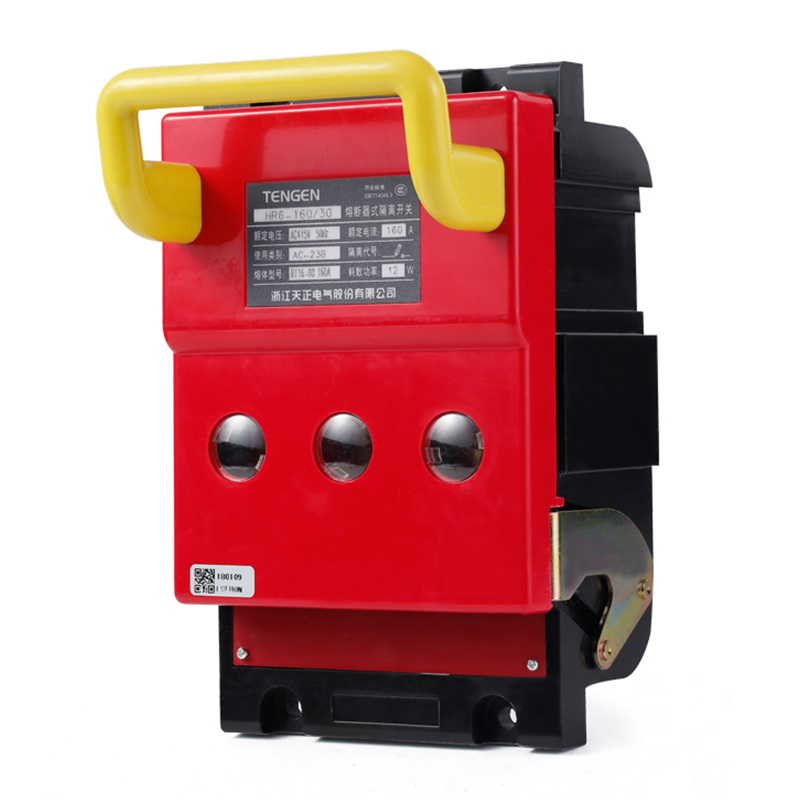

TENGEN	TENGEN HR6-160/30 80A(U) Fuse Disconnector	Fixed	380/400/415VAC	3P	160A	Frontal Operation	-	Switching motor load	RT16-00	HR6
TENGEN	TENGEN HH15(QSA)-800/31 630A Fuse Disconnector	Fixed	380VAC	3P	800A	Frontal Operation	External operating handle	Switching resistive loads	RT16-3	HH15
TENGEN	TENGEN HH15(QSA)-800/30 800A Fuse Disconnector	Fixed	380VAC	3P	800A	Frontal Operation	Operating handle inside the cabinet	Switching resistive loads	RT16-3	HH15
TENGEN	TENGEN HH15(QSA)-630/40 500A Fuse Disconnector	Fixed	380VAC	4P	630A	Frontal Operation	External operating handle	Switching resistive loads	RT16-3	HH15
TENGEN	TENGEN HH15(QSA)-630/30 400A Fuse Disconnector	Fixed	380VAC	3P	630A	Frontal Operation	External operating handle	Switching resistive loads	RT16-3	HH15
TENGEN	TENGEN HH15(QSA)-400/32 200A Fuse Disconnector	Fixed	380VAC	3P	400A	Frontal Operation	External operating handle	Switching resistive loads	RT16-2	HH15
TENGEN	TENGEN HH15(QSA)-400/31 200A Fuse Disconnector	Fixed	380VAC	3P	400A	Frontal Operation	External operating handle	Switching resistive loads	RT16-2	HH15
TENGEN	TENGEN HH15(QSA)-400/31 400A Fuse Disconnector	Fixed	380VAC	3P	400A	Frontal Operation	External operating handle	Switching resistive loads	RT16-2	HH15
TENGEN	TENGEN HH15(QSA)-250/3N 250A Fuse Disconnector	Fixed	380VAC	3P	250A	Frontal Operation	Operating handle inside the cabinet	Switching resistive loads	RT16-1	HH15
TENGEN	TENGEN HH15(QSA)-250/30 200A Fuse Disconnector	Fixed	380VAC	3P	250A	Frontal Operation	External operating handle	Switching resistive loads	RT16-1	HH15
TENGEN	TENGEN HH15(QSA)-160/30 125A Fuse Disconnector	Fixed	380VAC	3P	160A	Frontal Operation	External operating handle	Switching resistive loads	RT16-00	HH15
TENGEN	TENGEN HH15(QSA)-125/31 16A Fuse Disconnector	Fixed	380/660VAC	3P	125A	Frontal Operation	External operating handle	Switching resistive loads	RT16-00	HH15
TENGEN	TENGEN HH15(QSA)-125/30 100A Fuse Disconnector	Fixed	380/660VAC	3P	125A	Frontal Operation	External operating handle	Switching resistive loads	RT16-00	HH15
TENGEN	TENGEN HR5-100/30 20A AC660V Fuse Isolator Switch	Fixed	380VAC	3P	100A	Frontal Operation	-	Switching motor load	RT16-00, RT16-A00	HR5
TENGEN	TENGEN HR5-200/30 200A Non-fuse Isolating Switch	Fixed	380VAC	3P	200A	Frontal Operation	-	Switching motor load	-	HR5
TENGEN	TENGEN HR5-200/30 80A Fuse Disconnector	Fixed	380VAC	3P	200A	Frontal Operation	-	Switching motor load	RT16-1, RT16-A1	HR5
