简体中文Oil Condensing Technology
In the oil industry, condensation technology is mainly used in oil and gas separation, distillation tower cooling and natural gas processing. Fans become key equipment for improving energy efficiency and reliability by optimizing heat transfer efficiency, maintaining system pressure and controlling emissions.
Recommended Products

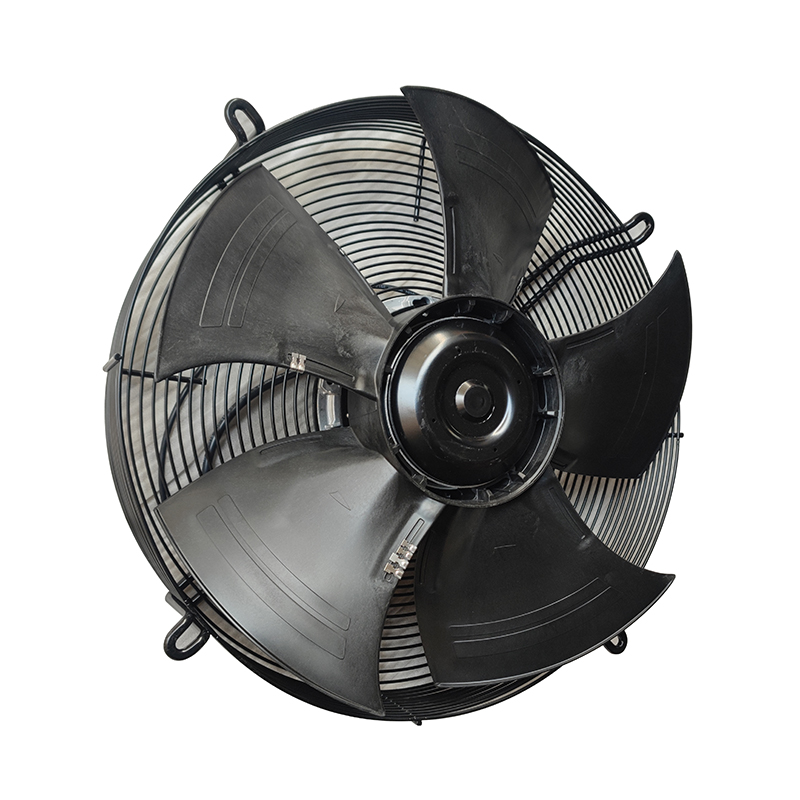

Ventilation and Coling Fan
- Oil and gas condensation at the top of the distillation tower
- Air cooler drive: The fan drives the air to flow through the air cooler (fin tube bundle) to cool the high-temperature oil and gas (120-200℃) at the top of the fractionation tower into liquid (40-60℃), replacing the traditional water cooling system (saving more than 90% water).
- Data: Each air cooler requires a fan air volume of 50,000-200,000m³/h and a static pressure of 300-800Pa.
- Case: A refinery atmospheric and vacuum unit air cooler group (12 Axial fans) saves 1.2 million tons of water annually and reduces energy consumption by 30%.
- Natural gas liquids (NGL) recovery
- Low-temperature condensation: In the natural gas processing plant, the fan drives the propane refrigeration system (-40℃) to condense and separate the heavy hydrocarbons (C3+) in the natural gas, thereby increasing the recovery rate of light hydrocarbons (＞95%).
- Technical points: low-temperature resistant centrifugal fan (material: 316L stainless steel) + frequency conversion control (temperature fluctuation ±1℃).
- Oil and gas field associated gas processing
- Compression and condensation: The screw compressor pressurizes the associated gas (methane content 50%-80%) to 2-5MPa, and separates the condensate oil after cooling by the air cooler (recovery rate > 90%).
- Solution: High-pressure centrifugal fan (static pressure ≥ 1500Pa) + cyclone separator, adapted to the high dust environment in the desert.
- Environmental protection and safety
- VOCs recovery: The fan transports volatile organic compounds (VOCs) from the storage tank to the condensation + adsorption device, with a recovery efficiency of > 95% (in accordance with GB 31570-2015 standard).
- Explosion-proof control: ATEX-certified explosion-proof fans (Ex d IIB T4) are used in flammable and explosive areas (such as oil and gas processing plants).
Recommended brand
Product recommendation
| Image | Brand | Title | Model | Order Number | Description | Min. Order Quantity | Weight | Discount |
|---|---|---|---|---|---|---|---|---|
 |
SODECA | HTMF-80-4/8T-5.5 SODECA Smoke Extract Fans | HTMF-80-4/8T-5.5 | icx-SODECA-HTMF-80-4/8T-5.5 | SODECA HTMF-80-4/8T-5.5, Smoke Extract Fans, Speed：1450/715 RPM, Installed Power：3.80/1.00 KW, Max. Air Flow：30330/14950 m³/h, Noise：66/51 dB |
1 | 195 KG | Yes, (The set sales target for the product by the required date) |
|
|
SODECA | HTMF-63-4T-2IE3 SODECA Smoke Extract Fans | HTMF-63-4T-2IE3 | icx-SODECA-HTMF-63-4T-2IE3 | SODECA HTMF-63-4T-2IE3, Smoke Extract Fans, Speed：1435 RPM, Installed Power：1.5 KW, Max. Air Flow：15630 m³/h, Noise：58 dB |
1 | 96 KG | Yes, (The set sales target for the product by the required date) |
|
|
SODECA | HTMF-63-4/8T-1.5 SODECA Smoke Extract Fans | HTMF-63-4/8T-1.5 | icx-SODECA-HTMF-63-4/8T-1.5 | SODECA HTMF-63-4/8T-1.5, Smoke Extract Fans, Speed：1420/695 RPM, Installed Power：1.10/0.25 KW, Max. Air Flow：13930/6800 m³/h, Noise：57/41 dB |
1 | 94 KG | Yes, (The set sales target for the product by the required date) |
|
|
SODECA | HTMF-56-6T-0.75 SODECA Smoke Extract Fans | HTMF-56-6T-0.75 | icx-SODECA-HTMF-56-6T-0.75 | SODECA HTMF-56-6T-0.75, Smoke Extract Fans, Speed：930 RPM, Installed Power：0.55 KW, Max. Air Flow：8255 m³/h, Noise：43 dB |
1 | 80 KG | No |
 |
SODECA | THT/IMP-LS-REV-50-2/4T-6 SODECA Smoke Extract Fans | THT/IMP-LS-REV-50-2/4T-6 | icx-SODECA-THT/IMP-LS-REV-50-2/4T-6 | SODECA THT/IMP-LS-REV-50-2/4T-6, Smoke Extract Fans, Speed：2915/1445 RPM, Installed Power：4.50/1.30 KW, Max. Air Flow：19000/9420 m³/h, Noise：62/46 dB |
1 | 227 KG | Yes, (The set sales target for the product by the required date) |
|
|
SODECA | THT/IMP-LS-REV-29-2/4T SODECA Smoke Extract Fans | THT/IMP-LS-REV-29-2/4T | icx-SODECA-THT/IMP-LS-REV-29-2/4T | SODECA THT/IMP-LS-REV-29-2/4T, Smoke Extract Fans, Speed：2780/1380 RPM, Installed Power：0.55/0.15 KW, Max. Air Flow：3400/1690 m³/h, Noise：40/24 dB |
1 | 55 KG | Yes, (The set sales target for the product by the required date) |
