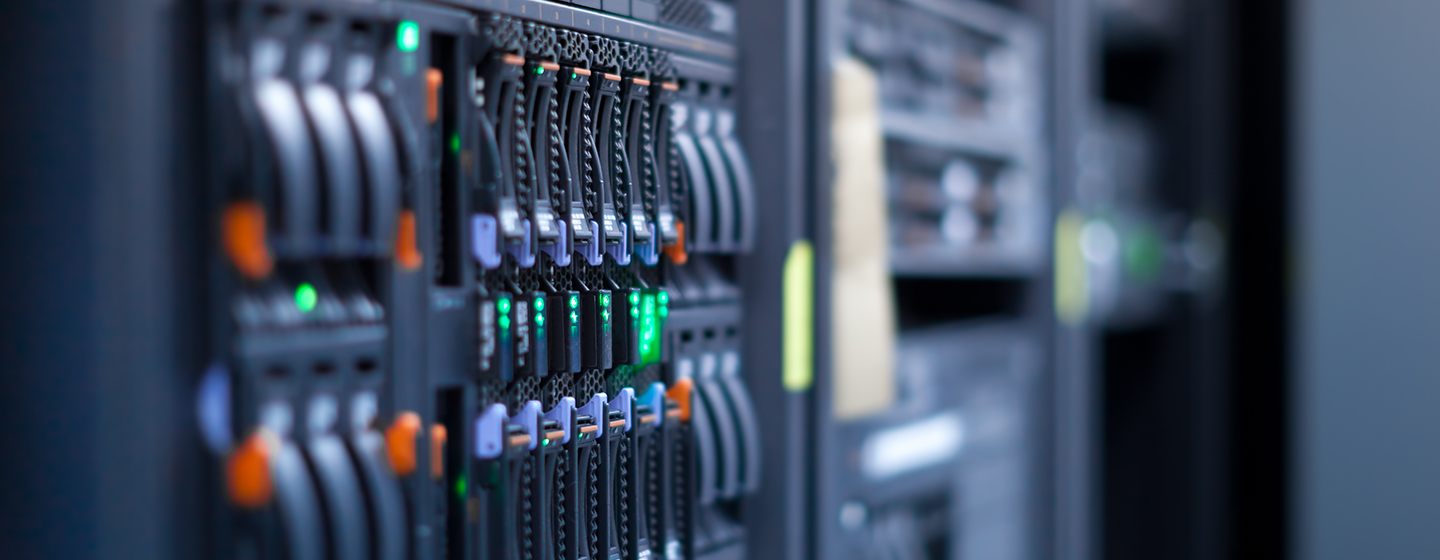

Server Cooling

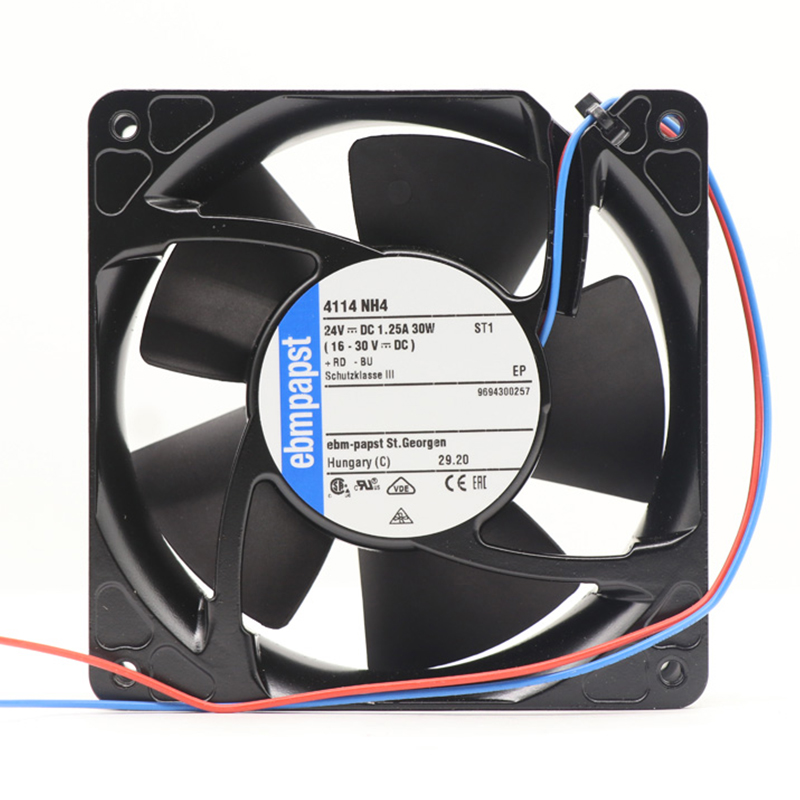

The fan is the core component of airflow drive and heat exchange in the server cooling system. It quickly discharges the heat generated by the server through forced convection, ensuring stable operation of the equipment and extending its life.



Ventilation and Coling Fan

  1. Forced heat dissipation to prevent overheating



  • Heat discharge:
    The server CPU, GPU, power supply and other components have high power density (such as the NVIDIA A100 GPU power consumption of 400W), and the fan drives the cold air to flow through the heat sink to take the heat out of the chassis.
    • Data: A 1U server requires about 50-100 CFM (cubic feet per minute) of air volume when fully loaded. For every 1°C drop in temperature, the life of electronic components is extended by 10%.
  • Avoid frequency reduction:
    Intel/AMD processors will trigger frequency reduction protection when the temperature is >85°C, and the fan maintains the temperature <70°C to ensure stable computing power.



  1. Airflow organization optimization



  • Directional air supply:
    The air shroud in the chassis cooperates with the fan to accurately guide the cold air to flow through high-heat components (such as CPU, memory) and reduce airflow bypass.
    • Effect: After optimization, the temperature difference is reduced from ±5°C to ±1°C, and the heat dissipation efficiency is increased by 30%.
  • Negative pressure balance:
    Multiple fans work together (such as front-to-back, side-in and top-out) to maintain the pressure difference balance inside and outside the chassis to prevent dust backflow.



  1. Redundancy and fault tolerance



  • N+1 configuration:
    Critical servers (such as financial trading hosts) are equipped with redundant fans. In the event of a single failure, the backup fan automatically speeds up to fill the gap.



  1. Energy efficiency and noise control



  • Intelligent speed regulation:
    Dynamically adjust the speed (such as 20%-100% PWM signal) according to the temperature sensor (such as IPMI reading), and reduce speed to save energy when under low load (power consumption is reduced by 60%).
  • Low noise design:
    Hydraulic bearing fan noise <35dB(A), suitable for office near-field deployment.
See more

Recommended brand

Product recommendation

Image Brand Title Model Order Number Description Min. Order Quantity Weight Discount
SODECA HTMF-80-6T-1.5 IE3 SODECA Smoke Extract Fans HTMF-80-6T-1.5 IE3 icx-SODECA-HTMF-80-6T-1.5 IE3
SODECA HTMF-80-6T-1.5 IE3, Smoke Extract Fans, Speed:930 RPM, Installed Power:1.1 KW, Max. Air Flow:19435 m³/h, Noise:54 dB
1 181 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-71-4/8T-4 SODECA Smoke Extract Fans HTMF-71-4/8T-4 icx-SODECA-HTMF-71-4/8T-4
SODECA HTMF-71-4/8T-4, Smoke Extract Fans, Speed:1420/710 RPM, Installed Power:3.00/0.60 KW, Max. Air Flow:22685/11300 m³/h, Noise:64/49 dB
1 135 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-71-4/8T-3 SODECA Smoke Extract Fans HTMF-71-4/8T-3 icx-SODECA-HTMF-71-4/8T-3
SODECA HTMF-71-4/8T-3, Smoke Extract Fans, Speed:1430/705 RPM, Installed Power:2.20/0.45 KW, Max. Air Flow:18490/9120 m³/h, Noise:63/48 dB
1 125 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-71-4/8T-2 SODECA Smoke Extract Fans HTMF-71-4/8T-2 icx-SODECA-HTMF-71-4/8T-2
SODECA HTMF-71-4/8T-2, Smoke Extract Fans, Speed:1430/725 RPM, Installed Power:1.50/0.30 KW, Max. Air Flow:16370/8270 m³/h, Noise:61/46 dB
1 119 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-6T-0.75 SODECA Smoke Extract Fans HTMF-63-6T-0.75 icx-SODECA-HTMF-63-6T-0.75
SODECA HTMF-63-6T-0.75, Smoke Extract Fans, Speed:930 RPM, Installed Power:0.55 KW, Max. Air Flow:10449 m³/h, Noise:48 dB
1 95 KG Yes, (The set sales target for the product by the required date)
SODECA HTMF-63-4/8T-3 SODECA Smoke Extract Fans HTMF-63-4/8T-3 icx-SODECA-HTMF-63-4/8T-3
SODECA HTMF-63-4/8T-3, Smoke Extract Fans, Speed:1430/705 RPM, Installed Power:2.20/0.45 KW, Max. Air Flow:18045/8900 m³/h, Noise:59/44 dB
1 112 KG Yes, (The set sales target for the product by the required date)
