Energy Recovery Ventilator

The energy recovery ventilator series promoted by ICX not only realizes indoor and outdoor air exchange, but also effectively recovers heat energy in the exhaust air, improving energy efficiency. It is widely used in green buildings and ventilation systems with high energy-saving requirements, taking into account both air quality and energy conservation and environmental protection.

Results: 29
Applied Filters:
HVAC
Ventilation Equipment
Mechanical Ventilation
Energy Recovery Ventilator
Reset Apply

Brand

ICX

Enthalpy Recovery Efficiency

0.65
0.66
0.67
0.7
1.7
2.7
3.7
4.7
5.7
6.7
7.7
8.7
Refrigeration：50.5% Heating：63.4%
Refrigeration：50.7% Heating：64.1%
Refrigeration：51.3% Heating：66.1%
Refrigeration：52.1% Heating：65.8%
Refrigeration：53% Heating：63%
Refrigeration：54% Heating：61%
Heating：55%
Refrigeration：55% Heating：64%
Refrigeration：56% Heating：67%
Refrigeration：60% Heating：68%
Heating：65%

Noise(dB)

32 dB
35 dB
38 dB
41 dB
42 dB
43 dB
44 dB
45 dB
47 dB
48 dB
49 dB
52 dB
54 dB
56 dB
58 dB
60 dB
62 dB
64 dB
68 dB

Product Size

730x730x252 mm
730x730x269 mm
776x745x200 mm
776x745x230 mm
776x745x260 mm
797x769x230 mm
797x969x260 mm
827x966x300 mm
1300*1070*365 mm
1350*1170*365 mm
1500*1270*460 mm
1650*1370*725 mm
1650*1370*495 mm
1700*1420*520 mm
1700*1420*845 mm
1750*1600*650 mm
1800*1600*650 mm
1850*1600*700 mm
1900*1600*750 mm
1950*1600*750 mm
1950*1700*1000 mm
1950*1800*1000 mm

Static Pressure

160 Pa
170 Pa
200 Pa
210 Pa
220 Pa
230 Pa
240 Pa
350 Pa
390 Pa
400 Pa
450 Pa
470 Pa
550 Pa
580 Pa
600 Pa
650 Pa

Air Volume

150 m³/h
150/120/100 m³/h
250 m³/h
250/200/150 m³/h
260 m³/h
350 m³/h
350/300/250 m³/h
500 m³/h
500/400/300 m³/h
800/650/500 m³/h
1000/900/800 m³/h
1500 m³/h
2000 m³/h
2500 m³/h
3000 m³/h
4000 m³/h
5000 m³/h
5500 m³/h
6000 m³/h
6500 m³/h
7000 m³/h
8000 m³/h
9000 m³/h
10000 m³/h

Rated Voltage

380 V

Power

0.18*2 W
0.32*2 W
0.8*2 W
1.1*2 W
1.5*2 W
1.65*2 W
1.8*2 W
2.2*2 W
2.8*2 W
3.5*2 W
75 W
115 W
135 W
140 W
165 W
190 W
280 W
350 W

Connection Size

100 mm
150 mm
200 mm
250 mm
330*165 mm
375*265 mm
425*285 mm

Product

Image Brand Title Connection Size Power Rated Voltage Air Volume Static Pressure Product Size Noise(dB) Enthalpy Recovery Efficiency
ICX K-BE15 Commercial Series 330*165 mm 0.18*2 W 1500 m³/h 350 Pa 1300*1070*365 mm 45 dB 0.7
ICX K-BE20 Commercial Series 330*165 mm 0.32*2 W 2000 m³/h 400 Pa 1350*1170*365 mm 47 dB 1.7
ICX K-BE25 Commercial Series 330*165 mm 0.32*2 W 2500 m³/h 400 Pa 1350*1170*365 mm 47 dB 2.7
ICX K-BE30 Commercial Series 375*265 mm 0.8*2 W 3000 m³/h 450 Pa 1500*1270*460 mm 49 dB 3.7
ICX K-BE40 Commercial Series 425*285 mm 1.1*2 W 4000 m³/h 550 Pa 1650*1370*495 mm 52 dB 4.7
ICX K-BE50 Commercial Series 425*285 mm 1.5*2 W 5000 m³/h 600 Pa 1700*1420*520 mm 54 dB 5.7
ICX K-BE60 Commercial Series 425*285 mm 1.1*2 W 6000 m³/h 600 Pa 1650*1370*725 mm 56 dB 6.7
ICX K-BE70 Commercial Series 425*285 mm 1.5*2 W 7000 m³/h 650 Pa 1650*1370*725 mm 58 dB 7.7
ICX K-BE80 Commercial Series 425*285 mm 1.5*2 W 8000 m³/h 650 Pa 1700*1420*845 mm 60 dB 8.7

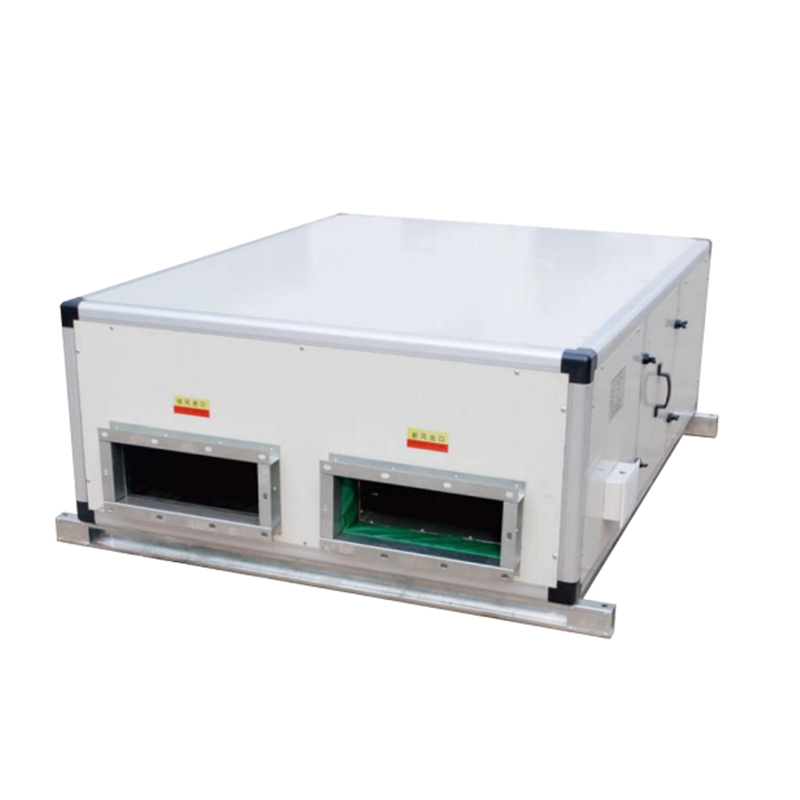

ICX K-ER-D55 Commercial Series 1.5*2 W 380 V 5500 m³/h 470 Pa 1750*1600*650 mm 62 dB 0.67
ICX K-ER-D60 Commercial Series 1.65*2 W 380 V 6000 m³/h 550 Pa 1800*1600*650 mm 64 dB 0.66
ICX K-ER-D65 Commercial Series 1.8*2 W 380 V 6500 m³/h 550 Pa 1850*1600*700 mm 64 dB 0.66
ICX K-ER-D70 Commercial Series 2.2*2 W 380 V 7000 m³/h 580 Pa 1900*1600*750 mm 64 dB 0.65
ICX K-ER-D80 Commercial Series 2.8*2 W 380 V 8000 m³/h 580 Pa 1950*1600*750 mm 64 dB 0.65
ICX K-ER-D90 Commercial Series 3.5*2 W 380 V 9000 m³/h 650 Pa 1950*1700*1000 mm 68 dB 0.65
ICX K-ER-D100 Commercial Series 3.5*2 W 380 V 10000 m³/h 650 Pa 1950*1800*1000 mm 68 dB 0.65
ICX K-ER150-D1 ER Series 100 mm 75 W 150/120/100 m³/h 160 Pa 730x730x252 mm 32 dB Refrigeration：56% Heating：67%
ICX K-ER250-D1 ER Series 150 mm 115 W 250/200/150 m³/h 170 Pa 730x730x252 mm 35 dB Refrigeration：53% Heating：63%
ICX K-ER350-D1 ER Series 150 mm 140 W 350/300/250 m³/h 210 Pa 730x730x269 mm 41 dB Refrigeration：60% Heating：68%
ICX K-ER500-D1 ER Series 200 mm 190 W 500/400/300 m³/h 220 Pa 730x730x269 mm 42 dB Refrigeration：54% Heating：61%
