CS Switch SC-N10RMM8-C 220A AC220V
Brand:
Series:
SC
Main Contacts:
3NO
Control Circuit:
AC/DC
Control Coil Voltage:
220/230VAC, 220VDC
Auxiliary Contacts:
2NO+2NC
Rated Current:
220A
Poles:
3P
Rated Voltage:
400VAC
Model:
SC-N10RMM8-C 220A AC220V
Order Number:
C0032840
Description:
CS Switch AC contactor SC-N10RMM8-C 220A AC220V, auxiliary contacts 2NO+2NC, poles 3P, 220A, control circuit AC/DC, main contacts 3NO, 400VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | CS Switch | |
| Series： | SC | |
| Main Contacts： | 3NO | |
| Control Circuit： | AC/DC | |
| Control Coil Voltage： | 220/230VAC, 220VDC | |
| Auxiliary Contacts： | 2NO+2NC | |
| Rated Current： | 220A | |
| Poles： | 3P | |
| Rated Voltage： | 400VAC |
Products with the same attribute : 0
Show details

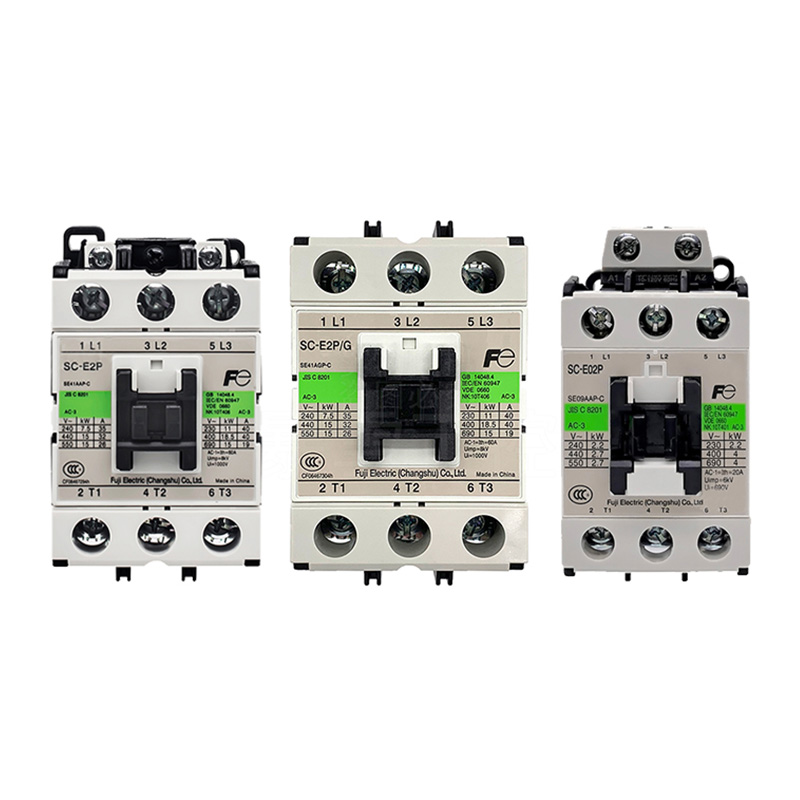

Series Overview
Series Overview
Finger - like Grid Protection
- In accordance with the touch protection requirements of DIN57106/VDE0106 Teil100, finger - like grid protection terminal covers are adopted at the live parts of the main circuit and control circuit terminals.
Phase - to - Phase Insulation Plates
- Equipped with insulation plates that can prevent phase - to - phase short circuits caused by the falling of foreign objects such as conductive dust. (Optional)
Zero - Arcing Distance
- On the new - type arc - extinguishing chamber, we use materials (UL94V - 0) and apply a new arc - extinguishing method of magnetic field analysis to achieve the requirement of zero arcing distance. Thus, not only can the height dimension of the AC contactor itself be reduced, but also the size of the switch cabinet can be greatly reduced.
Insulation Materials
- Improve tracking resistance
- Improve the tracking resistance of the injection - molded parts that form the live parts. The CTI value (Comparative Tracking Index: Comparative Tracking Index) is above 175V.
- Standard use of flame - retardant materials
- The injection - molded parts use flame - retardant materials that have passed the UL certification (UL94: Flame - retardant test for plastic materials).
Safe - Position Contact Function (Auxiliary Contacts Remain in OFF State When Main Contacts are Welded)
- Meet the safe - position contact requirements of IEC60947.
Extended Operating Ambient Temperature to 55°C
- Considering the miniaturization of the control cabinet and the dense installation of AC contactors, the operating ambient temperature is extended to 55°C.
New - type Super Electromagnet with High Operational Reliability
- By using a new - type super electromagnet with electronic control of the integrated IC operation circuit (AC input and DC excitation method), the SC series AC contactors achieve high operational reliability.
- Eliminate chattering caused by voltage fluctuations, thus preventing welding and damage of contacts.
- When the main contacts are closed, even if the voltage is reduced to 65% of the rated voltage, it will not hinder normal use.
- Can prevent the motor from starting when the voltage is insufficient.
- Greatly reduce the power consumption of the operating VA and the operating coil.
- Not only the coil specification range is expanded, but also AC/DC (AC/DC) sharing is achieved.
- Built - in surge absorption function.
- Can cope with EMC.
Specifications Installable on Guide Rails
- Can be installed on a 35mm - wide grooved guide rail without using special tools. (Model: SC - E02P ~ E4P, E02 ~ E4)
Model and Specification Indications on the Front
- Model, specification, coil voltage, and IEC terminal No. can be clearly seen on the front.
Refined Scales of the Thermal Overload Relay Rated Current Adjustment Dial
- The specification code of the thermal overload relay is printed on the indicator cover. By refining the scales of the rated current adjustment dial, the current setting becomes simple and easy.
Double - Contact of Auxiliary Contacts
- Through the double - contact auxiliary contacts, achieve high - reliability contact of DC5V 3mA. (Model: SC - N5P ~ N12, SZ - A=, SZ - AS=)
Two Types of Main Circuit Terminals
- To meet the needs of customers' different wiring methods, we not only prepare products with crimp terminals for direct wiring (SC - E02 ~ E05) and box - type terminals (SC - E1 ~ E7), but also prepare products suitable for terminal block terminals (SC - E02P ~ N12) for wiring.
Space - Saving Miniaturized Magnetic Contactors
- Using a high - efficiency magnetic system designed with three - dimensional magnetic field analysis technology, the miniaturization of the longitudinal dimension and installation area of the AC contactor is achieved.
- Development of new - type super electromagnets with high - efficiency magnetic systems
- Development of extreme magnetic systems.
- Optimize the distribution of magnetic lines of force in the iron core to reduce leakage and achieve miniaturization.
- Optimize the balance between load and attraction to reduce impact during pull - in.
- The 9 ~ 80A AC contactors SC - E02P ~ E4P, SC - E02 ~ E4 series are composed of 3 frames with width dimensions of 43mm (~ 25A), 54mm (~ 50A), and 67mm (~ 80A). Its structural feature is that there are only 3 - pole main circuits. By reducing the width dimension of the main body, the installation area is greatly reduced.
Reduce In - rush VA and Holding VA
- The high - efficiency super electromagnet and the electromagnetic system dedicated to DC operation greatly reduce the in - rush VA and holding VA (power consumption).
- For the main injection - molded parts, thermoplastic materials that can be recycled are used. In addition, the materials used are marked for the convenience of recycling.
