CS Switch CK3-12/N5 AC220V
Brand:
Series:
CK3
Main Contacts:
3NO
Control Circuit:
AC 50Hz
Control Coil Voltage:
220/230VAC
Auxiliary Contacts:
-
Rated Current:
12A
Poles:
3P
Rated Voltage:
380/400VAC
Model:
CK3-12/N5 AC220V
Order Number:
C0064468
Description:
CS Switch AC contactor CK3-12/N5 AC220V, poles 3P, control circuit AC 50Hz, main contact 3NO, 380/400VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | CS Switch | |
| Series： | CK3 | |
| Main Contacts： | 3NO | |
| Control Circuit： | AC 50Hz | |
| Control Coil Voltage： | 220/230VAC | |
| Auxiliary Contacts： | - | |
| Rated Current： | 12A | |
| Poles： | 3P | |
| Rated Voltage： | 380/400VAC |
Products with the same attribute : 0
Show details
Series Overview
Series Overview

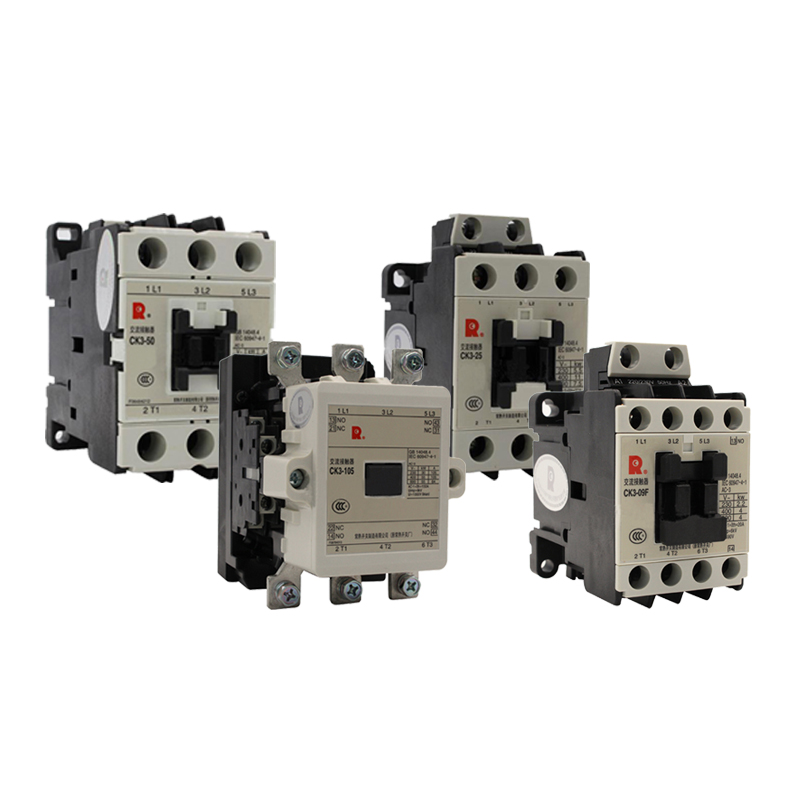

The CK3/CK3B series AC contactors and CJR3/CJR3B series thermal overload relays are small - volume, high - reliability products designed and produced by Changshu Fuji Electric Co., Ltd., a joint venture between our company and Fuji Electric Co., Ltd. They are divided into two major series:
- The CK3 series contactors and the corresponding CJR3 series thermal overload relays. For the contactors, at AC400V, the current ranges from 9A - 800A, with a total of 22 specifications. For the thermal overload relays, the current ranges from 0.1A - 450A, with a total of 11 specifications.
- The CK3B series contactors and the corresponding CJR3B series thermal overload relays. For the contactors, at AC400V, the current ranges from 6A - 95A, with a total of 11 specifications. For the thermal overload relays, the current ranges from 0.1A - 96A, with a total of 5 specifications.
- Additionally, there are 3 specifications of CK3 - 25K, 50K, 65K contactors for capacitor circuit switching derived from contactors, and 1 specification of FSG - 4 contactor - type relays.
The contactors, thermal overload relays, and contactor - type relays comply with the following standards:
- IEC 60947 - 1 and GB/T 14048.1 - 2012 General Rules for Low - voltage Switchgear and Controlgear
- IEC 60947 - 4 - 1 and GB/T 14048.4 - 2010 Low - voltage Switchgear and Controlgear Electromechanical Contactors and Motor Starters (Including Motor Protectors)
- IEC 60947 - 5 - 1 and GB/T 14048.5 - 2008 Low - voltage Switchgear and Controlgear Control Circuit Devices and Switching Elements Electromechanical Control Circuit Devices
Normal Use and Installation Conditions
- Ambient air temperature: - 5°C ~ + 55°C;
- Altitude of the installation site: not exceeding 2000m;
- Relative air humidity at the installation site: not exceeding 85% at the maximum temperature of + 40°C;
- Pollution level: 3;
- Can withstand mechanical vibration with a frequency of 10Hz ~ 55Hz and an acceleration of 15m/s²;
- Can withstand mechanical shock with an acceleration of 50m/s²;
- Installation category of the main circuit: III, installation category of the auxiliary control circuit: II;
- Installed with screws or on a 35mm guide rail, installation angle:
- Should be installed in a place without explosion hazards, no conductive dust, and no substances sufficient to corrode metals and damage insulation;
- Should be installed in a place without rain and snow erosion;
- Storage conditions: ambient air temperature: - 40°C ~ + 65°C.
