Delixi CJX2S-3810 380V/400V 50HZ ROHS
Brand:
Series:
CJX2s
Main Contacts:
3NO
Control Circuit:
AC 50Hz
Control Coil Voltage:
380/400VAC
Auxiliary Contacts:
1NO
Rated Current:
38A
Poles:
3P
Rated Voltage:
380/400VAC
Model:
CJX2S-3810 380V/400V 50HZ ROHS
Order Number:
CJX2S3810Q
Description:
Delixi AC contactor CJX2S-3810 380V/400V 50HZ ROHS, auxiliary contact 1NO, pole number 3P, 38A, control circuit AC 50Hz, main contact 3NO, 380/400VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delixi | |
| Series： | CJX2s | |
| Main Contacts： | 3NO | |
| Control Circuit： | AC 50Hz | |
| Control Coil Voltage： | 380/400VAC | |
| Auxiliary Contacts： | 1NO | |
| Rated Current： | 38A | |
| Poles： | 3P | |
| Rated Voltage： | 380/400VAC |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Product Introduction

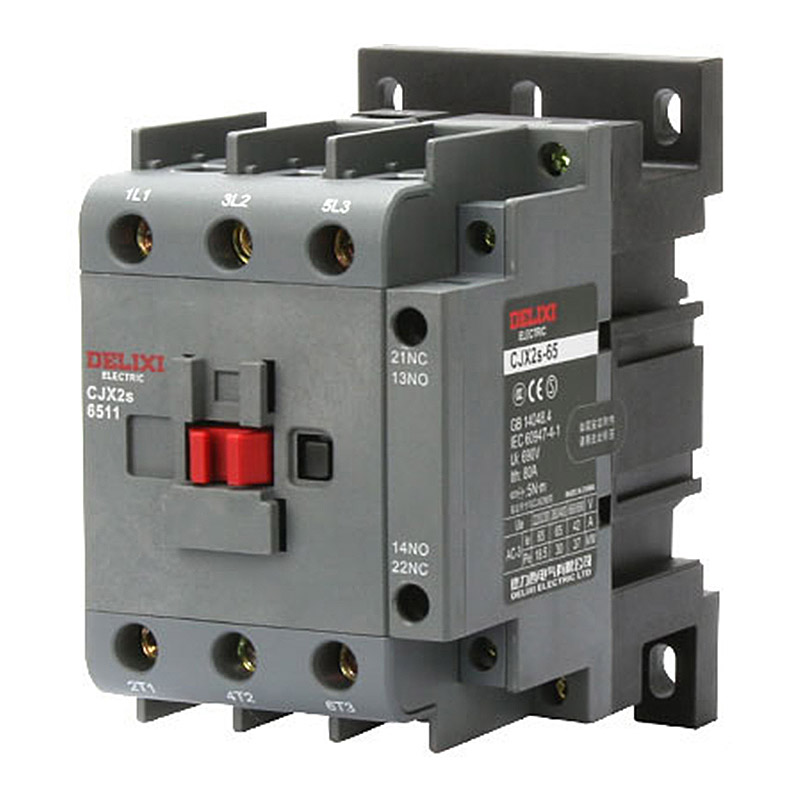

The all - new CJX2s series of motor control and protection products utilize a new - generation technology platform and apply automated production and detection equipment, truly meeting customers' actual application needs and creating products that are easy to use and of leading - national quality. This series includes CJX2s AC contactors, CJX2sF large - current contactors, CJX2H AC contactors, CJX2H - Z DC control contactors, JRS1Dsp thermal overload relays, JRH2 thermal overload relays, JZC4s contactor - type relays, CDS2s electromagnetic starters, CDV2s motor circuit breakers, and CDC19s capacitor - switching contactors, as well as ten major series and their accessories.
Product Range
- CJX2s AC contactors: 06 - 400A, with a total of 20 current specifications. Among them, 9 - 38A have 11 auxiliary contacts (1 normally open and 1 normally closed).
- Accessories: PC transparent dust covers, FN reversible connectors, F4 auxiliary contact blocks, FC6 side - mounted contact blocks, FT6 air delay heads, FR6 mechanical interlocks, FS surge suppressors, X2s coils.
- Certifications: CCC, CE, SEMKO.
Compliance with Standards
- GB/T 14048.1 General Rules, IEC 60947 - 1 General Rules
- GB/T 14048.2 Circuit - breakers, IEC 60947 - 2
- GB/T 14048.4 Contactors, IEC 60947 - 4 - 1 Contactors
- GB/T 14048.5 Relays, IEC 60947 - 5 - 1 Relays
Ambient Temperature
- During normal operation, the ambient air temperature is not higher than + 40°C, not lower than - 5°C, and the 24 - hour average value does not exceed + 35°C.
- Storage temperature: - 25°C ~ + 55°C, and can reach + 70°C within a short time (24h).
Humidity
- The relative humidity of the atmosphere does not exceed 50% when the ambient maximum temperature is + 40°C, and higher relative humidity is allowed at lower temperatures, such as 90% at 20°C.
- For condensation occasionally generated due to temperature changes, protective measures should be taken.
Installation Position
- Should be perpendicular to the installation surface, with the inclination in all directions not exceeding 22.5° (JRS1Ds is not more than 5°). Installation category is III.
Altitude
- The altitude of the normal working installation site does not exceed 2000m.
Pollution Level
- Level 3.
Product Protection Level
- IP20.
