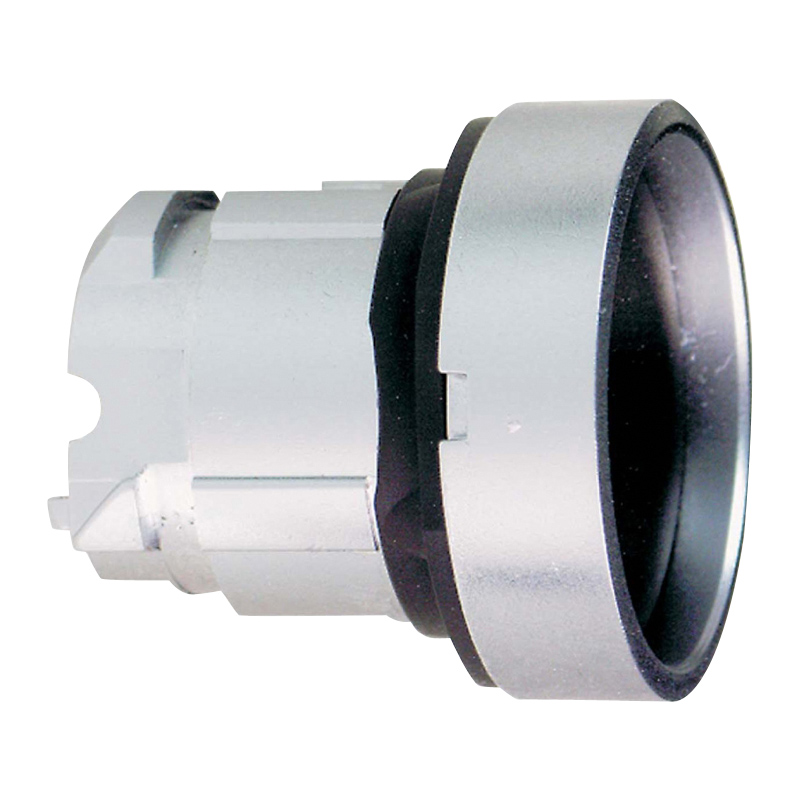

Schneider ZB6-AW1 LED flat button head

Name: Schneider ZB6-AW1 LED flat button head
SKU: ZB6AW1

Brand:

Schneider

Series:

XB6

Light Source:

Installation Diameter:

16mm

Color:

White

Material:

Function:

Reset type

Auxiliary Contacts:

Product Type:

LED flat button head

Rated Voltage:

Model:

ZB6-AW1 White head

Order Number:

ZB6AW1

Description:

Schneider Pushbutton Accessories ZB6-AW1 White Head, Mounting Diameter 16mm, White, LED Flat Head, Reset Type

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Schneider
Series：	XB6
Light Source：	-
Installation Diameter：	16mm
Color：	White
Material：	-
Function：	Reset type
Auxiliary Contacts：	-
Product Type：	LED flat button head
Rated Voltage：	-

Products with the same attribute : 0

Show details

Series Overview

Buttons, switches, and indicator lights (plastic, φ16)
Complete products
Installation of separate components with matching accessories
Round, square, and rectangular heads
Welding connection or circuit board pin connection
Protection class: IP65
Certifications: CE, UL, CSA, CCC

Contact Functions

Spring - return buttons
Selector switches, key switches, 2 - 3 positions
Mushroom - head buttons
Emergency stop buttons

Indicator Light Functions

Can be assembled by customers themselves
Can combine up to 5 light - emitting units or 4 light - emitting units + 1 buzzer at most
Can provide steady light, flashing, or stroboscopic signals
LED indicator lights, neon lights, or incandescent lights

Combination Functions

Illuminated buttons, flat heads, spring return, and self - return
Illuminated selector switches

Advantages

Small size, compact appearance, suitable for button control panels with high - density layout
Modular, easy to install
IP rating up to IP65, suitable for various applications

Application Scope

Industry: Small mechanical equipment, packaging and textile machinery, and other OEM customers
Construction: Road machinery, control panels, monitoring boxes, alarm devices
Others: Laboratories and medical instruments, transportation, small electronic equipment assembly lines
