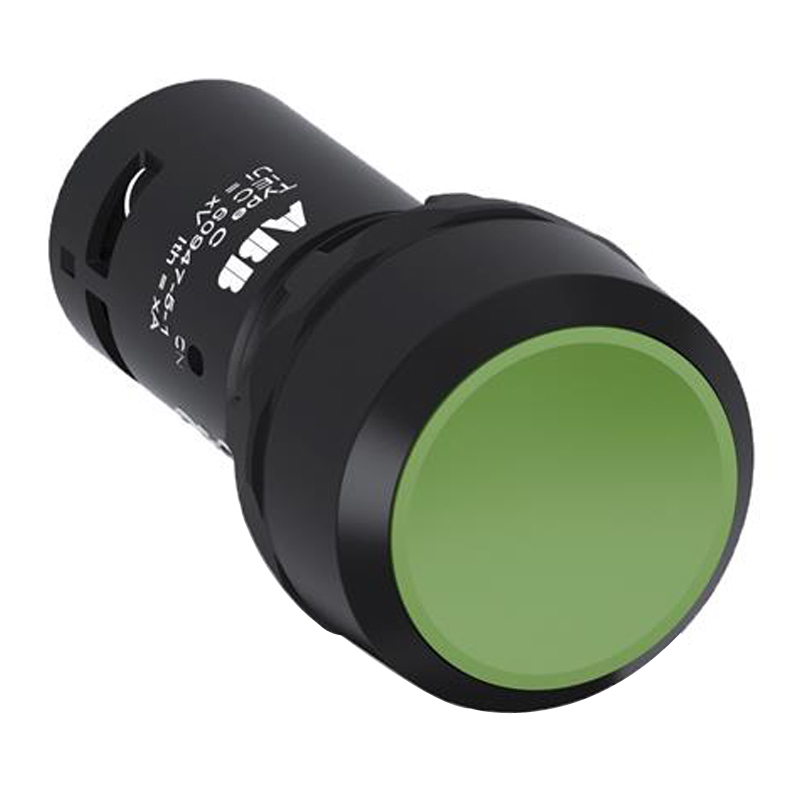

ABB CP1-20G-01 PushButton
Brand:
Series:
C Series
Lamp Holder Rated Voltage:
-
Base Material:
-
Light Source:
-
Installation Diameter:
22mm
Color:
green
Function:
Reset type
Auxiliary Contacts:
1NC
Product Type:
Flat button
Model:
CP1-20G-01
Order Number:
10113825
Description:
installation diameter 22mm, green, flat head button, auxiliary contact 1NC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ABB | |
| Series： | C Series | |
| Lamp Holder Rated Voltage： | - | |
| Base Material： | - | |
| Light Source： | - | |
| Installation Diameter： | 22mm | |
| Color： | green | |
| Function： | Reset type | |
| Auxiliary Contacts： | 1NC | |
| Product Type： | Flat button |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
- ABB provides a complete series of 22mm button and indicator devices, including indicators, buttons, emergency stop buttons, selector switches, toggle switches, joysticks, buzzers, potentiometers, etc.; meanwhile, it also supplies button boxes and a full range of accessories of the series.
- The main advantages of ABB's button and indicator devices are high protection levels and convenient and fast installation, which can save costs for customers. This product is suitable for various industrial environments, including outdoor use and some other applications, such as transport trucks, public buses, locomotives and vehicles, and public buildings, etc.
Compact Product Series
- Compact products include illuminated/non - illuminated buttons, non - illuminated selector switches, and emergency stop buttons, etc.
- Single integrated unit, easy to configure and use (one function corresponds to one order number)
- The front of the product has a protection level of IP67, and the rear has a protection level of IP20
- High - quality materials are selected, and all materials comply with UL certification
- Can have a maximum of two contact blocks (available contact combinations: 1NO, 1NC, 2NO, 2NC or 1NO + 1NC)
- Contacts have color - coded markings, easy to wire and enhance safety (NO is green, NC is red)
- The contacts have a self - cleaning function, and can maintain good conductivity after long - term use, and also have reliable performance when low current passes through.
Modular Product Series
- Modular products include illuminated or non - illuminated buttons, selector switches, emergency stop buttons, double - head buttons, toggle switches and other series of products.
- Customers can combine different component models according to their needs to meet the required functions.
- Suitable for outdoor and indoor use, with a protection level of up to IP66.
- A maximum of 5 contacts can be configured in a single layer, and a maximum of 6 contacts can be configured in a double layer.
- The contacts have a self - cleaning function, which can enhance the reliability of conduction; the contact blocks have color - coded markings, easy to identify.
Illuminated Buttons
- Can be provided in compact and modular types. Compact products save installation space and can save costs for customers; modular products provide different function options to meet different needs of customers.
- Product types: Self - locking type, self - resetting type
- Colors:
- Compact type: Red, yellow, green
- Modular type: Red, green, yellow, blue, white, black, transparent
- Operating temperature: -25°C to +70°C
- Mechanical life: 500,000 cycles
- Protection levels:
- IP67 (compact type)
- IP66 (modular type)
Emergency Stop Buttons
- Can be provided in compact and modular products.
- Compact type: Single integrated unit, easy to configure and use, can save costs and installation space for customers.
- Modular type: Can provide different function options to meet different needs of customers.
- Indication methods: Illuminated type/non - illuminated type
- Operation methods: Twist release/pull release/key release type
- Operating head diameters: O30, O40 and O60MM
- High protection levels:
- Compact product — Front IP67, rear IP20
- Modular product — Front IP66, rear IP20
Standard Testing
- ABB emergency stop buttons are designed in accordance with the standard of IEC 60947 - 5 - 5, and the electrical function is mechanically locked before activation to prevent misoperation, and has passed strict product testing, meeting various use conditions, ensuring reliable quality and personal safety.
Performance Testing
-
Operation Test
- 6050 cycles
- Locking part endurance test
-
Strength Test
- M = 0.1×D, torque = 2.2 Nm
- F = 5×D, force = 113N
-
Dry and Wet Test
- Check function after 96 - hour test
- +70°C dry air
- Humid hot air (+25°C/+55°C, 97%/93% RH)
- -40°C
- +35°C 5% NaCl solution
-
Impact Test
- According to standard: IEC 60068 - 2 - 27
- Test parameters:
- Impact force: 15g (equivalent to 150m/s²)
- Duration: 11ms
- During the test, closed contacts cannot open, opened contacts cannot close, and the locking mechanism cannot lock/unlock
-
Vibration Test
- Frequency: 10 - 00Hz
- Time: 2 hours
- Acceleration: 50m/s²
- Amplitude: 0.35mm
-
Lock Release Test
- The actuator of the emergency stop switch should move slowly, just reaching the locking point, and the normally closed contacts should open here.
- Tested by a pulse voltage at 2500V.
-
Lock Release Test
- According to IEC 60947 - 5 - 5/7.3
- Simulate the action of a normal operator
- The emergency stop button is installed in front of a 1.6kg pendulum hammer
- After being subjected to the impact, the locking mechanism should be locked (h = 75mm)
-
Lock Release Test
- Reset force should be less than: 50N
- Torque should be less than 1Nm
-
Impact Test
- Impact with a 1.6kg hammer, h = 310mm
- After each impact, the emergency stop button should be activated
- After three impacts, the emergency stop button should not be damaged
-
Function Test
- Types of use: AC - 15 and/or DG - 13 and/or DC - 14
- NC contacts open directly
Features
L - MARK Custom Marking Pattern, Easy and Convenient
- ABB has newly developed a brand - new system, making it easy for customers to customize marking patterns on button and indicator devices. In addition to engraving characters on the nameplate, ABB can also provide products with pre - printed custom patterns on button and indicator devices. On the L - MARK website, customers will receive an order code for the custom - marked pattern product, which can be saved for easier re - ordering next time, and ensure that customers get the perfectly customized product.
Contact Self - cleaning Function
- Whether for compact or modular products, the contact blocks have wiping actions, enabling the contact self - cleaning function. During operation, the moving contact rolls and then slides to the side after contacting the static contact. Due to this characteristic, the contact self - cleaning function can be ensured even in low - current applications.
Fast and Convenient Installation
- The installation of all ABB button and indicator devices is very convenient and flexible. The elastic installation can ensure the accurate position of the operating head and the nameplate. ABB's operating heads can be used in both slotted holes and round holes. The product adopts a standardized card - mounting design, and is one of the fastest - installing products on the market.
