APT LA39-B3-02/G Green Button
Brand:
Series:
LA
Lamp Holder Rated Voltage:
-
Base Material:
plastic
Light Source:
-
Installation Diameter:
22mm
Color:
green
Function:
Reset type
Auxiliary Contacts:
2NC
Product Type:
Flat button
Model:
LA39-B3-02/G Green
Order Number:
Description:
installation diameter 22mm, green, reset type, plastic, flat head button, auxiliary contact 2NC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | APT | |
| Series： | LA | |
| Lamp Holder Rated Voltage： | - | |
| Base Material： | plastic | |
| Light Source： | - | |
| Installation Diameter： | 22mm | |
| Color： | green | |
| Function： | Reset type | |
| Auxiliary Contacts： | 2NC | |
| Product Type： | Flat button |
Products with the same attribute : 0
Show details
Series Overview
Series Overview

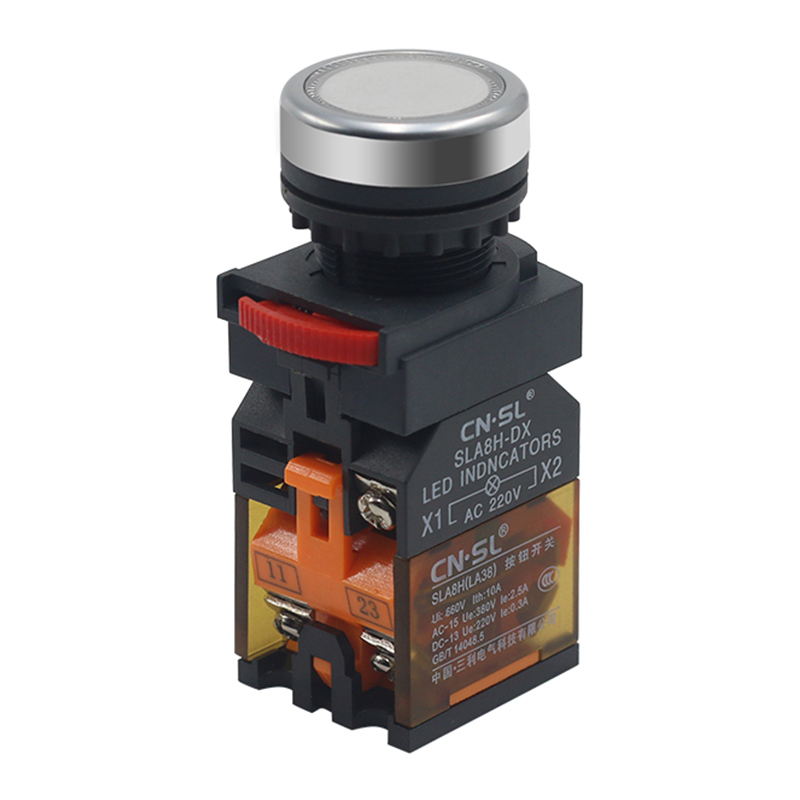

The LA39 buttons feature a novel structure, an attractive appearance, and a complete range. They can provide the best solutions and high - quality, high - performance, and highly reliable control components for customers in industries such as industrial automation, medical equipment, electric power, machinery, communications, transportation, metallurgy, and chemical engineering.
Product Features of LA39 - A / LA39 - B
- The metal operating head is safe and firm, especially suitable for mechanical industry applications with frequent operations and high vibration intensity. The mounting diameter is φ22.5mm;
- Customers can choose the contact combination method as needed, with a maximum of six pairs of contacts. A spring - plate type action mechanism is adopted, which has a contact self - cleaning function and reliable contact;
- Complete specifications, including self - reset buttons, self - locking buttons, illuminated buttons, mushroom buttons, knob buttons, key buttons, emergency stop buttons, etc.
- Five installation methods: anti - loosening oblique screw installation, straight screw installation that saves installation space, simple nut installation with or without a tightening screw, and fast and convenient one - hand installation;
- The light - emitting body of the illuminated button adopts pure color and ultra - bright LED, with a brightness greater than 100cd/m²;
- The mechanical life of general buttons is greater than 3 million cycles, and the continuous light - emitting life of illuminated buttons is greater than 100,000 hours;
- According to the requirements of customer operation instructions, symbol plates or label frames can be configured;
Product Features of LA39 - C
- Metal operating head, the flush - mounted installation has an ultra - thin effect, and the flat design makes the product not easy to be damaged, making the equipment panel more beautiful. The mounting diameter is φ30.5mm;
- Customers can choose the contact combination method as needed, with a maximum of six pairs of contacts. A spring - plate type action mechanism is adopted, which has a contact self - cleaning function and reliable contact;
- Complete specifications, including self - reset buttons, self - locking buttons, illuminated buttons, mushroom buttons, knob buttons, key buttons, emergency stop buttons, etc.
- Five installation methods: anti - loosening oblique screw installation, straight screw installation that saves installation space, simple nut installation with or without a tightening screw, and fast and convenient one - hand installation;
- The light - emitting body of the illuminated button adopts pure color and ultra - bright LED, with a brightness greater than 100cd/m²;
- The mechanical life of general buttons is greater than 3 million cycles, and the continuous light - emitting life of illuminated buttons is greater than 100,000 hours;
- The LA39 - E series buttons are ingeniously designed, have an attractive appearance, a compact volume, are easy to install, and have reliable contact. They are the best choice for users' needs of panel miniaturization and centralized control. The external shapes of this series of buttons are complete, and all shapes can be divided into three types: circular, square, and rectangular, which greatly meet the needs of users.
Product Features
- Mounting diameter φ16mm;
- Six colors: red, yellow, green, blue, white, and black;
- Circular, square, and rectangular heads;
- Complete product specifications: self - reset buttons, self - locking buttons, illuminated buttons, buttons with function symbols, knob buttons, key buttons, mushroom buttons, emergency stop buttons, etc.;
- Adopt the wiring method of soldering lugs;
- Compact structure, easy to install, silver - plated contacts have reliable contact and stable performance.
The LA39 - G series products make up for the deficiencies of other products. Their ingenious design, complete specifications, easy installation, attractive appearance, and reliable action are the greatest advantages of this series of products.
Product Features
- Mounting diameter φ16mm;
- Six colors: red, yellow, green, blue, white, and black;
- Circular, square, and rectangular heads;
- Complete product specifications: self - reset buttons, self - locking buttons, illuminated buttons, knob buttons, key buttons, mushroom buttons, emergency stop buttons, etc.;
- Adopt the wiring method of soldering lugs;
- The contact head and the connecting soldering lug are gold - plated, with a double - break quick - action structure and reliable contact. The modular combination structure is composed of two major parts: the operating head and the contact module.
The LA39 - F series buttons have a compact structure and a small and exquisite volume. The shapes of the button heads can be divided into circular, square, and rectangular; by product type, there are general buttons, illuminated buttons, etc. The LA39 - F series buttons have a beautiful appearance, clear and transparent LED lighting, and a unique and reliable internal structure. They can better meet users' needs for panel miniaturization and centralized control.
Product Features
- Mounting diameter φ12mm;
- Six colors: red, yellow, green, blue, white, and black;
- Circular, square, and rectangular heads;
- Product types: general buttons, illuminated buttons
- Adopt the wiring method of soldering lugs;
- The contact head adopts high - quality silver alloy, with reliable on - off and a long service life.
The XK series control cabinets are made of plastic materials, featuring good toughness and high strength. There are various external dimensions, and holes can be opened according to customer needs for installing various buttons, indicators, meters, wiring terminals, and other electrical components. Suitable for indoor wall - mounted and outdoor floor - mounted distribution equipment.
Product Features
- Two materials: ABS (regular) and PC (custom - made).
- Various external dimensions, customers can choose a suitable size control cabinet according to the installed components.
- Customization services: holes can be opened according to the drawings provided by customers, and laser lettering can be done on the cabinet body according to customer requirements.
- Except for the XK - A, XK - 15, and XK - 16 series, a TS35×7.5 guide rail can be optionally equipped for installing wiring terminals.
- An installation plate can be optionally equipped at the bottom of the cabinet body for installing various relays, contactors, fuses, and other low - voltage electrical components.
