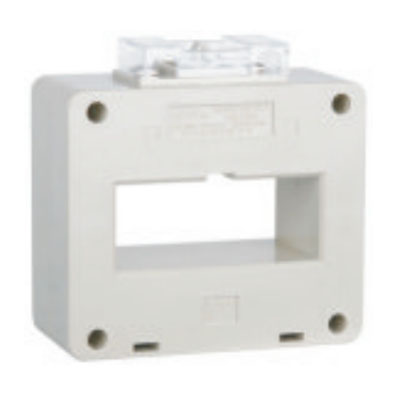

LMZJ1-0.66 1200/5 Φ100 0.5S class current transformer

Name: LMZJ1-0.66 1200/5 Φ100 0.5S class current transformer
SKU: ICX-71026-38021

Brand:

TENGEN

Series:

LMZJ1

Rated Capacity:

10VA

Opening Type:

rectangle

Current Transformation Ratio:

1200/5

Perforation Size:

104*35mm

Accuracy Level:

0.5S

Product Type:

Closed

Rated Voltage:

660V

Model:

LMZJ1-0.66 1200/5 Φ100 0.5S grade

Order Number:

ICX-71026-38021

Description:

TENGEN LMZJ1-0.66 1200/5 Φ100 0.5S grade, precision grade 0.5S grade, closed type, perforation size 104*35mm, 660V

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	TENGEN
Series：	LMZJ1
Rated Capacity：	10VA
Opening Type：	rectangle
Current Transformation Ratio：	1200/5
Perforation Size：	104*35mm
Accuracy Level：	0.5S
Product Type：	Closed
Rated Voltage：	660V

Products with the same attribute : 0

Show details

Series Overview

The LMZJ1-0.5 series current transformers are suitable for use in AC circuits with a rated frequency of 50Hz and a rated voltage of 0.5kV and below for current and electric energy measurement or relay protection. The product is a cast-type current transformer, and its installation method adopts the base plate fixed installation method.
The LMZJ1-0.66 series current transformers are mainly used indoors. They are suitable for use in AC circuits with a rated frequency of 50Hz and a rated voltage of 0.66kV and below for current and electric energy measurement or relay protection. The product is a cast-type current transformer, and its installation method adopts the busbar fixed installation method.

Normal Operating Conditions and Installation Conditions

Ambient temperature: -5°C to +40°C, the relative humidity of the air does not exceed 50%. At lower temperatures, the relative humidity is allowed to not exceed 80%.
There is no serious pollution in the atmosphere, and there are no gases and conductive dust that can corrode metals and damage insulation.
There is no intense vibration or jolt at the installation site.
The installation site is not directly irradiated by sunlight, and there is no erosion by rain and snow or serious mildew.
