CS Switch CA1B-100C/4300A-BR 50A Dual Power Supply
Brand:
Series:
CA1B
Controller Type:
Electronic type
Power Supply Type:
Grid-Grid
Transfer Switch Type:
CB
Control Mode:
automatic
Operation Mode:
Self-investment and self-recovery
Control Voltage:
230VAC
Rated Current:
50A
Poles:
4P
Rated Voltage:
400VAC
Breaking Capacity:
35KA
Model:
CA1B-100C/4300A-BR 50A
Order Number:
C0137633
Description:
Automatically switched, CB-level transfer switch, breaking capacity 35KA, number of poles 4P, rated voltage 400VAC, control voltage 230VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | CS Switch | |
| Series： | CA1B | |
| Controller Type： | Electronic type | |
| Power Supply Type： | Grid-Grid | |
| Transfer Switch Type： | CB | |
| Control Mode： | automatic | |
| Operation Mode： | Self-investment and self-recovery | |
| Control Voltage： | 230VAC | |
| Rated Current： | 50A | |
| Poles： | 4P | |
| Rated Voltage： | 400VAC | |
| Breaking Capacity： | 35KA |
Products with the same attribute : 0
Show details
Series Overview
CA1B automatic transfer switch Series Overview
- The CA1B automatic transfer switch electrical appliance (hereinafter referred to as the transfer switch) is a series of products launched for the automatic switching from the power source end to the load end in the low - voltage power distribution system
- The miniaturized CA1B series transfer switch electrical appliances, whose main circuit executive components are composed of two MCCBs and one electric operating mechanism, have four frame sizes: 63A, 100A, 250A, 400A. The rated working current ranges from 10A to 400A, and the rated working voltage is AC50Hz, 400V.
- The transfer switch electrical appliances are classified into CB class and PC class, among which CA1B has both CB class and PC class;
- The main circuit executive components of the transfer switch CA1B are ultra - thin CM3 - 63, CM3 - 100C, CM3 - 250C and CM3 - 400C/L/M/H circuit breakers;
- The transfer switch is suitable for the switching between different power sources such as grid - grid, grid - generator, etc.;
- The transfer switch meets the following standards:
- GB/T14048.1 - 2012 Low - voltage switchgear and controlgear General rules
- GB/T14048.2 - 2008 Low - voltage switchgear and controlgear Circuit breakers
- GB/T14048.11 - 2016 Low - voltage switchgear and controlgear Multifunctional electrical equipment Transfer switch electrical appliances
Excellent Features
CA1B Miniaturized Automatic Transfer Switch Electrical Appliance
- Single - cable operation, with its own mechanical interlocking. The opening and closing states of the executive circuit breaker are 直观可视 (intuitively visible);
- Has the same functions as the CA1 automatic transfer switch;
- Has two major types: CB class and PC class;
- Features small volume and thin design, and can be easily installed in various terminal distribution boxes. The CB - class CA1B uses CM3 - 63L/M, CM3 - 100C, CM3 - 250C ultra - thin circuit breakers and CM3 - 400C/L/M/H circuit breakers, with a height of only 115mm (CA1B - 63, 100) / 125mm (CA1B - 250) / 197mm (CA1B - 400); the PC - class and CB - class products of the same frame size have the same dimensions, and can be quickly replaced with each other, plug - and - play, meeting the standardized production of complete sets of factories;
- Has good dielectric strength and environmental adaptability, with an overvoltage category of category II and a pollution level of 3.
Normal Working Conditions
- The ambient air temperature is - 5°C ~ + 40°C, and the average value within 24h does not exceed + 35°C;
- The altitude of the installation site does not exceed 2000m;
- The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is + 40°C, and can be higher at lower temperatures, for example, it can reach 90% at 20°C. Special measures should be taken for condensation occasionally generated due to temperature changes;
- Pollution level is 3;
- Installation category: CA1B is category II;
- Applicable to electromagnetic environment A.
Structural Introduction

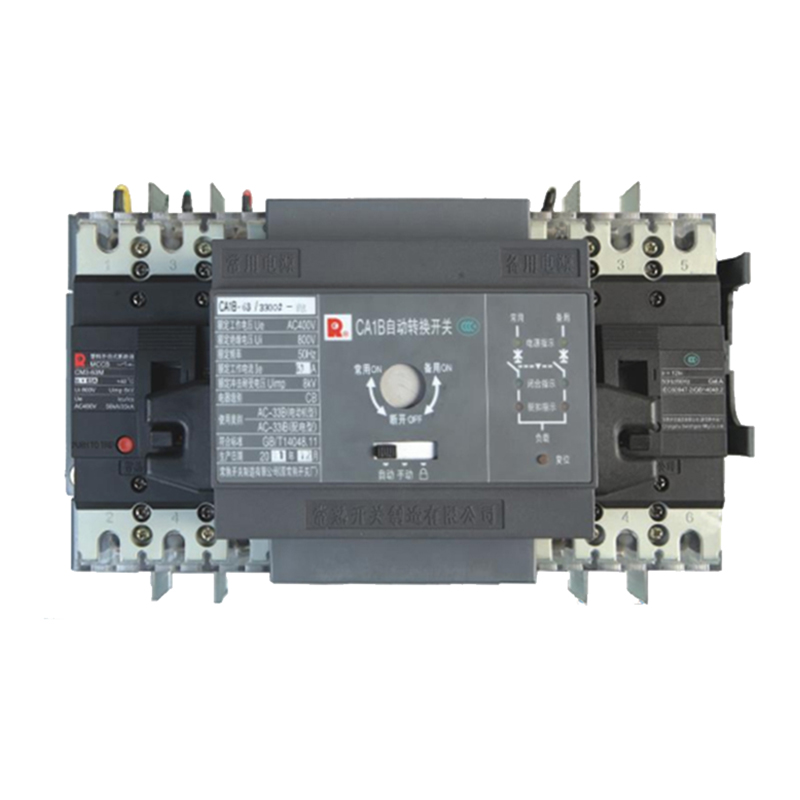

The appearance of CA1B is as shown in the above figure, and it is composed of an installation base plate, common and standby executive switches, one electric operating mechanism, and a controller. The controllers include electronic type and BZ(T) intelligent type. The intelligent controller can be equipped with separate installation accessories (1.8M control cable and installation parts) to independently install the operation display on the switch cabinet door panel (separate installation parts are ordered as accessories, and should be noted when ordering if exceeding 1.8M).
