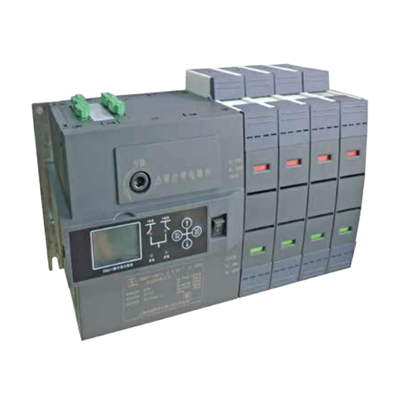

CS Switch CAP2-40/D/3 Dual Power Supply
Brand:
Series:
CAP2
Controller Type:
Intelligent communication type
Power Supply Type:
Grid-Grid
Transfer Switch Type:
PC-level
Control Mode:
automatic
Operation Mode:
Automatic start and automatic recovery/Automatic start without automatic recovery/Mutual backup
Control Voltage:
230VAC
Rated Current:
40A
Poles:
3P
Rated Voltage:
400VAC
Breaking Capacity:
-
Model:
CAP2-40/D/3
Order Number:
C0148228
Description:
Automatic transfer and automatic recovery/Automatic transfer without automatic recovery/mutual backup, PC-level transfer switch, 3P poles, rated voltage 400VAC, control voltage 230VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | CS Switch | |
| Series： | CAP2 | |
| Controller Type： | Intelligent communication type | |
| Power Supply Type： | Grid-Grid | |
| Transfer Switch Type： | PC-level | |
| Control Mode： | automatic | |
| Operation Mode： | Automatic start and automatic recovery/Automatic start without automatic recovery/Mutual backup | |
| Control Voltage： | 230VAC | |
| Rated Current： | 40A | |
| Poles： | 3P | |
| Rated Voltage： | 400VAC | |
| Breaking Capacity： | - |
Products with the same attribute : 0
Show details
Series Overview
CAP2 series automatic transfer switch electrical appliance
- The CAP2 series automatic transfer switch electrical appliance (hereinafter referred to as the device) is a PC - class - specific automatic transfer switch electrical appliance. It is mainly used in a two - circuit neutral - point grounded power supply system (common power supply and standby power supply or common power supply and generator power supply) with an alternating current of 50Hz, a rated voltage of 400V and below, and a rated working current of up to 3200A. When one power supply malfunctions, it switches between power supplies to ensure the reliability and safety of power supply.
- The device has a high switching - on and breaking capacity. It can not only meet the conversion of regular loads but also the conversion of high - inductive or large - motor loads. Meanwhile, due to its high short - time withstand current capacity, no specific SCPD is required, which does not affect the selectivity within the circuit and can meet the application on the large - capacity power supply side.
- This device complies with the standard GB/T14048.11 - 2016 《Low - voltage switchgear and controlgear Part 6 - 1: Multifunctional electrical equipment Transfer switch electrical appliances》.
Normal Working Conditions
- Ambient air temperature
- a) The upper limit does not exceed + 40°C;
- b) The 24 - hour average value does not exceed + 35°C;
- c) The lower limit is not lower than - 5°C.
- The altitude of the installation site does not exceed 2000m.
- The relative humidity of the air at the maximum temperature of + 40°C does not exceed 50%. At lower temperatures, a higher relative humidity is allowed, for example, it can reach 90% at 20°C. Special measures should be taken for condensation occasionally generated due to temperature changes.
- The pollution level is 3.
- No impact or vibration at the installation site.
- Generally, it should be installed vertically.
- The installation category of the main circuit is category IV, and the installation category of the remaining auxiliary circuits and control circuits is category III.
- Applicable to electromagnetic environment A.
Excellent Features
- Full coverage of current from 32A to 3200A
- On the basis of the original transfer switch with a minimum rated current of 32A for load - specific PC - class high - short - time withstand and high - short - circuit switching - on capacity, a new power transfer switch with a maximum of 3200A is newly launched to fully meet user requirements.
- Special PC - class high - short - time withstand and high - short - circuit switching - on capacity
- The contact systems of frames below 630A and above adopt a bridge - type double - break point rotating insertion structure, and the contact systems of frames 1600 and above adopt a closing - type structure with a closing mechanism self - holding by a cam. This makes the series of products have high short - time withstand current and high - short - circuit switching - on capacity. No specific SCPD is required, which does not affect the selectivity within the circuit and can meet the application on the large - capacity power supply side.
- 10Ie switching - on and breaking capacity, meeting the AC - 33B service category
- The optimized magnetic - blowout arc - extinguishing system easily achieves 10Ie switching - on and breaking capacity. While meeting the AC - 33B service category, it conforms to the load nature of all AC typical uses in GB/T 14048.11, with extremely wide application scope.

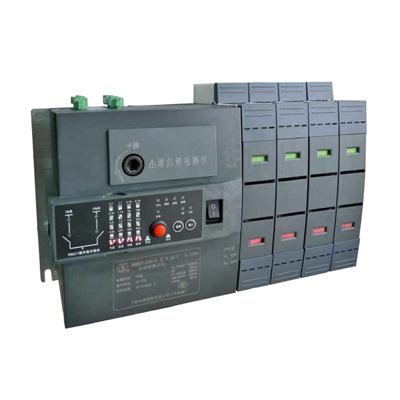

- Stacked structure, small volume
- The 630 frame and below common and standby power switch components adopt a modular design and stacked arrangement, making the product volume much smaller than similar products at home and abroad.
- Isolation locking function
- It has an open position, which can be used in fire - fighting linkage and high - inductive load occasions, and has an isolation locking function, which can meet the isolation requirements during load inspection and maintenance.
- The display controller can be installed integrally or separately
- For frames below 630, the display controller and the transfer controller are set separately. The display controller can be installed on the switch body panel (integral type) or separately on the cabinet door (split type), facilitating users to detect and control the automatic transfer switch status.
- Reliable connection between manual and electric operations
- In manual operation mode, cut off the motor power supply, and disengage the motor from the operating mechanism through the clutch to achieve dual electrical and mechanical interlocking and ensure operation safety.
- Rich functions and diverse forms
- The controller has functions such as undervoltage, overvoltage, phase failure, underfrequency, overfrequency automatic switching and electric forced switching. The automatic mode integrates self - reset after power failure and non - self - reset after power failure (mutual standby) two modes to adapt to different use occasions; it has a fire - fighting linkage function to meet the requirement of disconnecting the load - side power supply in emergency situations.
- Intelligent and networked
- The communication product based on the Modbus - RTU protocol can be applied to Profibus, DeviceNet, CAN bus and Ethernet communication networks through the company's CN1DP adapter and CN1EG Ethernet adapter, facilitating users to carry out application management of multiple protocols.
