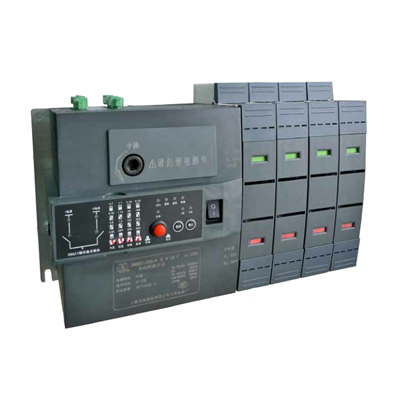

Shanghai Renmin RMQ5Y-630/4IIFT EH 350A Dual Power Supply
Brand:
Series:
R
Controller Type:
Intelligent communication type
Power Supply Type:
Grid-Generator
Transfer Switch Type:
PC-level
Control Mode:
automatic
Operation Mode:
Self-investment and self-recovery
Control Voltage:
300VAC
Rated Current:
350A
Poles:
4P
Rated Voltage:
380/400VAC
Breaking Capacity:
-
Model:
RMQ5Y-630/4IIFT EH 350A front panel
Order Number:
Description:
Automatically switched, PC-level transfer switch, 4 poles, rated voltage 380/400VAC, control voltage 300VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Shanghai Renmin | |
| Series： | R | |
| Controller Type： | Intelligent communication type | |
| Power Supply Type： | Grid-Generator | |
| Transfer Switch Type： | PC-level | |
| Control Mode： | automatic | |
| Operation Mode： | Self-investment and self-recovery | |
| Control Voltage： | 300VAC | |
| Rated Current： | 350A | |
| Poles： | 4P | |
| Rated Voltage： | 380/400VAC | |
| Breaking Capacity： | - |
Products with the same attribute : 0
Show details
Series Overview
RMQ5Y Series Overview
- The RMQ5Y series automatic transfer switch (hereinafter referred to as the transfer switch) belongs to the PC class. It is mainly applicable to three - phase four - wire dual - power supply (common power supply, standby power supply or generator power supply) with an alternating current of 50Hz, a rated working voltage of 400V and below, and a rated current of up to 630A. This series of products breaks the design concept of the conventional split - type automatic transfer switch. It optimally integrates the intelligent controller and the automatic transfer switch into one. Once a voltage sag or other faults occur, the transfer switch can perform automatic switching between the two power supplies. As a new - generation product, our company starts from the user's perspective and will provide users with safer, more reliable and more comprehensive power distribution solutions.
Product Features
- Truly intelligent all - in - one machine
- Adopts an integrated design, integrates intelligent modules, and all use MCU design, with stronger anti - interference ability
- Users only need to connect to the main circuit according to the wiring diagram, and the switch can work normally without complicated wiring
- Wiring methods convenient for user installation
- Common - standby separation: The common power supply is on one side, and the standby power supply and load are on the other side
- More convenient control methods
- Manual control is the front panel operation of the switch, convenient for emergency use
- Has four control modes: remote control, manual control, automatic control, and communication control (only EH type), convenient for realizing fire protection and remote control functions under various situations
- Shell design size more suitable for users
- The switch pitch and busbar design match the molded case circuit breaker, convenient for the design and use of complete set customers
- The external dimensions are adjusted to save more actual installation and use space
- Intelligent controller more convenient for users
- EA intelligent controller (DIP switch type)
- Adopts MCU design, with multiple protections such as three - phase voltage loss, undervoltage, and overvoltage
- Simple, fast and intuitive operation, suitable for use in general electrical occasions
- EH intelligent controller (LCD type)
- Adopts multi - MCU design, and the separable display module is on the switch panel, convenient for panel operation
- Has very complete parameter settings, meeting the use of various electrical occasions
- Adopts LCD screen display, with more display information
- Has software password user - defined function, preventing misoperation by non - professional personnel
- Has powerful communication functions, realizing connection control with Modbus - RTU network
- EA intelligent controller (DIP switch type)
- Usage category AC - 33B
Execution Standards
- Complies with GB/T14048.11, IEC60947 - 6 - 1.
