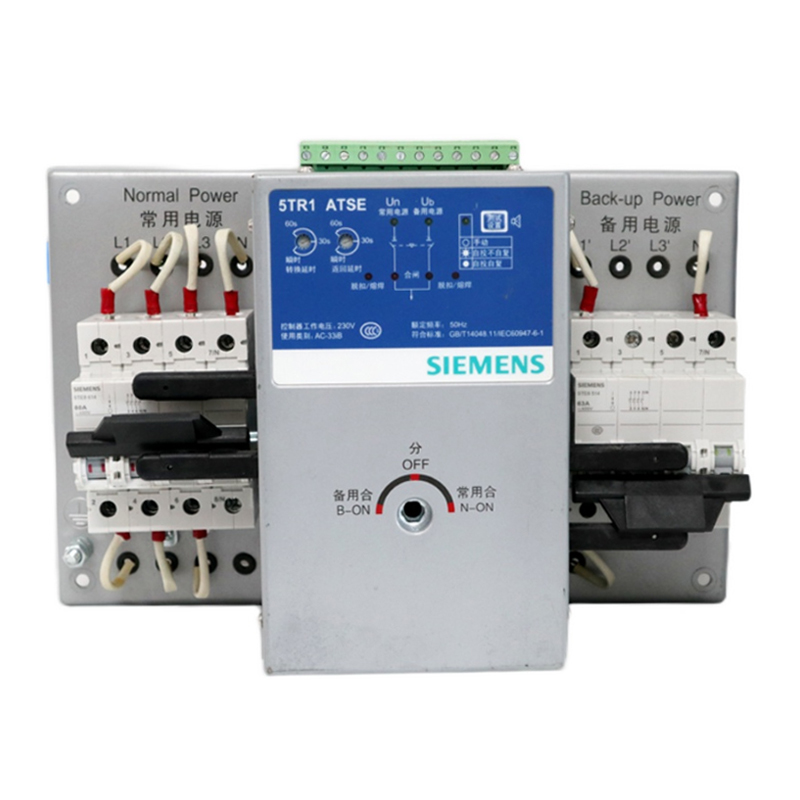

Siemens 5TR2324-7CC63 Dual Power Supply
Brand:
Series:
5TR
Controller Type:
Intelligent
Power Supply Type:
Grid-Grid/Grid-Engine
Transfer Switch Type:
CB
Control Mode:
automatic
Operation Mode:
Self-transfer and self-recovery/Self-transfer and no self-recovery
Control Voltage:
230VAC
Rated Current:
63A
Poles:
4P
Rated Voltage:
230/400VAC
Breaking Capacity:
6KA
Model:
5TR2324-7CC63
Order Number:
5TR23247CC63
Description:
Automatically switched and automatically restored/Automatically switched and not automatically restored, CB-level transfer switch, breaking capacity 6KA, number of poles 4P, rated voltage 230/400VAC, control voltage 230VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Siemens | |
| Series： | 5TR | |
| Controller Type： | Intelligent | |
| Power Supply Type： | Grid-Grid/Grid-Engine | |
| Transfer Switch Type： | CB | |
| Control Mode： | automatic | |
| Operation Mode： | Self-transfer and self-recovery/Self-transfer and no self-recovery | |
| Control Voltage： | 230VAC | |
| Rated Current： | 63A | |
| Poles： | 4P | |
| Rated Voltage： | 230/400VAC | |
| Breaking Capacity： | 6KA |
Products with the same attribute : 0
Show details
Series Overview
5TR series Product Overview
- The 5TR series automatic transfer switch electrical appliance (abbreviated as ATSE) adopts SSJ, SSP series circuit breakers and 5TE series isolating switches as executive components, and is equipped with an electromechanical integrated operating electrical appliance based on digital circuits. The 5TR series automatic transfer switch electrical appliance is suitable for power source conversion between two power supply sources in single - phase or three - phase power distribution systems with an alternating current of 50Hz, a voltage below 400V, and a rated current below 125A; The 5TR series automatic transfer switch electrical appliance is a motor - driven transfer switch device controlled by a digital controller. According to the relevant standards of EC60364 "Building Electrical Installations", it is suitable for common load power supply systems where the maximum allowable power supply interruption time is > 1.5 seconds.
Ensure the Reliability of System Power Supply
- When the main power supply fails such as power failure, phase failure, and undervoltage, the automatic transfer switch electrical appliance automatically transfers to the standby power supply under the control of the digital controller to ensure the reliability of the system power supply.
Ensure the Reliability of the Equipment Itself
- The controller of the automatic transfer switch electrical appliance can withstand various electrical interference in the industrial environment to the greatest extent, and the motor - driven transfer mechanism that has passed the reliability test can ensure the self - reliability of the automatic transfer switch electrical appliance during operation.
Ensure the Safety of the Power Supply System
- The specially designed controller of the automatic transfer switch electrical appliance can automatically identify overcurrent faults in the power supply system, burnout of executive components, and mechanical faults, and place the power supply executive components in a safe position to ensure the safety of the power supply system.
Ensure Our Environmental Commitment
- The selection of various components and the processing of the automatic transfer switch electrical appliance fully comply with the RoHS standard to realize our environmental commitment.
- Siemens 5TR series ATSE maximizes power supply continuity and safety and optimizes electrical energy management.
- Siemens 5TR series ATSE selects SSJ series miniature circuit breakers, SSP4 heavy - duty miniature circuit breakers or 5TE8 isolating switches, covering current levels of 1 - 125A. The integrated design greatly improves the reliability of the product. Equipped with standard releases, it provides effective protection when faults occur. Multiple mechanical interlocks and electrical interlocks fully ensure the reliability of conversion.
- The 5TR series ATSE provides multiple working modes such as self - reset after power failure, no self - reset after power failure, and manual control. The 5TR series ATSE considers a wider creepage distance and electrical gap from the design perspective, and can withstand higher voltage levels.
- The 5TR series ATSE simultaneously monitors the switch itself for faults such as the operating handle breaking during the conversion process (alarm); or due to long - term operation, burnout occurs inside the switch, and an alarm is issued during the conversion process (this function is optional according to the load situation); or an alarm is issued when the load has a short - circuit (circuit breaker trips). It is convenient for customers to find faults and maintain in a timely manner.
- The 5TR series ATSE has two powerful controllers to provide more choices for users.
- Type A controller (basic type): Supports the conversion between two municipal power supplies, and the conversion delay is adjustable.
- Type B controller (intelligent type): In addition to having all the functions of the Type A controller, it can also realize the conversion between municipal power and generators. The controller panel provides parameter setting and display, and has a fire protection cut - off function.
- Siemens 5TR series ATSE complies with IEC and GB standards, and has passed CCC certification and EMC electromagnetic compatibility testing.
- Multiple working modes and multiple interlocks fully ensure the reliability of power supply conversion.
- Provide a specially designed protective cover for easy transportation, ensuring that the operating mechanism does not deform due to external forces, and is more resistant to destructive operations.
