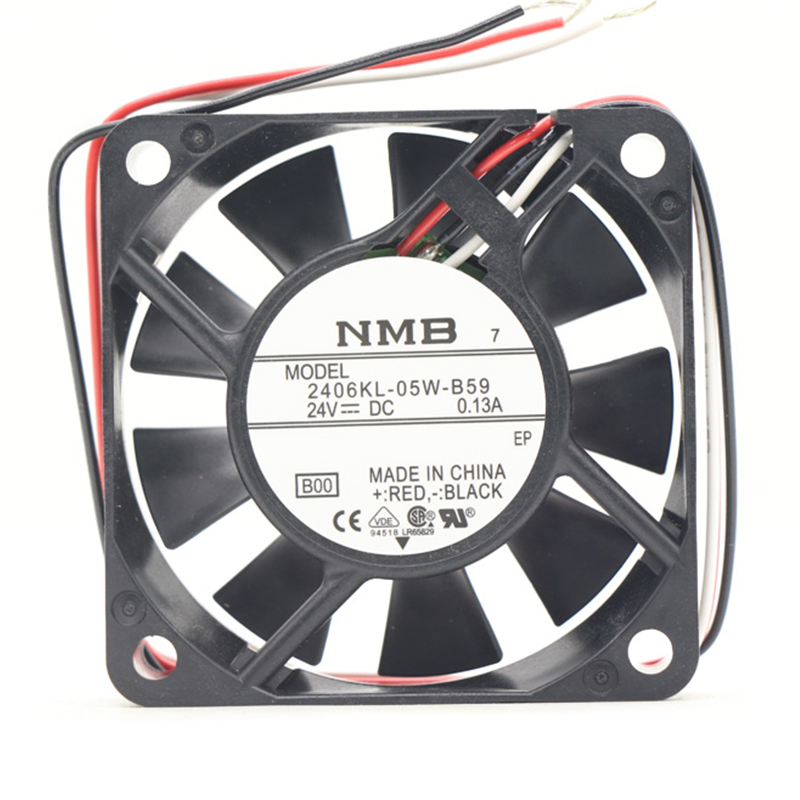

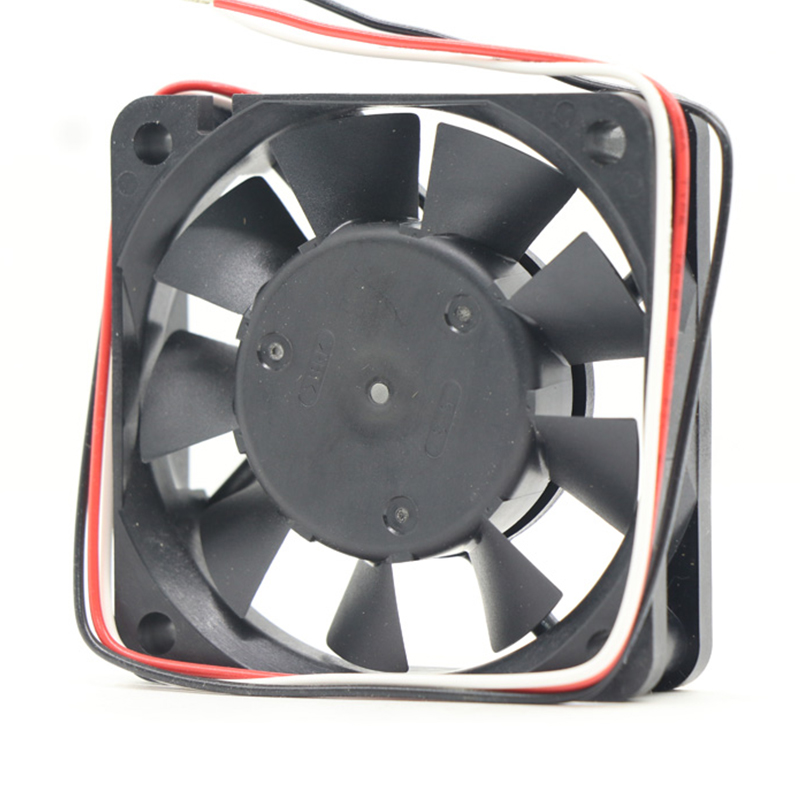

2406KL-05W-B59 NMB Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | NMB | |
| Type： | Axial Fan | |
| Max. Air Flow： | 47.6 m³/h | |
| Voltage Type： | DC | |
| Motor Bearing： | Ball Bearing | |
| Airflow Direction： | V | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 15 mm | |
| Width： | 60 mm | |
| Length： | 60 mm | |
| Noise： | 34 dB | |
| Max. Pressure： | 76 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 3.6 W | |
| Speed： | 6500 RPM | |
| Voltage： | 24 V | |
| Series： | 2406KL |
Application scenarios
-
Wet Room Ventilation
For wet environments without windows, such as bathrooms and toilets, exhaust systems are essential. For this reason, fans are ideal for this applicatiSee more -
Cooling Towers
A cooling tower is a device that uses water and air to dissipate waste heat generated in industry or refrigeration and air conditioning through evaporSee more -
Oil Condensing Technology
In the oil industry, condensation technology is mainly used in oil and gas separation, distillation tower cooling and natural gas processing. Fans becSee more -
Fuel Cells
Due to the wide variety and performance range of fuel cells, they can be used in many different applications, such as mobile applications in mobile phSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
