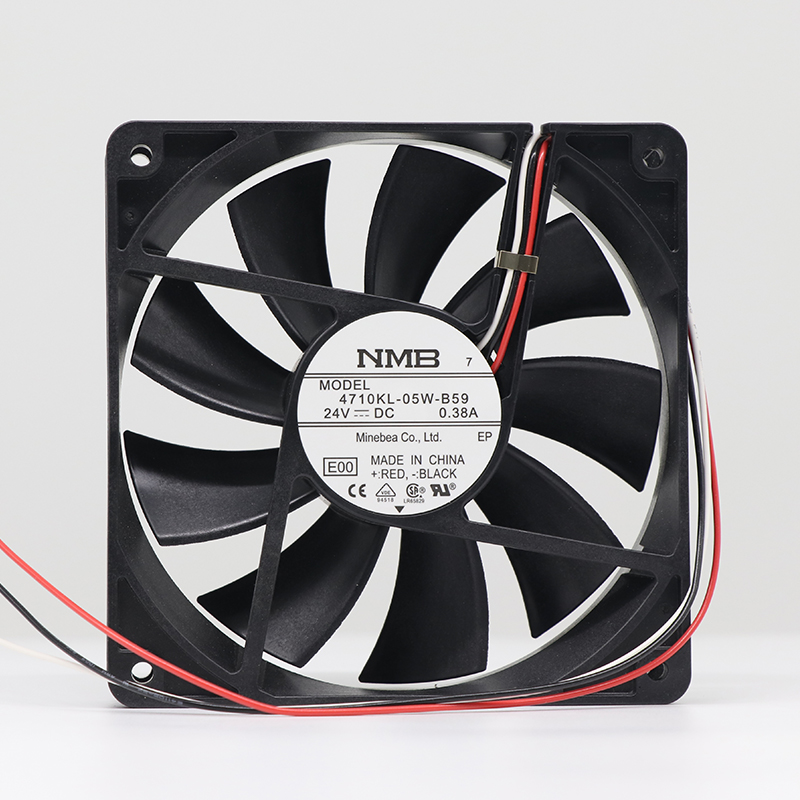

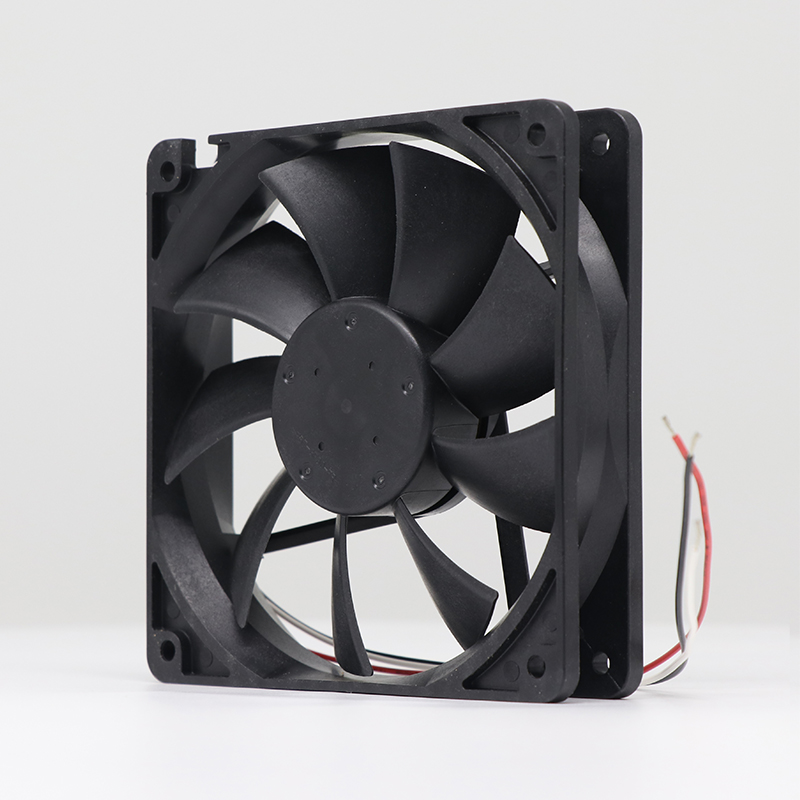

4710KL-05W-B59 NMB Axial Fan

Name: 4710KL-05W-B59 NMB Axial Fan
SKU: ICX-2027356-4710KL05WB59

Brand:

NMB

Type:

Axial Fan

Max. Air Flow:

111.9 m³/h

Noise:

39 dB

Input Power:

2.88 W

Speed:

3600 RPM

Voltage:

24 V

Model:

4710KL-05W-B59

Order Number:

ICX-2027356-4710KL05WB59

Description:

4710KL-05W-B59,NMB,Axial Fan,DC,24V,3600RPM,2.88W,111.9m³/h,70Pa,119x119x25mm,39dB

WhatsApp Inquire Now

Product parameters
Application scenarios
frequently asked questions

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	NMB
Type：	Axial Fan
Max. Air Flow：	111.9 m³/h
Voltage Type：	DC
Motor Bearing：	Ball Bearing
Airflow Direction：	V
Housing Material：	Plastic
Impeller Material：	Plastic
Height：	25 mm
Width：	119 mm
Length：	119 mm
Noise：	39 dB
Max. Pressure：	70 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	2.88 W
Speed：	3600 RPM
Voltage：	24 V
Series：	4710KL

Products with the same attribute : 0

Show details

Application scenarios

Frequently asked questions

Characteristics and classification of axial flow fans

Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
