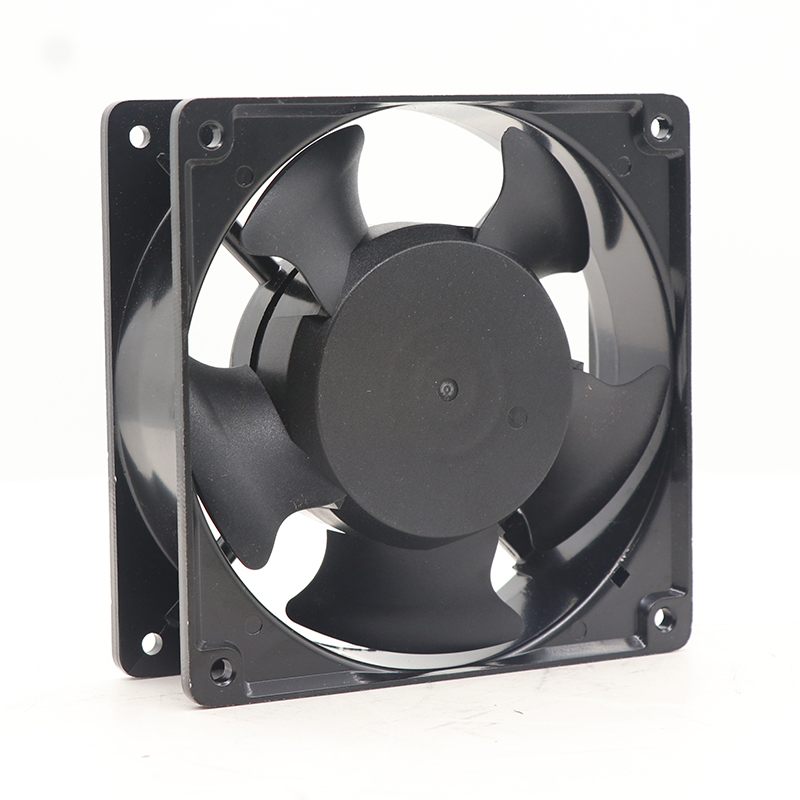

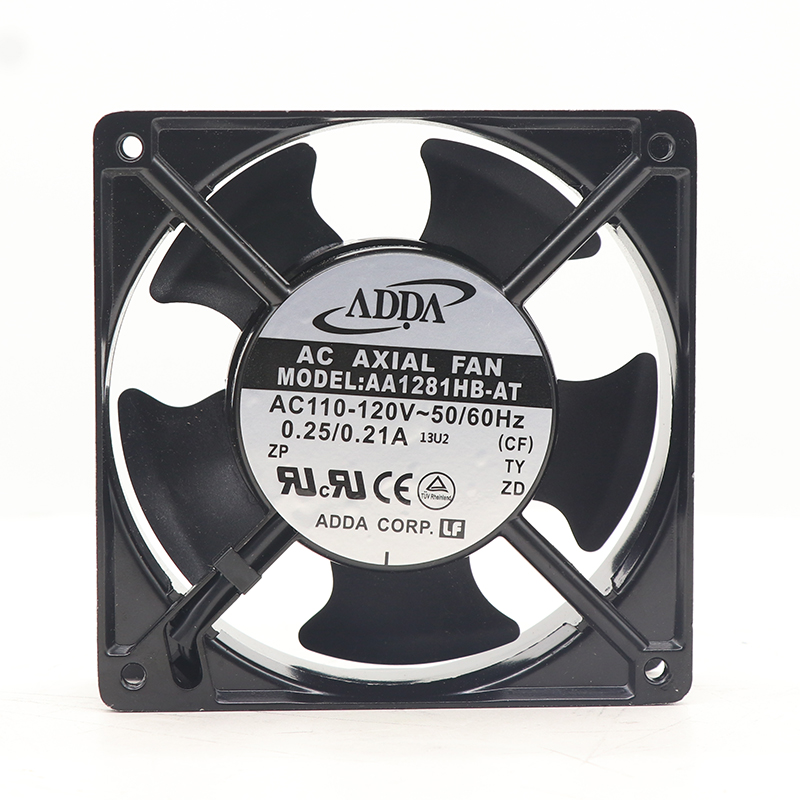

AA1281HB-AT ADDA Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ADDA | |
| Type： | Axial Fan | |
| Max. Air Flow： | 165 m³/h | |
| Voltage Type： | AC | |
| Conformity with Standards： | CE | |
| Motor Bearing： | Double Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | V | |
| Housing Material： | Aluminum Alloy Frame + PBT Plastic | |
| Impeller Material： | Aluminum Alloy | |
| Height： | 38 mm | |
| Width： | 120 mm | |
| Length： | 120 mm | |
| Noise： | 44.5 dB | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Speed： | 2400 RPM | |
| Voltage Range： | ±10% | |
| Voltage： | 115 V | |
| Series： | AA12038 |
Application scenarios
-
Precision Air-conditioning Units
Precision air conditioning is an industrial-grade air conditioning system designed for high-precision environmental control. It mainly serves data cenSee more -
Condensers
In the condenser, the fan (especially the fan in the air-cooled condenser) is a key component to accelerate heat dissipation, improve energy efficiencSee more -
Tube Radiant Heaters
Heating large buildings requires a lot of energy, so it is particularly important to heat only what is needed and not lose heat when the door is openeSee more -
Tunnel Ovens
The fan achieves precise temperature control and uniform heating through high-speed circulation in the tunnel oven. Its forced airflow penetrates theSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
