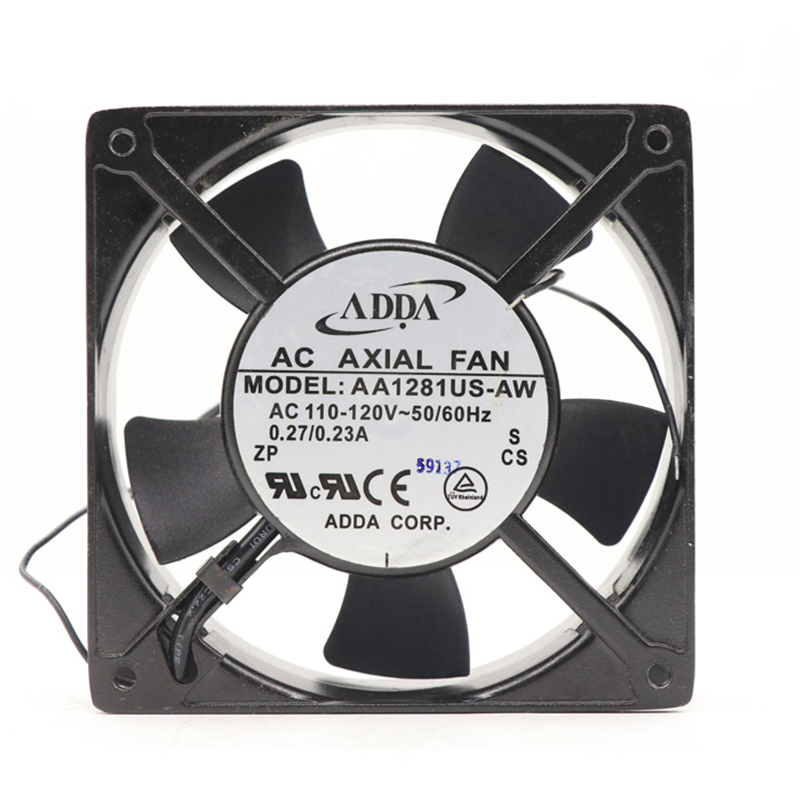

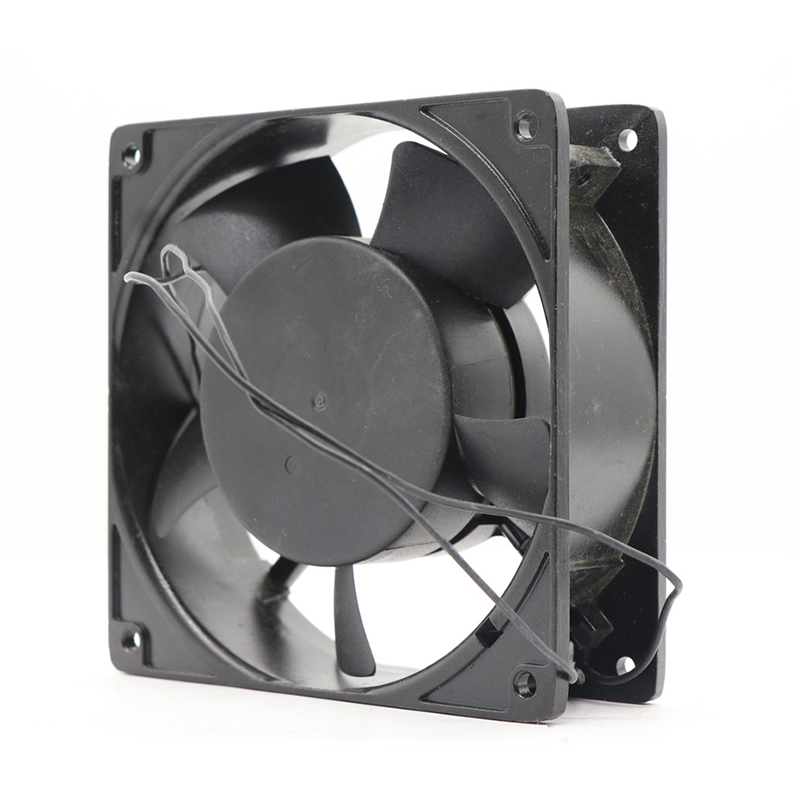

AA1281US-AW ADDA Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ADDA | |
| Type： | Axial Fan | |
| Max. Air Flow： | 163 m³/h | |
| Voltage Type： | AC | |
| Motor Bearing： | Ball Bearing | |
| Airflow Direction： | V | |
| Housing Material： | Plastic Frame | |
| Impeller Material： | Plastic | |
| Height： | 38 mm | |
| Width： | 120 mm | |
| Length： | 120 mm | |
| Noise： | 46.4 dB | |
| Max. Ambient Temperature： | 60 ℃ | |
| Speed： | 2400 RPM | |
| Voltage Range： | ±10% | |
| Voltage： | 110/120 V | |
| Series： | AA12038 |
Application scenarios
-
Battery Energy Storage System
Battery energy storage systems play a key role in stabilizing the power grid and storing excess energy. Reliable cooling can not only effectively prevSee more -
Traditional Gas Heating
The fan is the core component of the traditional gas heating system to achieve efficient combustion and safe operation. Its selection needs to focus oSee more -
Commercial Dryers
The fan is the core component of a commercial clothes dryer to achieve efficient drying, uniform heating, energy saving and consumption reduction, andSee more -
Convection Ovens
The fan achieves efficient and uniform heating in a convection oven by forced circulation of hot air. Its impeller rotates at high speed to drive airfSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
