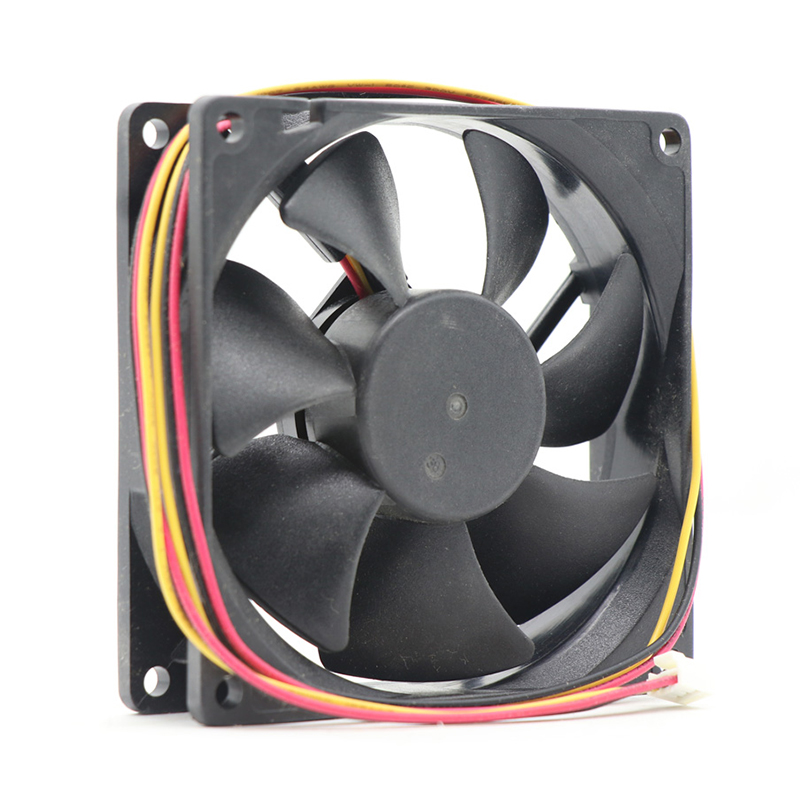

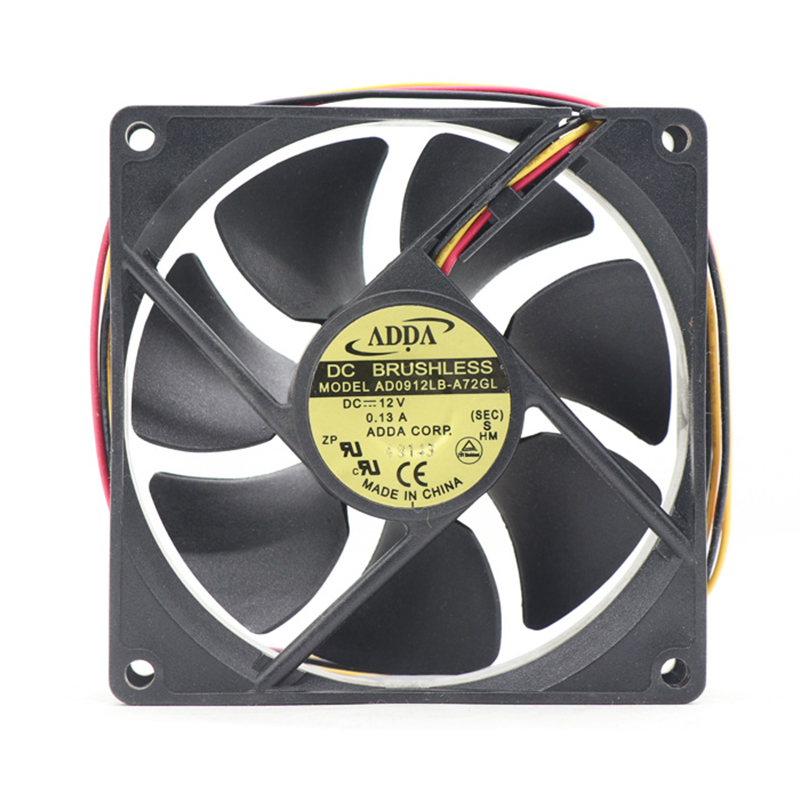

AD0912LB-A72GL ADDA Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ADDA | |
| Type： | Axial Fan | |
| Max. Air Flow： | 34 m³/h | |
| Voltage Type： | DC | |
| Conformity with Standards： | UL, CUL, TUV, CE | |
| Motor Bearing： | Sliding Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | V | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 25 mm | |
| Width： | 92 mm | |
| Length： | 92 mm | |
| Noise： | 22.8 dB | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Speed： | 2000 RPM | |
| Voltage： | 12 V | |
| Series： | AD09025 |
Application scenarios
-
Heat Pumps
Heat pump is a device that transfers heat from a low-temperature environment to a high-temperature environment by consuming a small amount of electricSee more -
Air Purifiers
Air purifiers remove dust, pollen and bacteria from indoor air. A fan draws outside air into the air purifier, where it is purified through various fiSee more -
Precision Air-conditioning Units
Precision air conditioning is an industrial-grade air conditioning system designed for high-precision environmental control. It mainly serves data cenSee more -
Fan Retrofit
Fan retrofit is an engineering practice to improve the comprehensive performance of the existing fan system in terms of efficiency, energy consumptionSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
