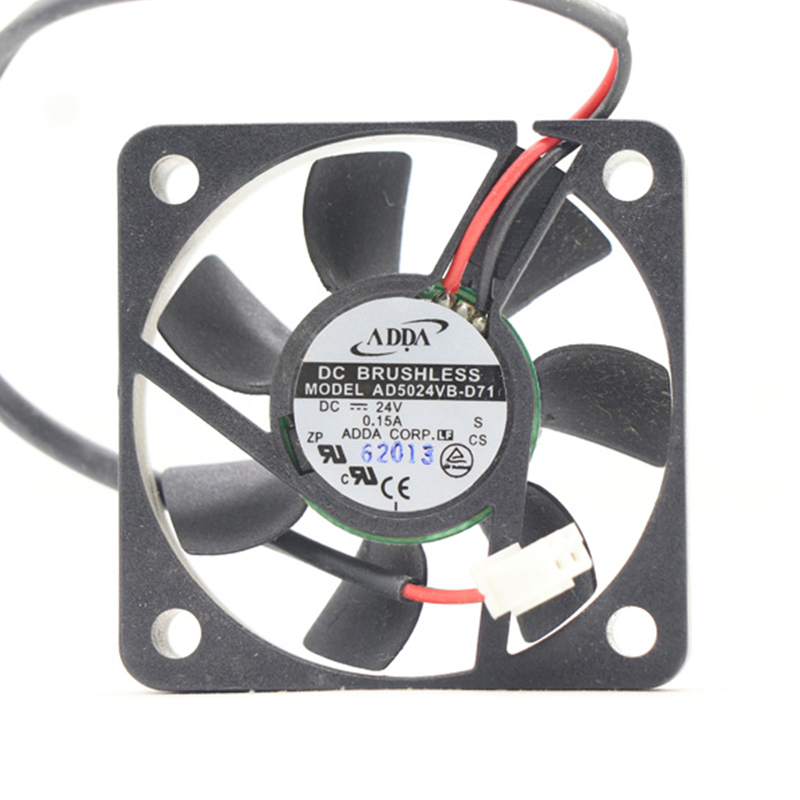

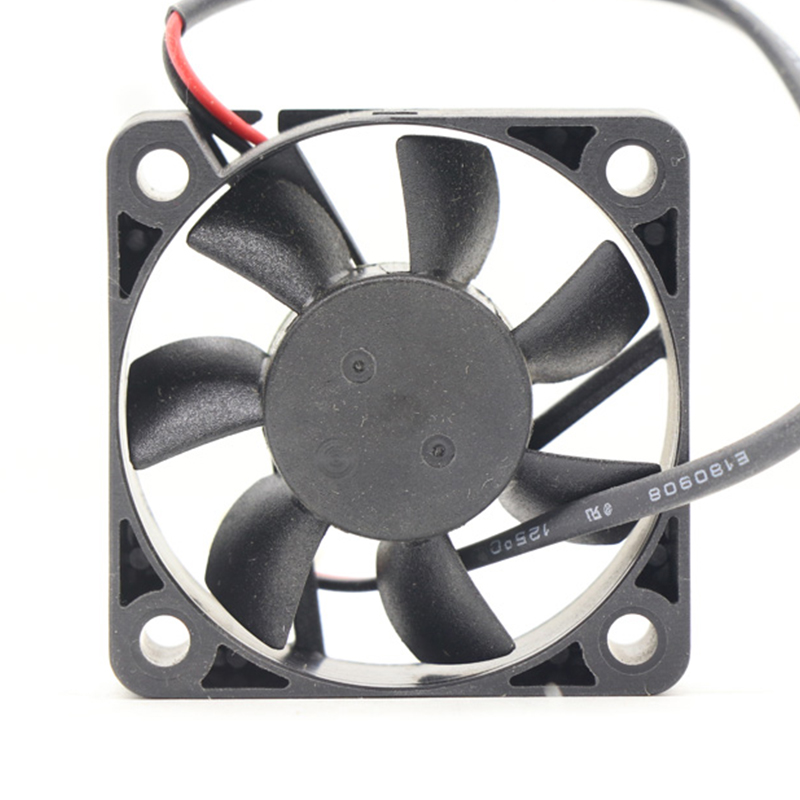

AD5024VB-D71 ADDA Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ADDA | |
| Type： | Axial Fan | |
| Max. Air Flow： | 14.3 m³/h | |
| Voltage Type： | DC | |
| Conformity with Standards： | UL, CUL, TUV, CE | |
| Motor Bearing： | Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | V | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 15 mm | |
| Width： | 50 mm | |
| Length： | 50 mm | |
| Noise： | 30.5 dB | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Speed： | 6000 RPM | |
| Voltage： | 24 V | |
| Series： | AD05015 |
Application scenarios
-
Distributed Ventilation System
The distributed ventilation system is a decentralized air treatment solution. Different from the traditional central ventilation system, it controls tSee more -
Precision Air-conditioning Units
Precision air conditioning is an industrial-grade air conditioning system designed for high-precision environmental control. It mainly serves data cenSee more -
Air Heaters
The fan is a core component in the air heater that enhances heat transfer, ensures safety and improves energy efficiency. It ensures efficient and uniSee more -
Data Center
Fans are key components of the data center's cooling system, directly affecting server stability, power usage effectiveness (PUE) and operation and maSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
