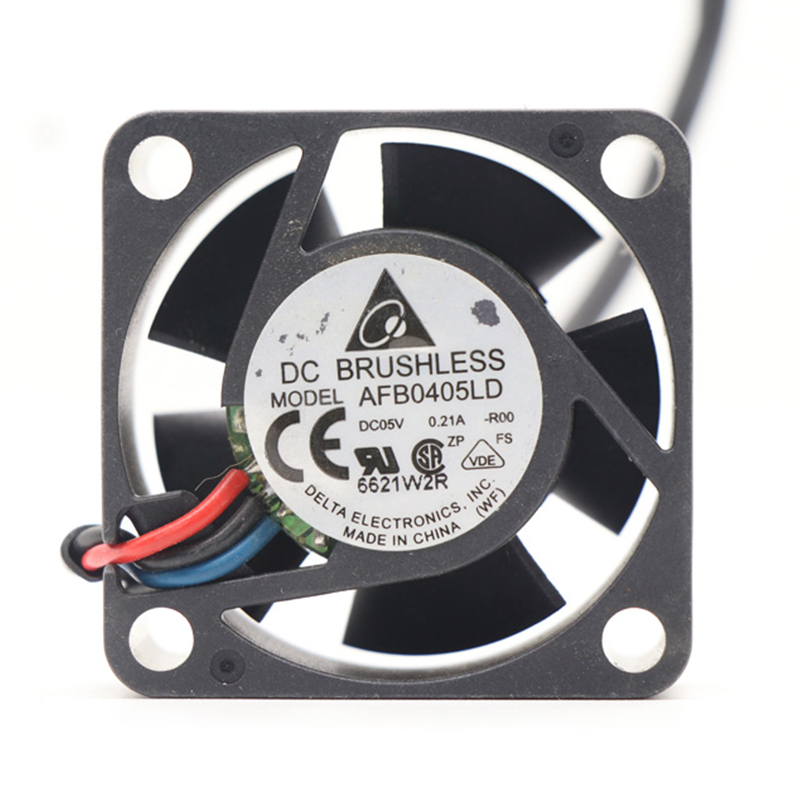

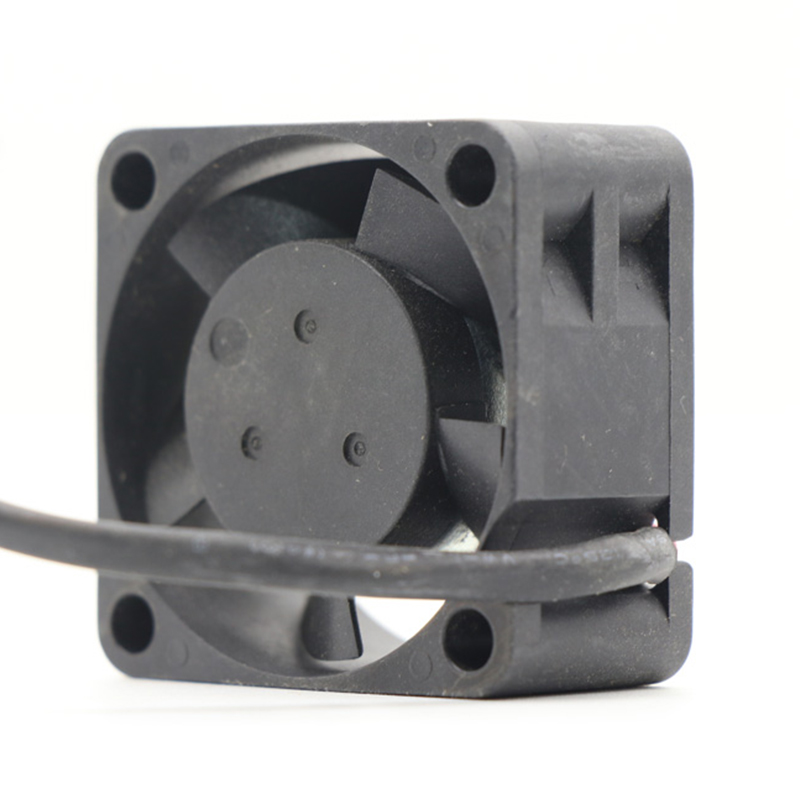

AFB0405LD Delta Compact Fan

Name: AFB0405LD Delta Compact Fan
SKU: ICX-2027836-AFB0405LD

Brand:

Delta

Type:

Compact Fan

Max. Air Flow:

5.3 m³/h

Noise:

25 dB

Input Power:

0.6 W

Speed:

9000 RPM

Voltage:

5 V

Model:

AFB0405LD

Order Number:

ICX-2027836-AFB0405LD

Description:

AFB0405LD,Delta,Compact Fan,DC,5V,9000RPM,0.6W,5.3m³/h,90Pa,40x40x10mm,25dB

WhatsApp Inquire Now

Product parameters
Application scenarios

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Delta
Type：	Compact Fan
Max. Air Flow：	5.3 m³/h
Voltage Type：	DC
Motor Bearing：	Ball Bearing
Direction of Rotation：	Clockwise
Airflow Direction：	Axial
Housing Material：	Plastic
Impeller Material：	Plastic
Height：	10 mm
Width：	40 mm
Length：	40 mm
Noise：	25 dB
Max. Pressure：	90 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	0.6 W
Speed：	9000 RPM
Voltage Range：	4.5-5.5
Voltage：	5 V
Series：	AFB
