Home HVAC Ventilation Equipment Ventilation and Cooling Fan

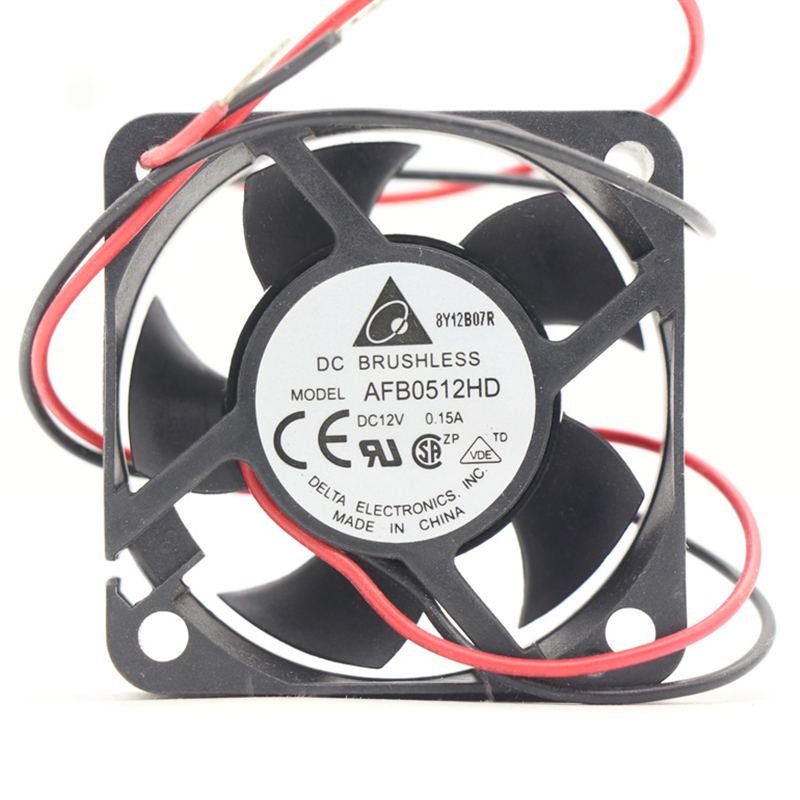

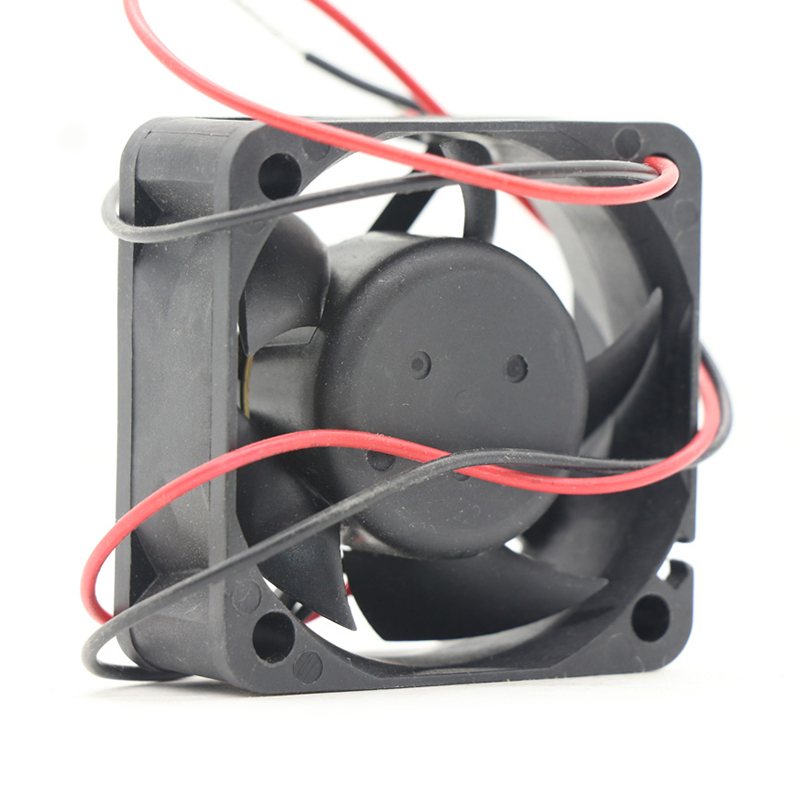

AFB0512HD Delta Compact Fan

Name: AFB0512HD Delta Compact Fan
SKU: ICX-2027772-AFB0512HD

Brand:

Delta

Type:

Compact Fan

Max. Air Flow:

10.5 m³/h

Noise:

29 dB

Input Power:

1.2 W

Speed:

8000 RPM

Voltage:

12 V

Model:

AFB0512HD

Order Number:

ICX-2027772-AFB0512HD

Description:

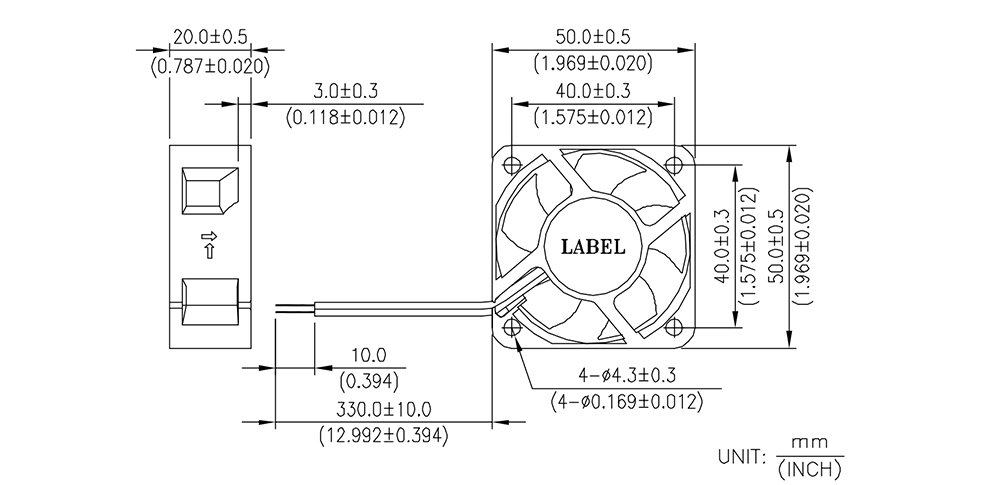

AFB0512HD,Delta,Compact Fan,DC,12V,8000RPM,1.2W,10.5m³/h,95Pa,50x50x10mm,29dB

WhatsApp Inquire Now

Product parameters
Details
Application scenarios

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Delta
Type：	Compact Fan
Max. Air Flow：	10.5 m³/h
Voltage Type：	DC
Motor Bearing：	Ball Bearing
Direction of Rotation：	Clockwise
Airflow Direction：	Axial
Housing Material：	Plastic
Impeller Material：	Plastic
Height：	10 mm
Width：	50 mm
Length：	50 mm
Noise：	29 dB

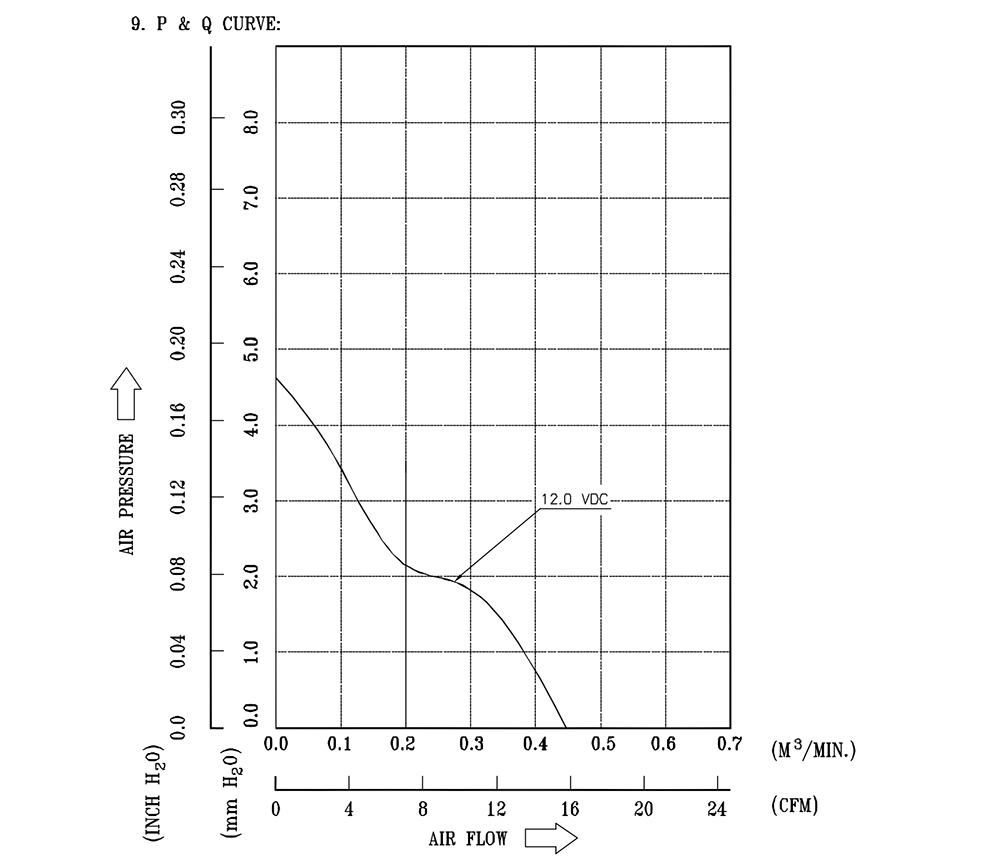

Max. Pressure：	95 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	1.2 W
Speed：	8000 RPM
Voltage Range：	10.8-13.2
Voltage：	12 V
Series：	AFB
