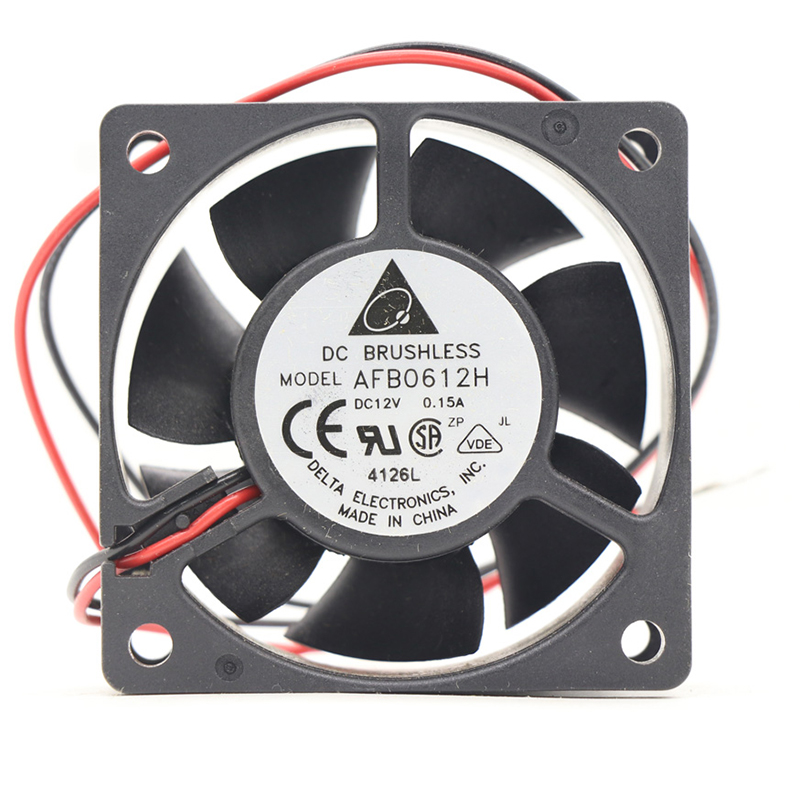

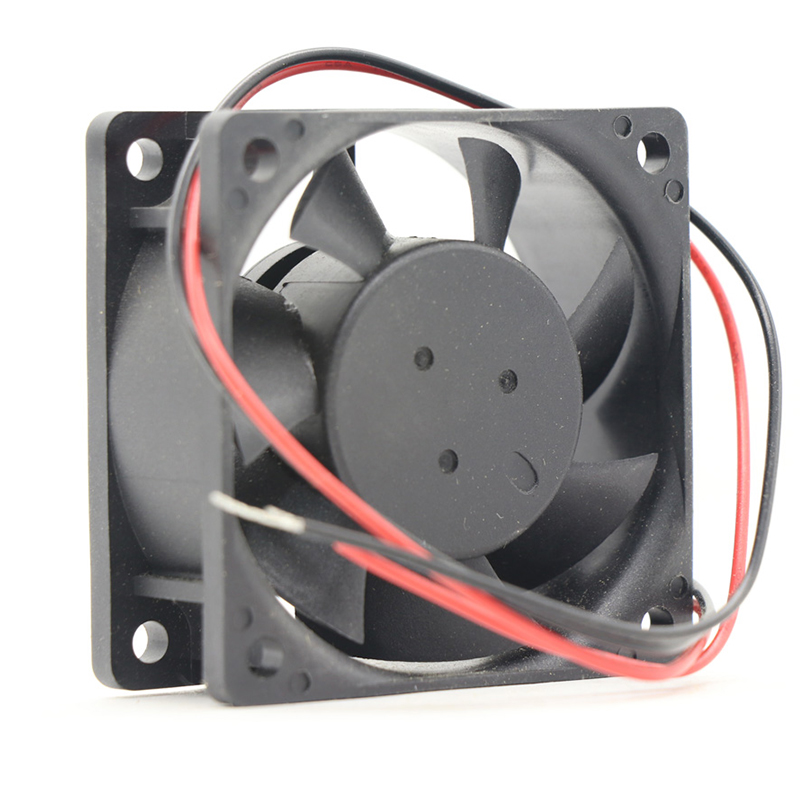

AFB0612H Delta Compact Fan

Name: AFB0612H Delta Compact Fan
SKU: ICX-2027729-AFB0612H

Brand:

Delta

Type:

Compact Fan

Max. Air Flow:

16.3 m³/h

Noise:

35 dB

Input Power:

1.68 W

Speed:

7000 RPM

Voltage:

12 V

Model:

AFB0612H

Order Number:

ICX-2027729-AFB0612H

Description:

AFB0612H,Delta,Compact Fan,DC,12V,7000RPM,1.68W,16.3m³/h,115Pa,60x60x10mm,35dB

WhatsApp Inquire Now

Product parameters
Application scenarios

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Delta
Type：	Compact Fan
Max. Air Flow：	16.3 m³/h
Voltage Type：	DC
Motor Bearing：	Ball Bearing
Direction of Rotation：	Clockwise
Airflow Direction：	Axial
Housing Material：	Plastic
Impeller Material：	Plastic
Height：	10 mm
Width：	60 mm
Length：	60 mm
Noise：	35 dB
Max. Pressure：	115 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	1.68 W
Speed：	7000 RPM
Voltage Range：	10.8-13.2
Voltage：	12 V
Series：	AFB
