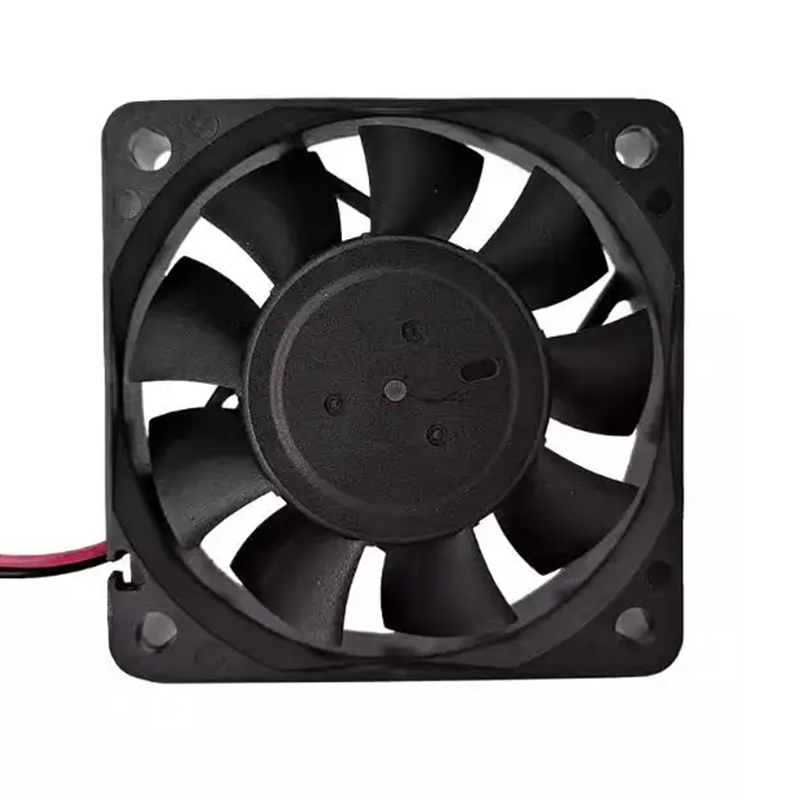

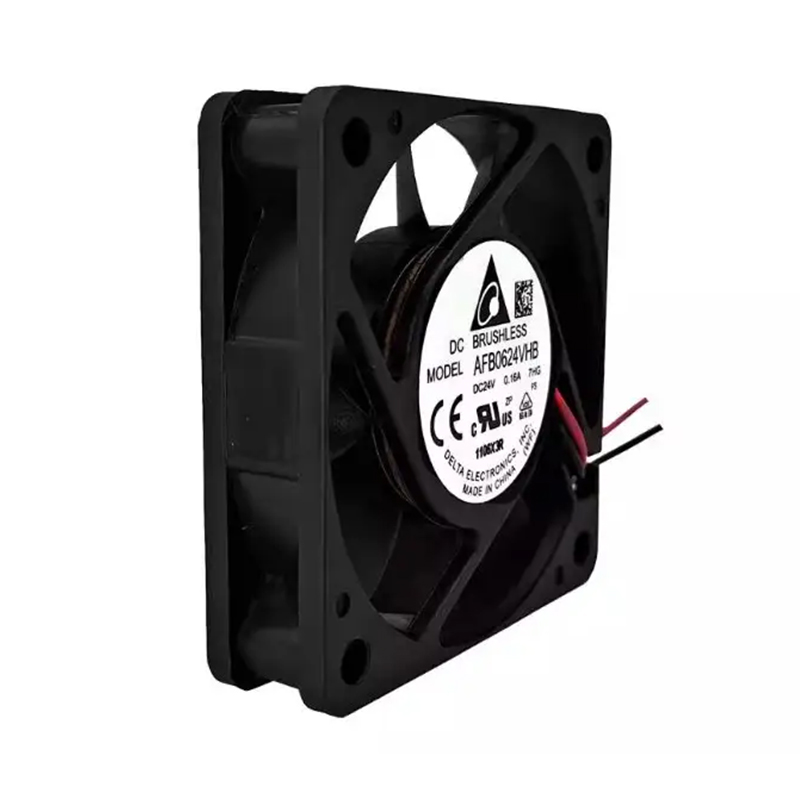

AFB0624VHB Delta Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delta | |
| Type： | Axial Fan | |
| Max. Air Flow： | 38.5 m³/h | |
| Voltage Type： | DC | |
| Motor Bearing： | Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | Axial | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 25 mm | |
| Width： | 60 mm | |
| Length： | 60 mm | |
| Noise： | 40 dB | |
| Max. Pressure： | 79 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 3.6 W | |
| Speed： | 2600 RPM | |
| Voltage Range： | 14-27.6 | |
| Voltage： | 24 V | |
| Series： | AFB |
Details
Application scenarios
-
FanGrids
FanGrid is a modular ventilation/cooling system that integrates multiple fans in a grid array. It is designed for high-density cooling, precise airfloSee more -
Electrical Heater
The fan is a key component for efficient heating, temperature uniformity and safe operation of electric heaters. It optimizes heat transfer, preventsSee more -
ICT and Electronics Industry
Fans play a key role in heat management, environmental control, equipment protection and energy efficiency optimization in the ICT and electronics indSee more -
Extractor Hoods
The fan is the "heart" of the extractor hoods, which directly determines its exhaust efficiency, noise control, energy consumption level and service lSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
