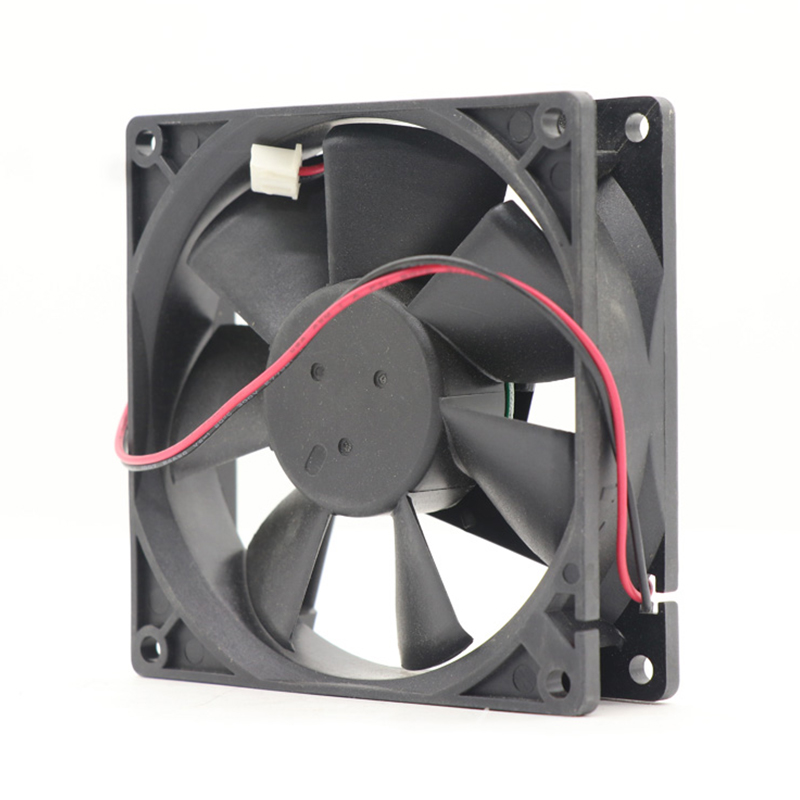

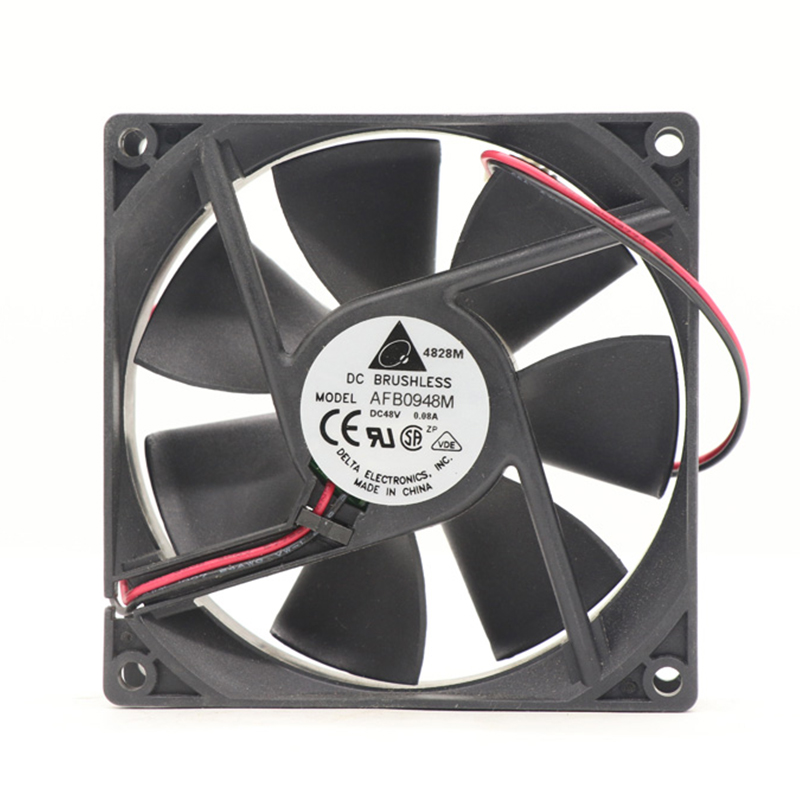

AFB0948M Delta Axial Fan

Name: AFB0948M Delta Axial Fan
SKU: ICX-2027460-AFB0948M

Brand:

Delta

Type:

Axial Fan

Max. Air Flow:

160 m³/h

Noise:

45 dB

Input Power:

4.8 W

Speed:

3300 RPM

Voltage:

48 V

Model:

AFB0948M

Order Number:

ICX-2027460-AFB0948M

Description:

AFB0948M,Delta,Axial Fan,DC,48V,3300RPM,4.8W,160m³/h,160Pa,92x92x25mm,45dB

WhatsApp Inquire Now

Product parameters
Details
Application scenarios
frequently asked questions

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Delta
Type：	Axial Fan
Max. Air Flow：	160 m³/h
Voltage Type：	DC
Motor Bearing：	Ball Bearing
Direction of Rotation：	Clockwise
Airflow Direction：	Axial
Housing Material：	Plastic
Impeller Material：	Plastic
Height：	25 mm
Width：	92 mm
Length：	92 mm
Noise：	45 dB
Max. Pressure：	160 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	4.8 W
Speed：	3300 RPM
Voltage Range：	36-57.6
Voltage：	48 V
Series：	AFB

Products with the same attribute : 0

Show details

Details

Application scenarios

Frequently asked questions

Characteristics and classification of axial flow fans

Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
