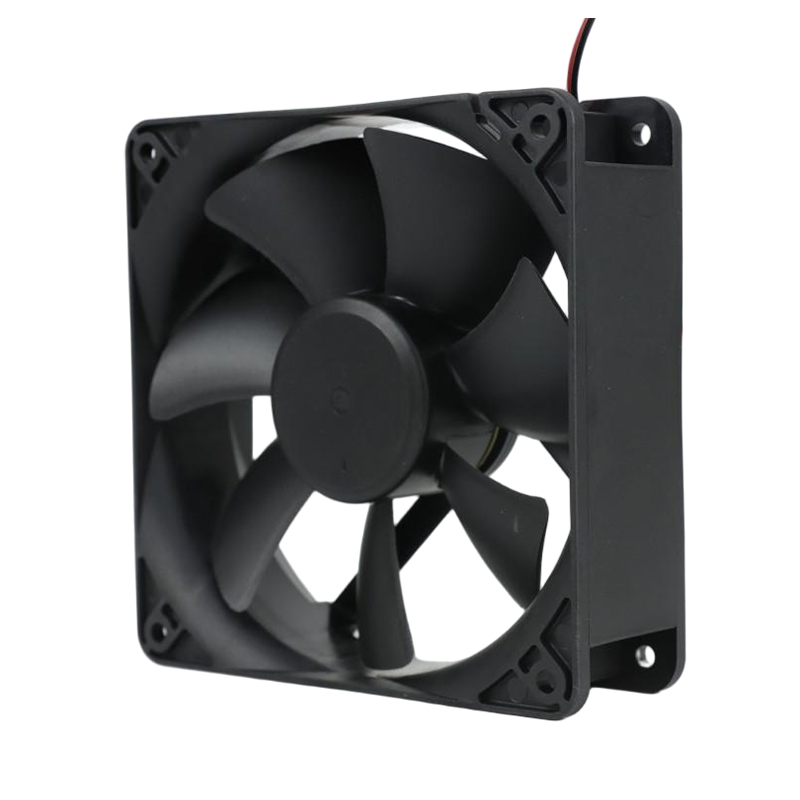

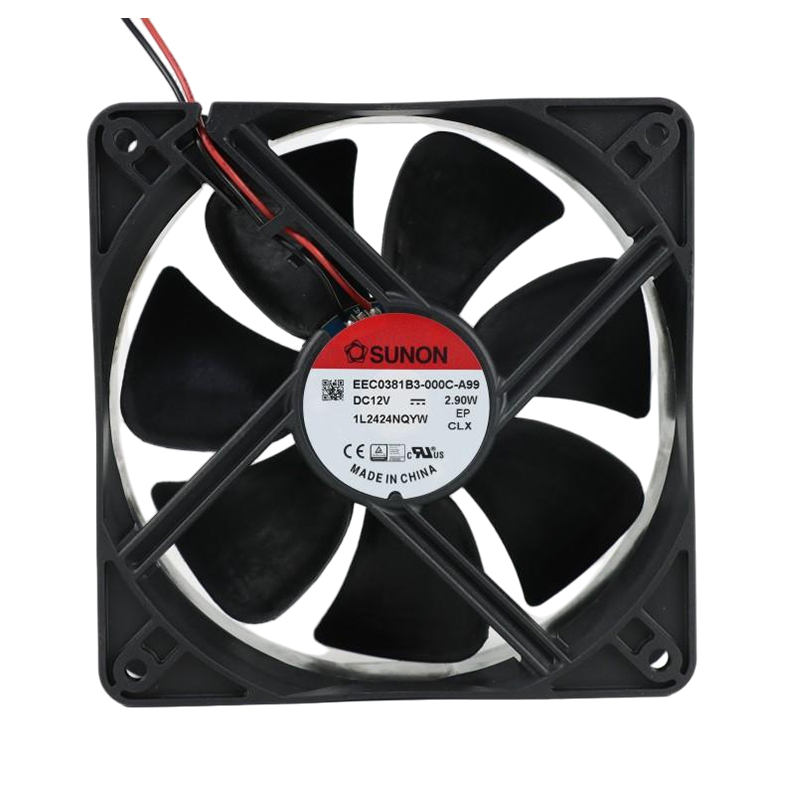

EEC0381B3-000C-A99 SUNON Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | SUNON | |
| Type： | Axial Fan | |
| Max. Air Flow： | 180 m³/h | |
| Voltage Type： | DC | |
| Degree of Protection： | IP55 | |
| Conformity with Standards： | UL、TÜV、CE | |
| Motor Bearing： | Double Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Housing Material： | SECC | |
| Impeller Material： | PA66+30%GF | |

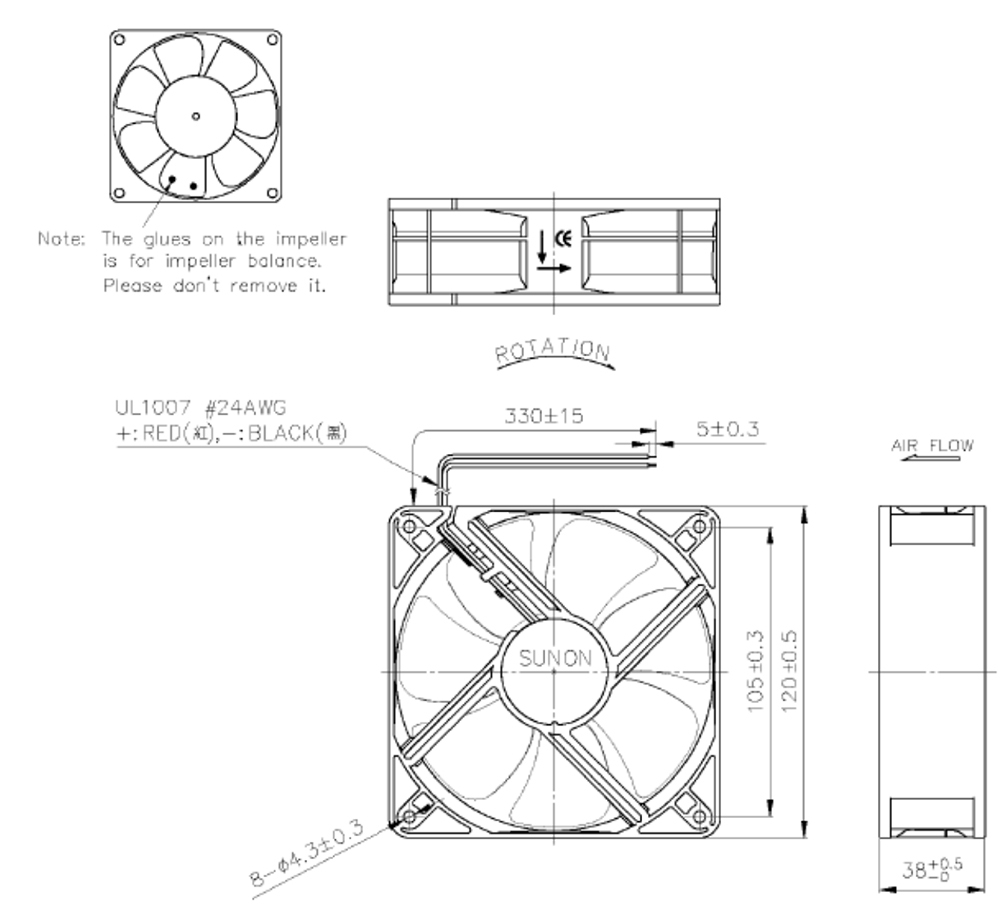

| Height： | 38 mm | |
| Width： | 120 mm | |
| Length： | 120 mm | |
| Noise： | 35 dB | |

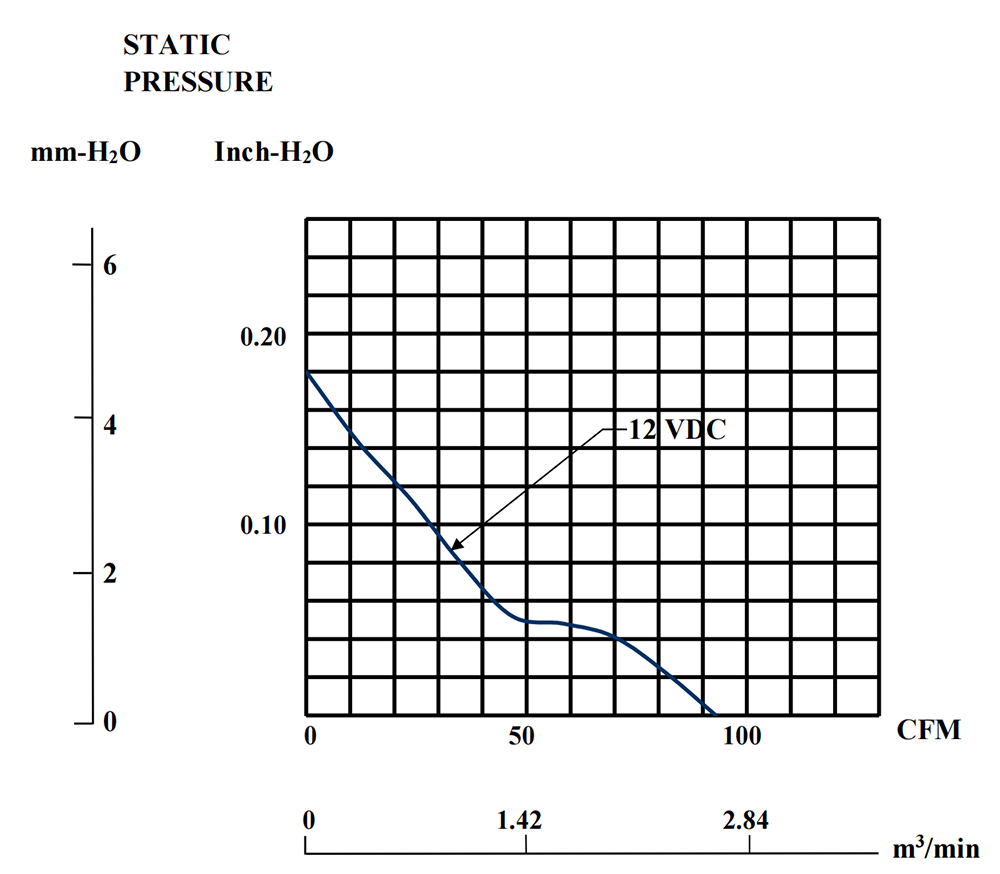

| Max. Pressure： | 70 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 4.5 W | |
| Speed： | 3000 RPM | |
| Voltage： | 24 V | |
| Series： | EEC |
Details
Application scenarios
-
Fan Retrofit
Fan retrofit is an engineering practice to improve the comprehensive performance of the existing fan system in terms of efficiency, energy consumptionSee more -
Display Cabinets
Fans are key components for display cabinets (refrigerated cabinets, freezers, air curtain cabinets, etc.) to achieve precise temperature control, uniSee more -
Gas and Oil
Fans play a key role in gas transportation, process cooling, safety protection and environmental protection in the natural gas and oil industry, and rSee more -
Tunnel Ovens
The fan achieves precise temperature control and uniform heating through high-speed circulation in the tunnel oven. Its forced airflow penetrates theSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
