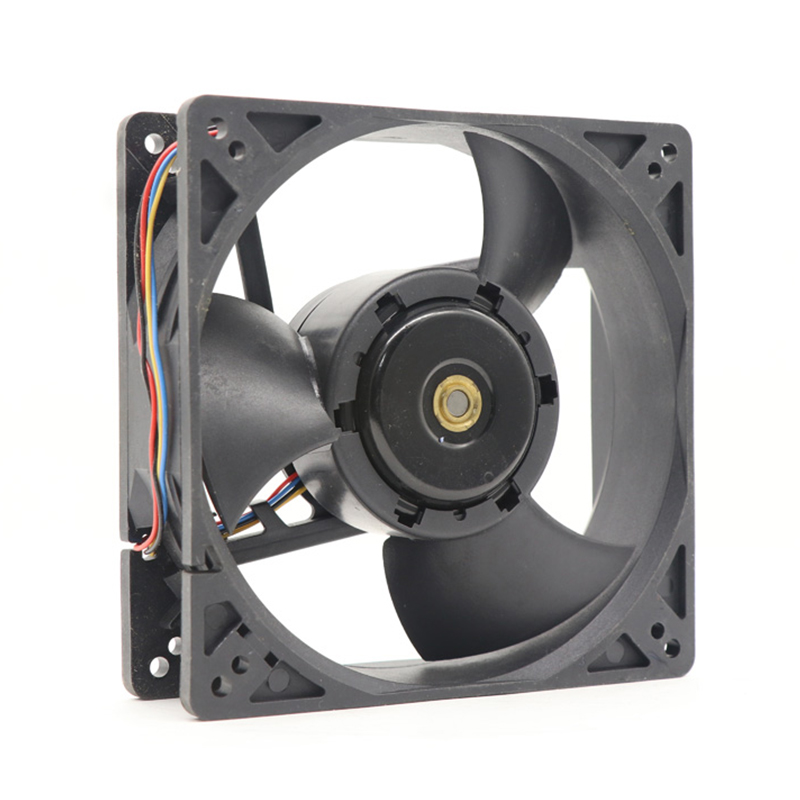

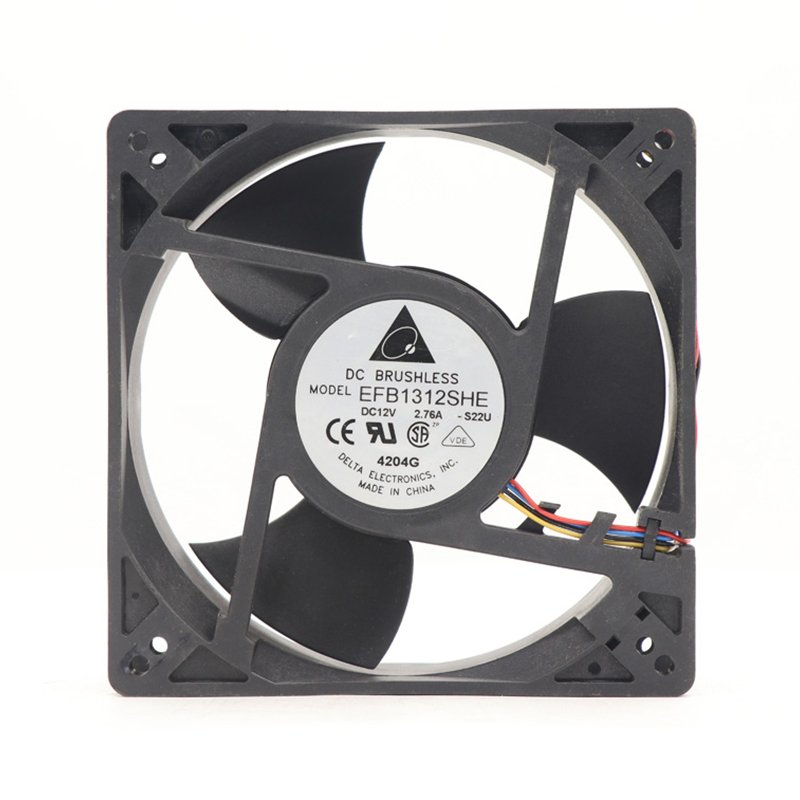

EFB1312SHE-S22U Delta Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delta | |
| Type： | Axial Fan | |
| Max. Air Flow： | 320 m³/h | |
| Voltage Type： | DC | |
| Motor Bearing： | Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | Axial | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 38 mm | |
| Width： | 127 mm | |
| Length： | 127 mm | |
| Noise： | 52 dB | |
| Max. Pressure： | 280 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 14.4 W | |
| Speed： | 3600 RPM | |
| Voltage Range： | 10.8-13.2 | |
| Voltage： | 12 V | |
| Series： | EFB |
Application scenarios
-
Distributed Ventilation System
The distributed ventilation system is a decentralized air treatment solution. Different from the traditional central ventilation system, it controls tSee more -
Beverage Cabinets
The fan is the core component of the beverage cabinet to achieve precise temperature control, rapid cooling and efficient display, which directly affeSee more -
Tube Radiant Heaters
Heating large buildings requires a lot of energy, so it is particularly important to heat only what is needed and not lose heat when the door is openeSee more -
Commercial Dishwashers
The fan is the core component of commercial dishwashers to achieve efficient drying, energy optimization and equipment stability, especially in high-iSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
