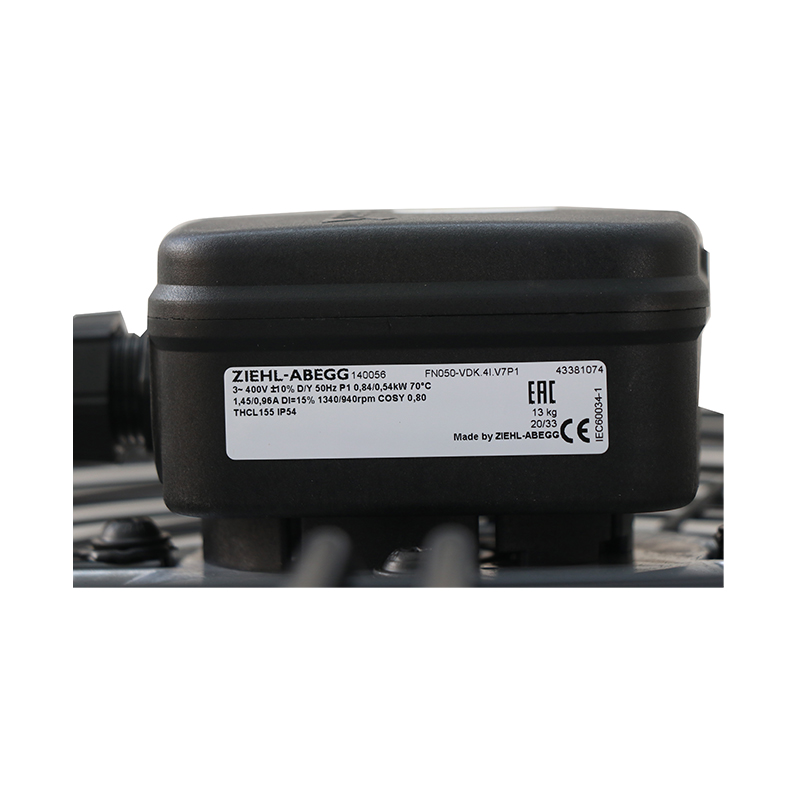

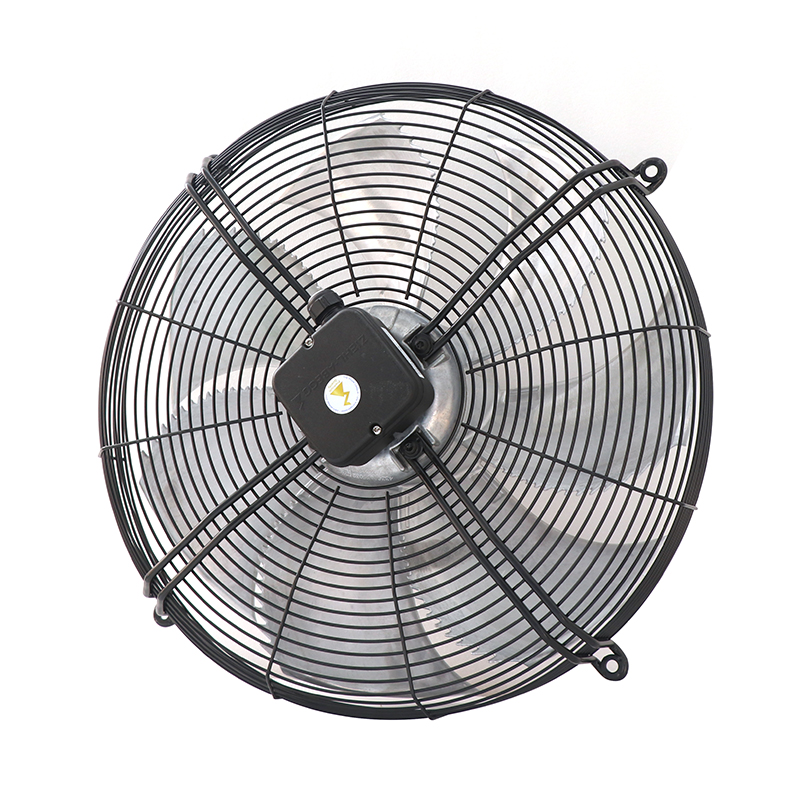

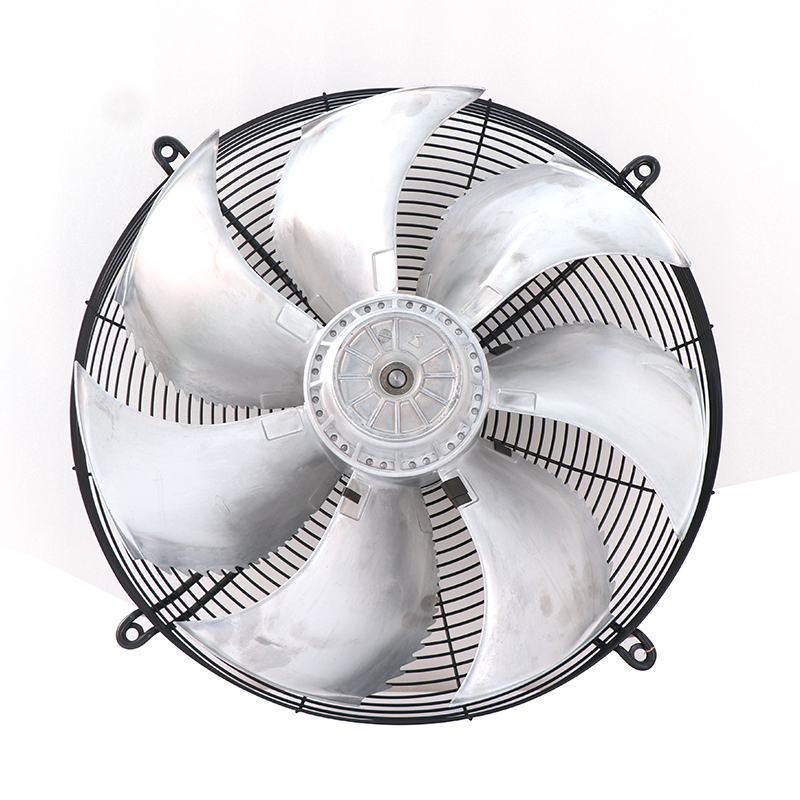

FN050-VDK.4I.V7P1 Ziehl-Abegg Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ZIEHL-ABEGG | |
| Type： | Axial Fan | |
| Max. Air Flow： | 9350 m³/h | |
| Voltage Type： | AC | |
| Degree of Protection： | IP54 | |
| Housing Material： | Aluminum | |
| Impeller Material： | Aluminum | |
| Length： | ∅500 mm | |
| Noise： | 50 dB | |
| Max. Ambient Temperature： | 70 ℃ | |
| Input Power： | 540/840 W | |
| Speed： | 940/1340 RPM | |
| Voltage： | 400 V | |
| Series： | FN050 |
Details
Application scenarios
-
Greenhouse
In greenhouses, fans circulate air to provide the necessary growth environment for crops. Fans achieve precise control of temperature, humidity, CO₂See more -
Air Heaters
The fan is a core component in the air heater that enhances heat transfer, ensures safety and improves energy efficiency. It ensures efficient and uniSee more -
Process Cooling
The fan is the core of process cooling system efficiency, safety and energy saving. It achieves efficient heat exchange, precise temperature control aSee more -
Hybrid Systems
Fans play a key role in thermal management, energy efficiency optimization and system reliability assurance in hybrid power systems, especially when bSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
