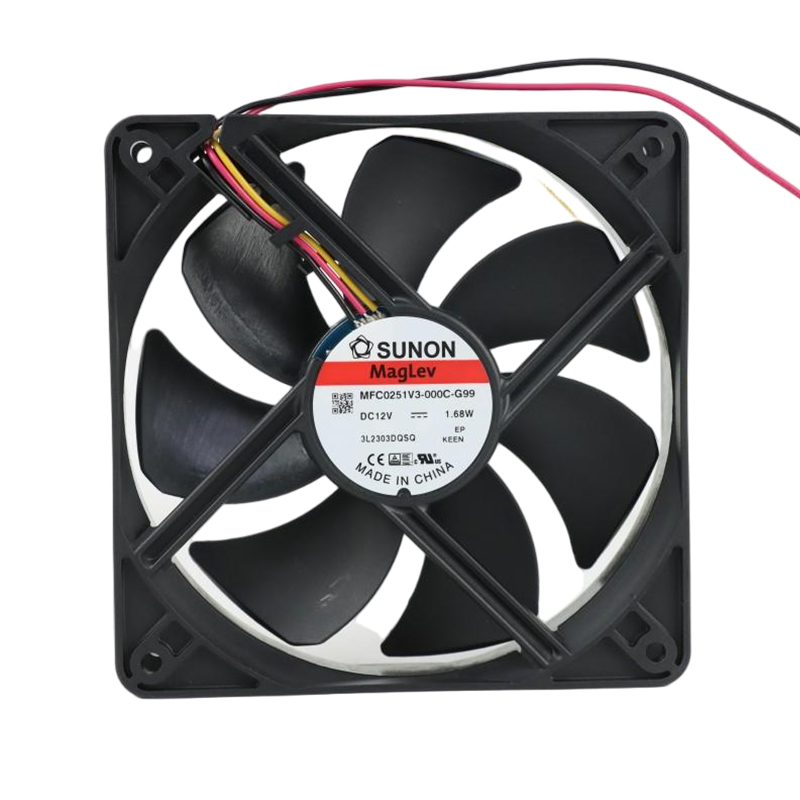

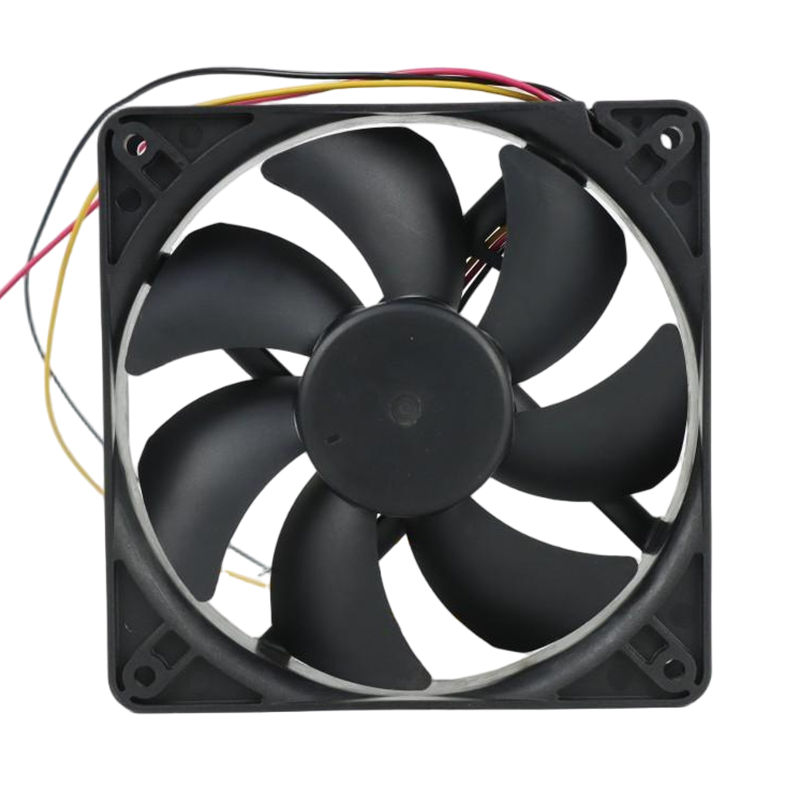

MFC0251V3-000C-G99 SUNON Axial Fan

Name: MFC0251V3-000C-G99 SUNON Axial Fan
SKU: ICX-2027201-MFC0251V3000CG99

Brand:

SUNON

Type:

Axial Fan

Max. Air Flow:

180 m³/h

Noise:

35 dB

Input Power:

4.5 W

Speed:

3000 RPM

Voltage:

24 V

Model:

MFC0251V3-000C-G99

Order Number:

ICX-2027201-MFC0251V3000CG99

Description:

MFC0251V3-000C-G99,SUNON,Axial Fan,DC,24V,3000RPM,4.5W,180m³/h,70Pa,120x120x25mm,35dB

WhatsApp Inquire Now

Product parameters
Application scenarios
frequently asked questions

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	SUNON
Type：	Axial Fan
Max. Air Flow：	180 m³/h
Voltage Type：	DC
Degree of Protection：	IP55
Conformity with Standards：	UL、TÜV、CE
Motor Bearing：	Double Ball Bearing
Direction of Rotation：	Clockwise
Housing Material：	SECC
Impeller Material：	PA66+30%GF
Height：	25 mm
Width：	120 mm
Length：	120 mm
Noise：	35 dB
Max. Pressure：	70 Pa
Max. Ambient Temperature：	70 ℃
Min. Ambient Temperature：	-10 ℃
Input Power：	4.5 W
Speed：	3000 RPM
Voltage：	24 V
Series：	MFC

Products with the same attribute : 0

Show details

Application scenarios

Frequently asked questions

Characteristics and classification of axial flow fans

Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
