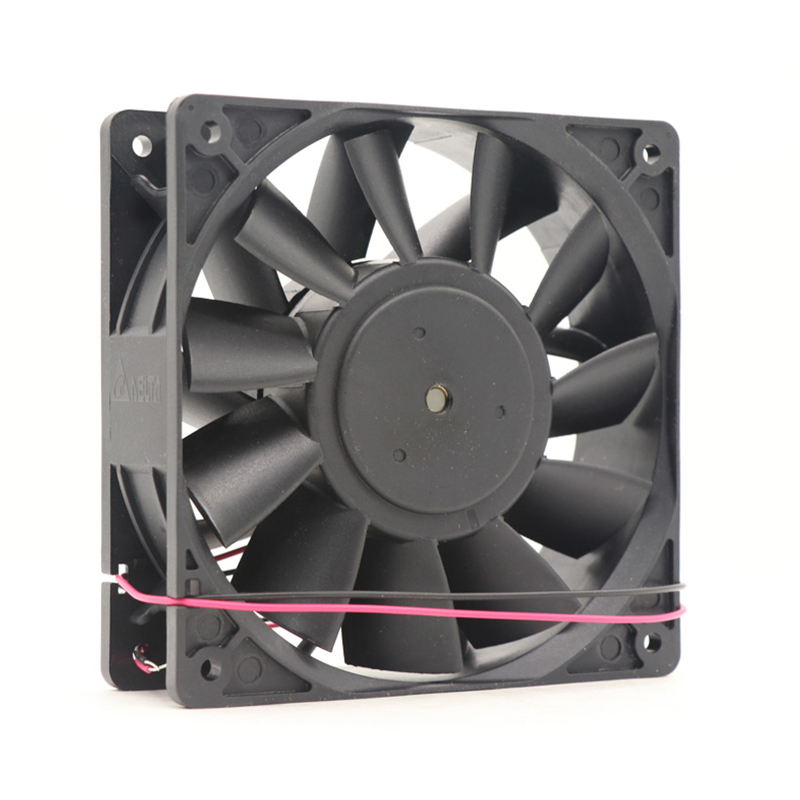

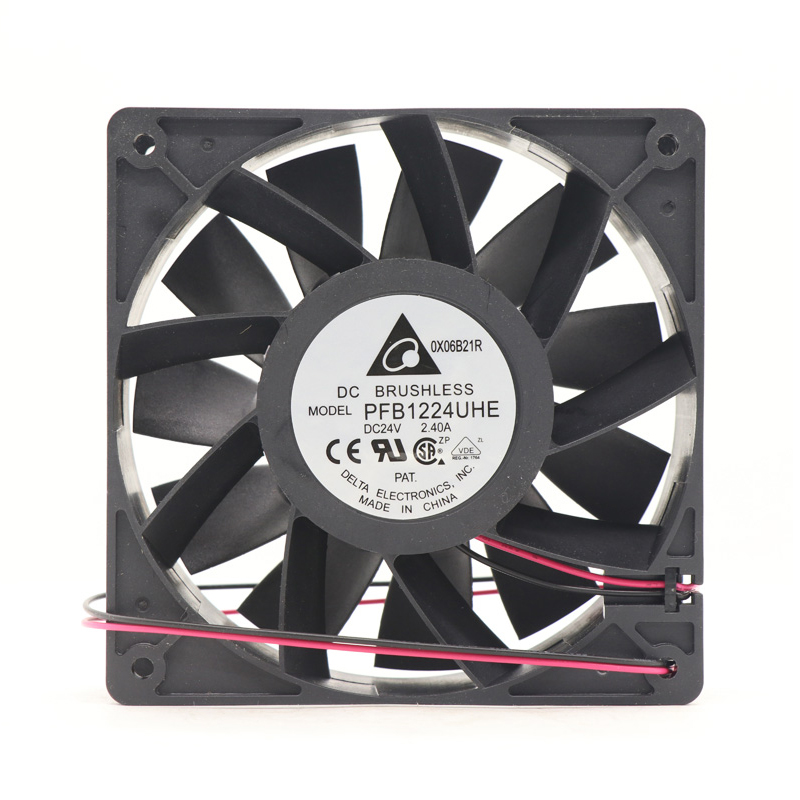

PFB1224UHE Delta Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delta | |
| Type： | Axial Fan | |
| Max. Air Flow： | 4296 m³/h | |
| Voltage Type： | DC | |
| Conformity with Standards： | CE, CSA, UL, VDE | |
| Motor Bearing： | Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | Axial | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |

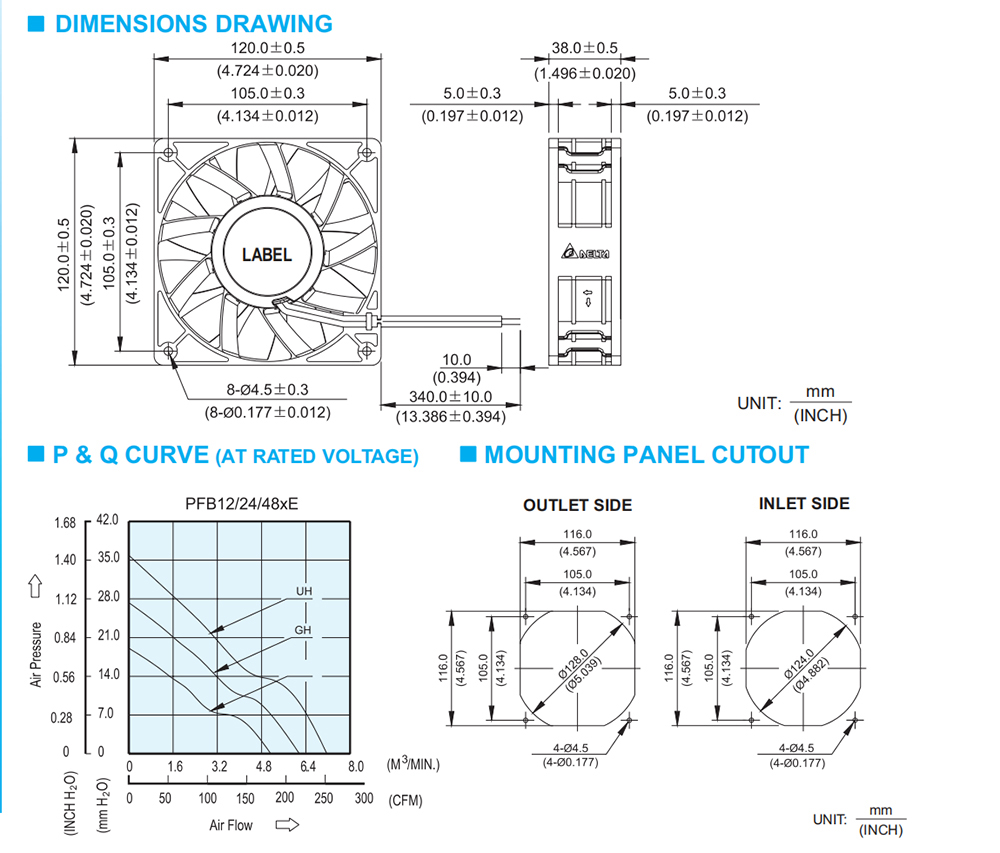

| Height： | 38 mm | |
| Width： | 120 mm | |
| Length： | 120 mm | |
| Noise： | 66.5 dB | |
| Max. Pressure： | 352 Pa | |
| Max. Ambient Temperature： | 60 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 48 W | |
| Speed： | 5500 RPM | |
| Voltage Range： | 14-26.5 | |
| Voltage： | 24 V | |
| Series： | PFB |
Details
Application scenarios
-
Data Center
Fans are key components of the data center's cooling system, directly affecting server stability, power usage effectiveness (PUE) and operation and maSee more -
Fuel Cells
Due to the wide variety and performance range of fuel cells, they can be used in many different applications, such as mobile applications in mobile phSee more -
Tube Radiant Heaters
Heating large buildings requires a lot of energy, so it is particularly important to heat only what is needed and not lose heat when the door is openeSee more -
Extractor Hoods
The fan is the "heart" of the extractor hoods, which directly determines its exhaust efficiency, noise control, energy consumption level and service lSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
