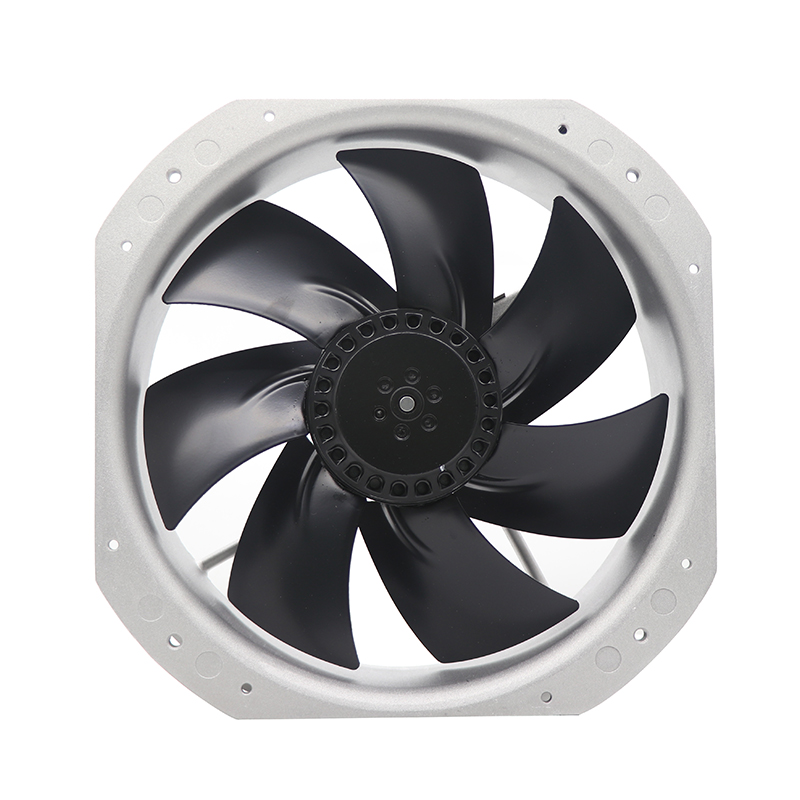

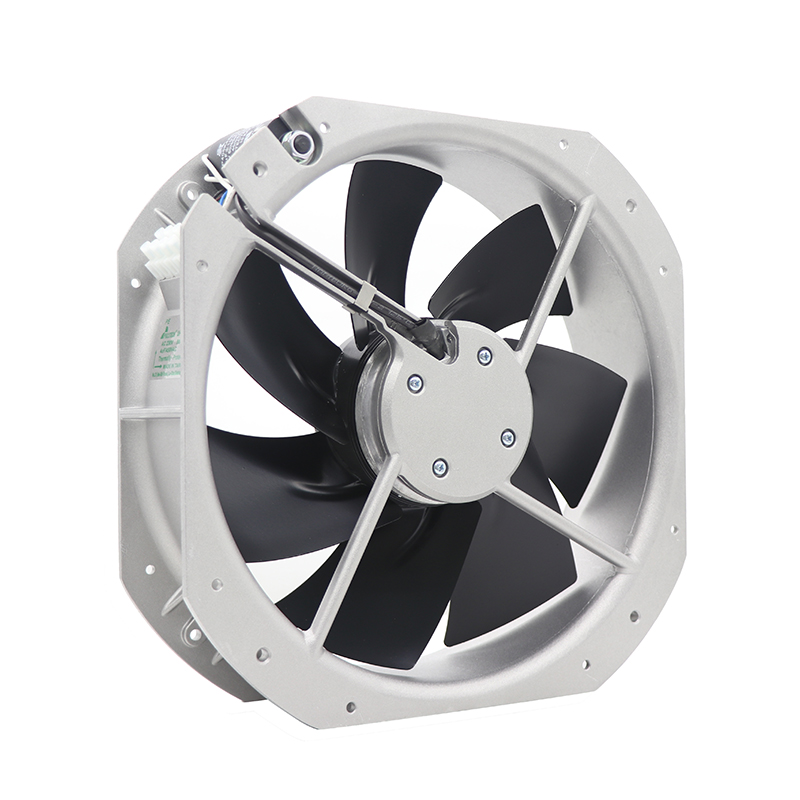

UF-250BMB23H1C2A Fulltech Axial Fan

Name: UF-250BMB23H1C2A Fulltech Axial Fan
SKU: ICX-2026905-UF250BMB23H1C2A

Brand:

FULLTECH

Type:

Axial Fan

Max. Air Flow:

560 m³/h

Noise:

58 dB

Input Power:

105 W

Voltage:

230 V

Model:

UF-250BMB23H1C2A

Order Number:

ICX-2026905-UF250BMB23H1C2A

Description:

UF-250BMB23H1C2A,Fulltech,Axial Fan,AC,230V,105W,560m³/h,49Pa,250x250x80mm,58dB

WhatsApp Inquire Now

Product parameters
Details
Application scenarios
frequently asked questions

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	FULLTECH
Type：	Axial Fan
Max. Air Flow：	560 m³/h
Voltage Type：	AC
Degree of Protection：	IP44
Conformity with Standards：	UL,CE,TUV
Motor Bearing：	Ball Bearing
Direction of Rotation：	Clockwise
Airflow Direction：	Axial
Housing Material：	Aluminum
Impeller Material：	Plastic
Height：	80 mm
Width：	250 mm
Length：	250 mm
Noise：	58 dB
Max. Pressure：	49 Pa
Max. Ambient Temperature：	60 ℃
Input Power：	105 W
Voltage：	230 V
Series：	UF250BMB

Products with the same attribute : 0

Show details

Details

Application scenarios

Frequently asked questions

Characteristics and classification of axial flow fans

Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
