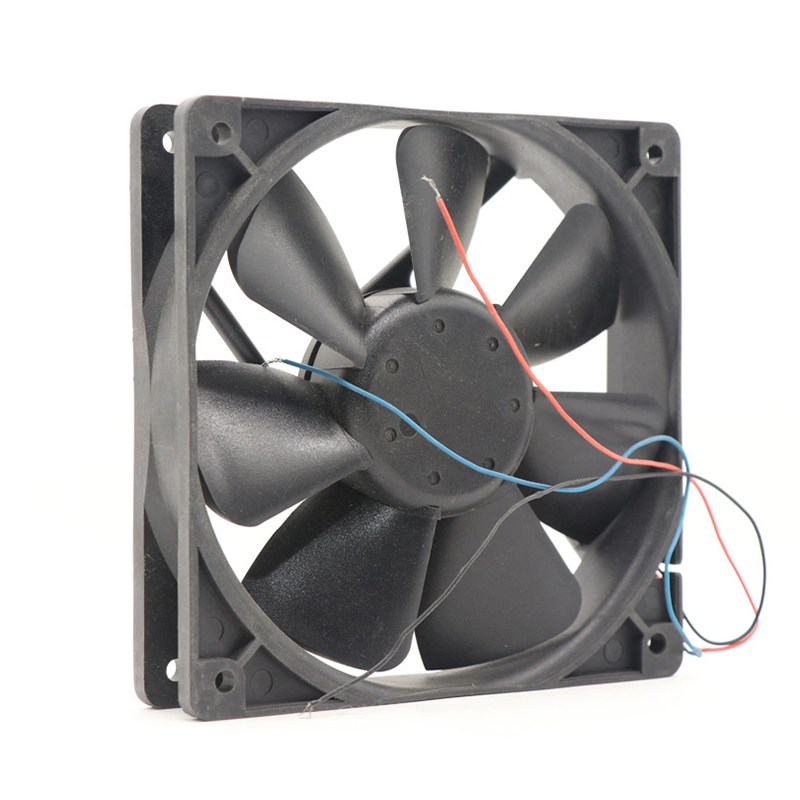

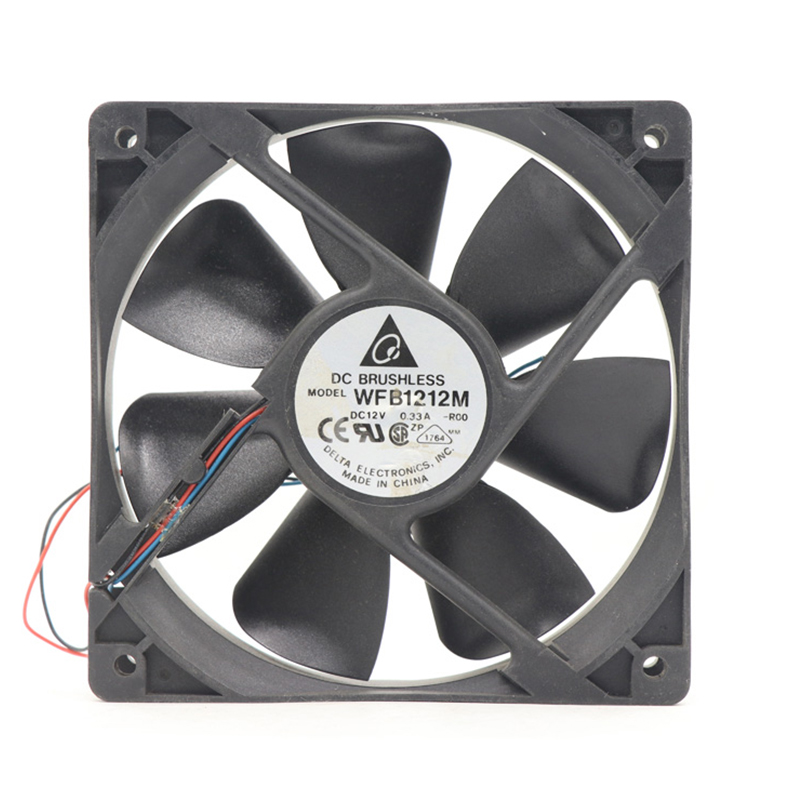

WFB1212M Delta Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delta | |
| Type： | Axial Fan | |
| Max. Air Flow： | 240 m³/h | |
| Voltage Type： | DC | |
| Motor Bearing： | Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Airflow Direction： | Axial | |
| Housing Material： | Plastic | |
| Impeller Material： | Plastic | |
| Height： | 38 mm | |
| Width： | 120 mm | |
| Length： | 120 mm | |
| Noise： | 48 dB | |
| Max. Pressure： | 210 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 7.2 W | |
| Speed： | 3200 RPM | |
| Voltage Range： | 10.8-13.2 | |
| Voltage： | 12 V | |
| Series： | WFB |
Application scenarios
-
Server Cooling
The fan is the core component of airflow drive and heat exchange in the server cooling system. It quickly discharges the heat generated by the serverSee more -
Air Doors/Air Curtains
Dampers and air curtains are two key devices in the field of ventilation and air management. Dampers are adjustable devices installed in ducts or openSee more -
Condensers
In the condenser, the fan (especially the fan in the air-cooled condenser) is a key component to accelerate heat dissipation, improve energy efficiencSee more -
Air Heaters
The fan is a core component in the air heater that enhances heat transfer, ensures safety and improves energy efficiency. It ensures efficient and uniSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
