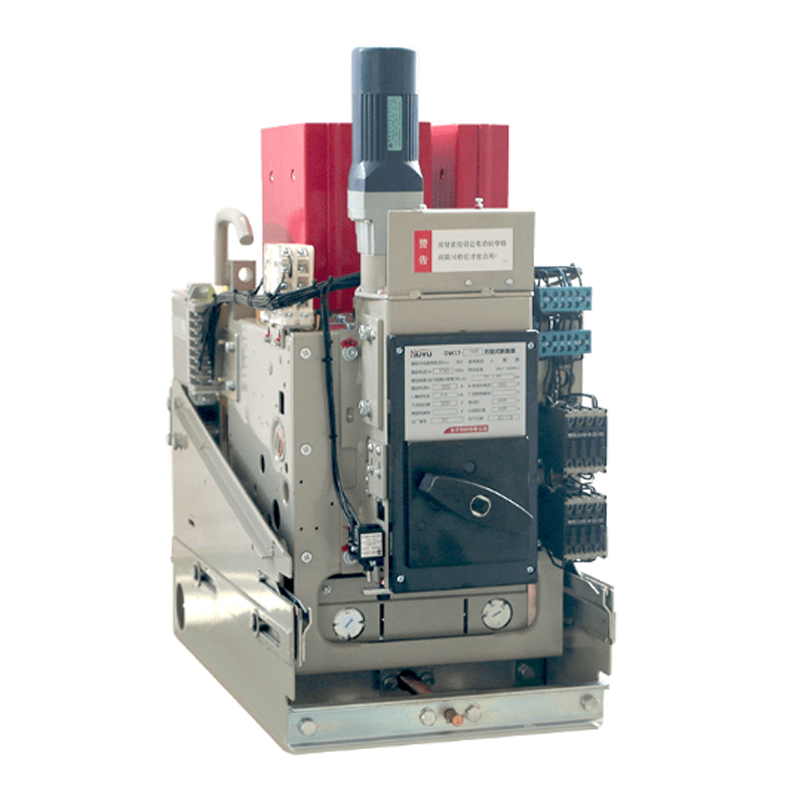

TGW1N-2000/3P 1250A Undervoltage Frame Circuit Breaker

Name: TGW1N-2000/3P 1250A Undervoltage Frame Circuit Breaker
SKU: ICX-2027939-524241

Brand:

TENGEN

Wiring Method:

Upper horizontal rear wiring + lower horizontal rear wiring

Trip Unit:

Model:

TGW1N-2000/3P 1250A Drawer level AC380V undervoltage AC220V

Order Number:

ICX-2027939-524241

Description:

TENGEN TGW1N-2000/3P 1250A Drawer Horizontal AC380V Undervoltage AC220V, Measurement Display Current, 80KA, 1250A, M, 415VAC, 3P

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	TENGEN
Series：	TGW1N
Protection Function：	LSIG
Configured Attachments：	Opening coil 220VAC, closing coil 220VAC, energy storage motor 220VAC, auxiliary contact 4NO+4NC, phase partition
Frame Current：	2000A
Wiring Method：	Upper horizontal rear wiring + lower horizontal rear wiring
Poles：	3P
Rated Voltage：	415VAC
Installation：	Drawer type
Trip Unit：	M
Rated Current of Release：	1250A
Breaking Capacity：	80KA
Measurement Display Function：	Current
Required Accessories (please purchase separately)：	Undervoltage release 220VAC

Products with the same attribute : 0

Show details

Series Overview

Product Overview

● The TGW1N series universal circuit breaker (hereinafter referred to as the "circuit breaker") is suitable for AC 50/60Hz distribution networks with rated voltages of AC380V to AC690V and rated currents of 200A to 6300A. It distributes electrical energy and protects circuits and power equipment from overload, short-circuit, undervoltage, single-phase grounding, residual current, and other faults. Equipped with communication and intelligent protection functions, it enhances power supply reliability and avoids unnecessary outages. With exceptional breaking performance and high-quality standards, it fully replaces DW45 products on the market.

International Standards & Certifications

● 3C, CE, CB

● Compliance Standards: GB/T 14048.2, IEC/EN 60947-2

Normal Operating & Installation Conditions

● Ambient Temperature: -5°C to +40°C (operational range).

● Installation Category:

Main circuit, voltage release coils, and primary transformer windings: Category IV.
Auxiliary/control circuits: Category III.
Vertical tilt angle ≤ 5°.

● Pollution Degree: Level 3.

● Altitude: ≤ 2000m. For altitudes >2000m, follow derating requirements.

● Atmospheric Conditions:

Relative humidity ≤ 50% at +40°C ambient temperature.
Higher humidity permissible at lower temperatures (e.g., 90% monthly average maximum humidity at +25°C monthly average minimum temperature). Surface condensation due to temperature fluctuations must be considered.

● Protection Rating: Front IP20; other surfaces IP00.

● Electromagnetic Interference: Suitable for electromagnetic environment A.
