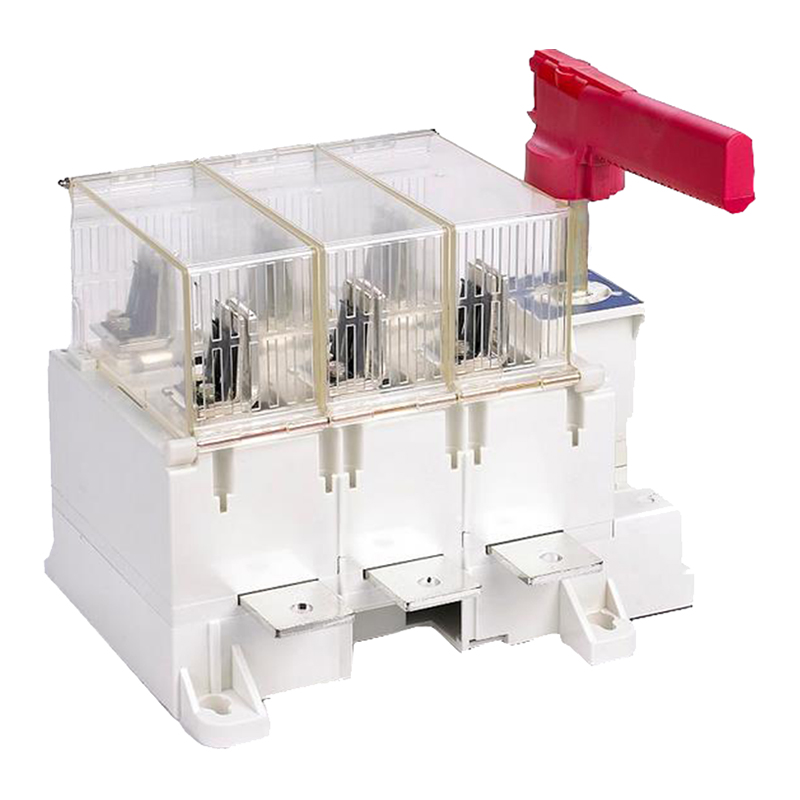

TENGEN HR6-250/30 250A Fuse Disconnector

Name: TENGEN HR6-250/30 250A Fuse Disconnector
SKU: 08060150042

Brand:

TENGEN

Series:

HR6

Fuse Specifications:

On/Off Load Type:

Switching motor load

Handle Type:

How It Works:

Frontal Operation

Rated Current:

250A

Poles:

Rated Voltage:

380/400/415VAC

Installation:

Fixed

Model:

HR6-250/30 250A without fuse (U)

Order Number:

08060150042

Description:

HR6-250/30 250A without fuse (U), 3P, fixed, front operation, 250A, switching motor load, 380/400/415VAC

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	TENGEN
Series：	HR6
Fuse Specifications：	-
On/Off Load Type：	Switching motor load
Handle Type：	-
How It Works：	Frontal Operation
Rated Current：	250A
Poles：	3P
Rated Voltage：	380/400/415VAC
Installation：	Fixed

Products with the same attribute : 0

Show details

Series Overview

The HR6 series fuse - type isolating switch (hereinafter referred to as the switch) is mainly used in power distribution circuits and motor circuits with high short - circuit currents, where the rated voltage is AC 380V/660V (50Hz) and the rated heating current is up to 630A. It serves as a power switch, an isolating switch, an emergency switch, and is used for circuit protection. However, it is generally not used as a direct on - off switch for a single motor.
The switch is composed of a base, a cover, an arc - extinguishing chamber, etc., all made of thermosetting plastic, and has an all - plastic structure.
The static contact is directly installed on the base. The arc - extinguishing chamber is easy to install. Each arc - extinguishing chamber has an inner chamber and an outer chamber. Multiple metal arc - extinguishing grids are used, which enhances the arc - extinguishing ability and improves the contact life.
The NT - type fuse link is installed inside the cover. The cover can rotate in a fan - shape along the support, with a large electrical isolation distance to meet the requirements of the isolating switch. The cover can be removed from the base, making the installation and replacement of the fuse link very convenient.
There are three sets of installation holes on the base, which can meet the installation requirements in various switch cabinets and on panels.
Auxiliary contacts can be installed on both sides of the switch as needed to send out signals indicating the on - off state of the switch.
This product complies with the GB14048.3 standard.
