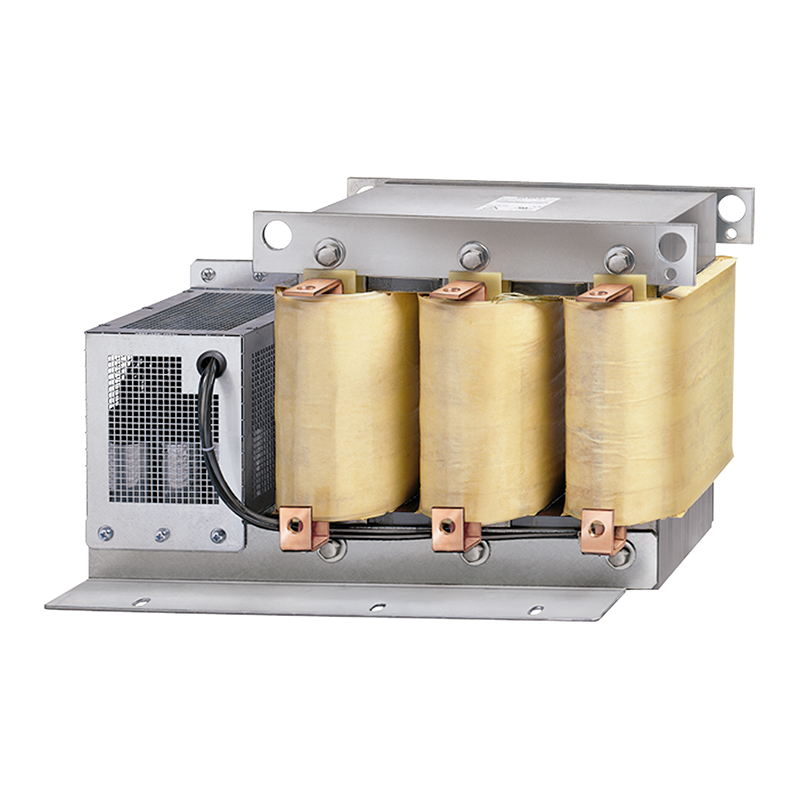

Siemens 6SL3203-0CE21-0AA0 Inverter Accessory
Brand:
Series:
G120
Product Type:
Power reactor
Model:
6SL3203-0CE21-0AA0
Order Number:
6SL32030CE210AA0
Description:
Siemens inverter accessories G120 6SL3203-0CE21-0AA0, power reactor
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Siemens | |
| Series： | G120 | |
| Product Type： | Power reactor |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Intelligent Operation Panel IOP and Handheld IOP
- Equipped with a large - sized plain text display screen, menu navigation function, and application wizard, thus simplifying the commissioning of standard drives.
- In important applications such as pumps, fans, compressors, and conveying systems, the integrated application wizard of this component can assist users in completing the commissioning through a full - process interactive guidance.
Installation and Use
- Can be directly installed on the control unit.
- Can be installed on the door of the switch cabinet through door - mounting accessories (protection class up to IP54/UL Type 12).
- Available in handheld specifications.
- This IOP has two model products and supports the following languages 1):
- German, English, French, Italian, Spanish, Portuguese, Dutch, Swiss German, Russian, Czech, Polish, Turkish, Finnish.
- Chinese, English, German.
Commissioning Can Be Completed Quickly Without Expert Knowledge
- Commissioning can be carried out without documents in many cases.
- The parameter list can be customized by the user, and the number of parameters can be reduced or selected by the user.
- The parameter list can be customized by the user, and the number of parameters can be reduced or selected by the user.
- The wizard function for specific applications makes the commissioning of standard applications simple, without the need to have relevant knowledge of the parameter structure.
- On - site commissioning can be conveniently realized through the handheld specification.
Batch Commissioning Can Be Realized Through the Data Logger Function
- Operation is simple and intuitive.
- Realize direct manual operation of the drive, and can be conveniently switched between automatic mode and manual mode.
- The graphic display can display status values in bar graph form, such as pressure or flow.
- The status display can freely select units, and the setting of physical quantities is more intuitive.
Minimize Maintenance Time
- Diagnosis is assisted through plain text, and it can be executed on - site without documents.
- Languages, wizards, and icons can be conveniently updated through USB.
Basic Operation Panel BOP - 2
- Equipped with a two - line screen and menu navigation function, simplifying the commissioning of standard drives. It can display parameters, parameter values, and parameter filters at the same time, thus making the basic commissioning of the drive more convenient, and in most cases, there is no need to use a printed parameter list.
Installation and Use
- Can be directly installed on the control unit.
- Can be installed on the door of the switch cabinet through door - mounting accessories (protection class up to IP54/UL Type 12).
Commissioning Can Be Completed Quickly Without Expert Knowledge
- Commissioning can be carried out without documents in many cases.
Batch Commissioning Can Be Realized Through the Data Logger Function
- Operation is simple and intuitive.
- Adopting a two - line screen, it can display up to 2 process values through text.
- The status display shows pre - defined units.
Minimize Maintenance Time
- Diagnosis is carried out through menu navigation with 7 - level display.
Memory Card SINAMICS SD Card
- The parameter settings of the frequency inverter can be saved to the SINAMICS SD card. When replacing or repairing the frequency inverter, after importing the data backed up in the memory card, the equipment can be reused.
- Parameter settings can be imported from the memory card into the frequency inverter, or backed up from the frequency inverter to the memory card.
- Up to 100 parameter groups can be saved.
- The memory card can be used for batch commissioning, and there is no need to use operation units such as IOP, BOP - 2, or commissioning tools STARTER and SINAMICS Startdrive.
- If there is a firmware on the memory card, the firmware can be upgraded/downgraded during the startup process when using the control unit.
Braking Relay
- The braking relay is used to establish the connection between the power module and the braking of the motor. In this way, the motor braking can be directly controlled through the control unit.
Safety Braking Relay
- The safety braking relay can be installed on the shielding plate at the lower end of the power module.
The safety braking relay has the following connections and interfaces:
- 1 dual - channel transistor output stage, used to control the coil of the motor brake.
- 1 formed cable interface (CTRL), used to connect the modular power module.
- 1 interface for connecting to a DC24V power supply.
PC - Frequency Inverter Connection Accessories 2
- This component is used to connect the PC with the commissioning tool STARTER 1) or SINAMICS Startdrive to the frequency inverter, so as to directly control and commission the frequency inverter through the PC.
In this way, the following operations on the frequency inverter can be realized:
- Parameter setting (commissioning, optimization).
- Monitoring (diagnosis).
- Control (obtain control right through the commissioning tool STARTER or SINAMICS Startdrive for testing).
Shielding Connection Accessories for the Control Unit
- Shielding connection accessories are provided for all signal cables and communication cables.
- Best shielding connection.
- Reduce cable stress.
Shielding Connection Accessories and Shielding Plates for Power Modules
- Shielding connection accessories, for power modules with outline dimension FSB.
Shielding connection accessories are used for:
- Simplify the shielding connection of power cables and control cables.
- Provide mechanical stress relief effect.
- Ensure the best EMC characteristics.
- Fix the braking relay.
Spare Cover Plate for Power Module PM240 with Outline Dimension FSGX
- Cabinet door assembly spare part, for power module PM240 with outline dimension FSGX.
Shielding Connection Accessories for Power Module PM240 - 2
- Power module PM240 - 2 (outline dimension from FSA to FSF) is supplied with shielding connection accessories, and this accessory is provided as a spare part.
Shielding Plate for Power Module PM230
- Power module PM230 (outline dimension from FSA to FSC, protection class IP20) is supplied with a shielding plate for motor cables and signal cables, and this shielding plate is provided as a spare part.
Terminal Cover Accessories for Types FSD to FSF
- This accessory contains a spare cover plate for covering the terminal block.
Spare Connector
- Provides spare connectors for the power incoming line, braking resistor, and motor cable for SINAMICS G120 power module PM240 - 2 (and SINAMICS G120C).
Fan Unit
- The design life of the power module fan is long. At the same time, we also provide spare fans to meet special needs, and they can be replaced simply and quickly.
