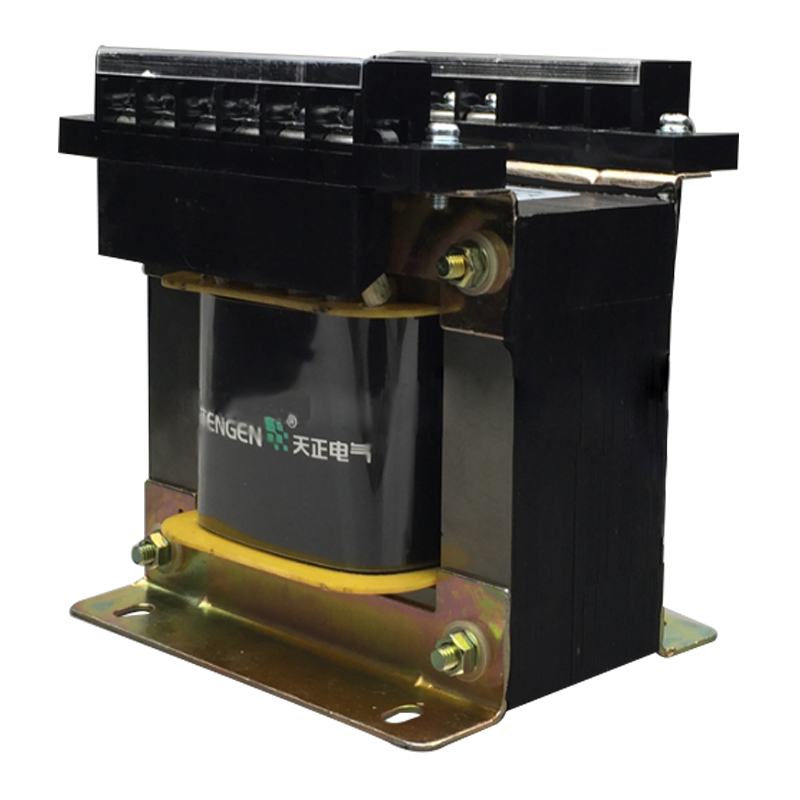

TENGEN JBK3-160VA

Name: TENGEN JBK3-160VA
SKU: 05020050981

Brand:

TENGEN

Series:

JBK

Input Voltage:

380/220VAC

Output Voltage:

127/36/24/12/6VAC

Rated Power:

160VA

Model:

JBK3-160VA(copper) 3-2/127 36 24 12 6

Order Number:

05020050981

Description:

3-2/127 36 24 12 6, rated power 160VA, output voltage 127/36/24/12/6VAC

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	TENGEN
Series：	JBK
Input Voltage：	380/220VAC
Output Voltage：	127/36/24/12/6VAC
Rated Power：	160VA

Products with the same attribute : 0

Show details

Series Overview

Product Features

The JBK series machine tool control transformers are suitable for circuits with an AC frequency of 50/60Hz and an input voltage not exceeding 660V. They are used as the control power supply for general electrical appliances in various machine tools and mechanical equipment, as well as the power supply for local lighting and indicator lights.

Normal Operating Conditions and Installation Conditions

The altitude is not higher than 2000m
The maximum ambient temperature does not exceed +40°C, and the minimum temperature is not lower than -5°C (When the user needs to use it in an environment lower than -5°C or higher than +40°C, special instructions are required when placing an order). The average temperature value within 24h does not exceed +35°C
The average maximum humidity in the wettest month is not greater than 90%, and the average minimum temperature of that month is +25°C. Consider the condensation generated on the product surface due to temperature changes
In a medium without explosion danger, and there is no gas and conductive dust in the medium that can corrode metals and damage insulation, and in a place without significant vibration and impact vibration
A place not eroded by rain and snow

Structural Features

The transformers of this series are manufactured with high - quality materials and advanced technology, and have the advantages of reliable operation, low energy consumption, small volume, convenient wiring and installation, wide applicability, and a relatively large number of connectable terminal positions.
