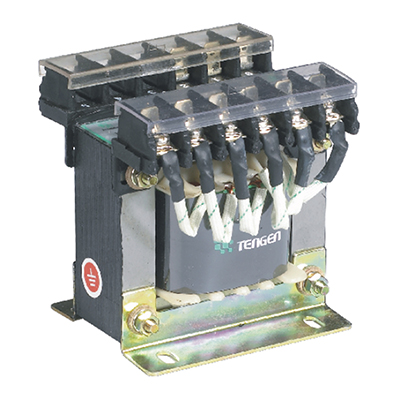

TENGEN JBK5-100VA

Name: TENGEN JBK5-100VA
SKU: 05020053271

Brand:

TENGEN

Series:

JBK5

Input Voltage:

220VAC

Output Voltage:

24VAC

Rated Power:

100VA

Model:

JBK5-100VA(copper) 220/24

Order Number:

05020053271

Description:

220/24, Rated Power 100VA, Output Voltage 24VAC, Input Voltage 220VAC

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	TENGEN
Series：	JBK5
Input Voltage：	220VAC
Output Voltage：	24VAC
Rated Power：	100VA

Products with the same attribute : 0

Show details

Series Overview

eries Overview

The JBK5 series machine tool control transformers are suitable for circuits with an AC frequency of 50/60Hz and an input voltage not exceeding 660V. They are used as the control power supply, working lighting power supply, and signal light power supply for mechanical equipment in various industries and general electrical equipment.

Normal Operating Conditions and Installation Conditions

The altitude is not higher than 2000m
The ambient temperature does not exceed +40°C, and the minimum temperature is not lower than -5°C (When the user needs to use it in an environment lower than -5°C or higher than +40°C, special instructions are required when placing an order). The average temperature within 24h does not exceed +35°C
The average maximum humidity in the wettest month is not greater than 90%, and the average minimum temperature of that month is +25°C. Consider the condensation generated on the product surface due to temperature changes
In a medium without explosion danger, and there is no gas and conductive dust in the medium that can corrode metals and damage insulation
A place without significant vibration and impact vibration
A place not eroded by rain and snow

Structural Features

The JBK5 series machine tool control transformers are developed on the basis of the domestic JBK3 series control transformers. After years of further absorbing the characteristics of similar domestic and foreign products, absorbing the advantages and discarding the disadvantages, and optimally selecting the advanced structure and advanced wiring method of the TK4 series terminal blocks from abroad, the wiring density is improved while the grounding reliability of the product is also enhanced.
For the JBK5 series machine tool control transformers (40VA - 800VA), the connection between the iron cores and the connection between the iron cores and the clamping parts (installation parts) all adopt gas - shielded arc welding, forming an integral body, making its structure reasonable and reliable. The installation parts are formed in one - time, making their installation dimensions more accurate. The grounding method adopts the core - penetrating screw crimping form, which improves the grounding reliability, and has the characteristics of reliable operation, low energy consumption, small volume, safe wiring, and strong applicability.
