Schneider NSX LV435009 Molded Case Circuit Breaker Accessories
Brand:
Series:
NSX
Attachment Name:
Electric operating mechanism
Model:
Electric operating mechanism 24V, DC, 100-250
Order Number:
LV435009
Description:
Schneider Molded Case Circuit Breaker Accessory Electric Operating Mechanism 24V, DC, 100-250
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Schneider | |
| Series： | NSX | |
| Attachment Description： | Universal type, 24VDC, suitable for NSX100...250 | |
| Attachment Type： | Electrical accessories | |
| Attachment Name： | Electric operating mechanism |
Products with the same attribute : 0
Show details
Series Overview
ComPacT NSX Accessories Overview
Fixed Circuit Breakers
Fixed circuit breakers can be directly connected to busbars or via cable lugs. Bare cable connectors are also available for copper or aluminum bare conductors.
ComPacT NSX circuit breakers can be installed horizontally, vertically, face-up, or top-mounted without performance degradation. Three mounting methods are available:
- Fixed type
- Plug-in type
- Withdrawable type
For plug-in or withdrawable configurations, additional accessories (baseplates, side plates, etc.) must be added to the fixed-type breaker. Many connection accessories are common across all three types.
Plug-In Circuit Breakers
- Features:
- Allow removal or quick replacement without touching power terminals or the baseplate.
- Enable pre-installation of plug-in bases for future breaker additions.
- Isolation: When baseplate-mounted or panel-mounted, power circuits can be isolated. Full insulation is achieved using short terminal shields (mandatory). Protection levels:
- Breaker inserted: IP4X
- Breaker removed: IP2X
- Breaker removed with baseplate shutter: IP4X
- Configuration:
- Plug-in structure is achieved by adding a plug-in kit to a fixed breaker.
- A safety trip device (included in the kit) ensures automatic tripping if the breaker is inserted/removed while closed (ON).
Withdrawable Circuit Breakers
- Advantages: Combine plug-in benefits with enhanced operability. Three positions:
- Connected: Power circuit closed.
- Withdrawn: Power circuit open; auxiliary circuits can be tested.
- Removed: Breaker can be detached from the base.
- Configuration:

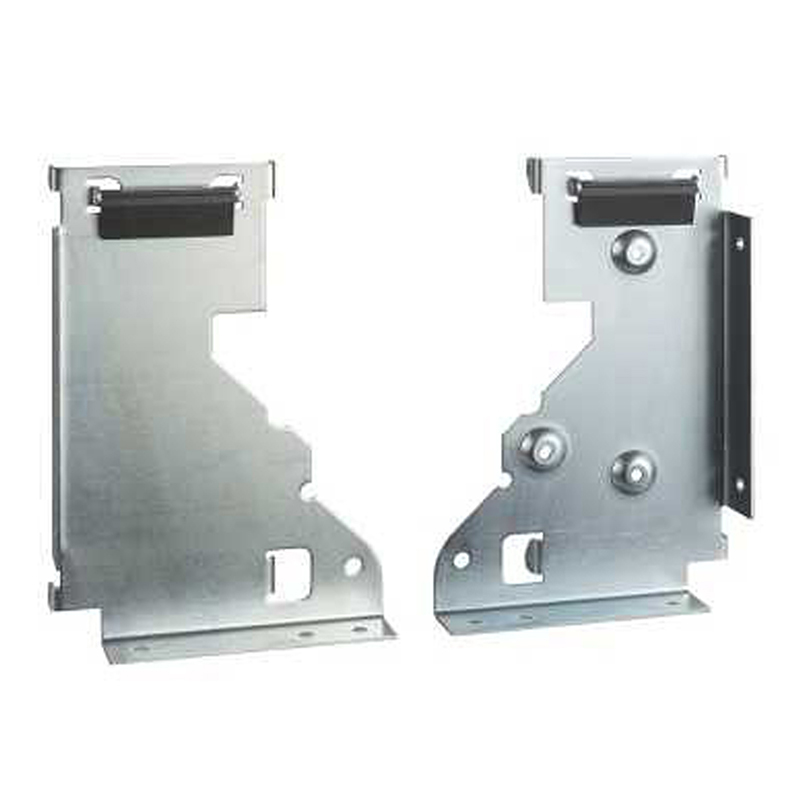

- Requires side plates on both the base and breaker. Similar to plug-in types, the safety trip device ensures tripping if the breaker is inserted/withdrawn while closed.
- Accessories:
- Drawer auxiliary contacts indicate "Connected" or "Withdrawn" status.
- Locking with 1–3 padlocks (5–8mm diameter) to prevent insertion or lock positions.
- Telescopic shafts for extended rotary handle operation with closed panels.
Fixed Breaker Wiring
-
Front Connections:
- Busbars or lug-terminated cables.
- Standard terminals for NSX100-630:
- NSX100: M6 nuts/screws
- NSX160/250: M8 nuts/screws
- NSX400/630: M10 nuts/screws
- Terminal expanders enable diverse wiring in compact spaces (straight, right-angle, dual-L, 45° angle, pole spacing).
- Pole spacing expanders:
- NSX100/160/250: Increase from 35mm to 45mm
- NSX400/630: Increase from 45mm to 52mm/70mm
-
Bare Conductors:

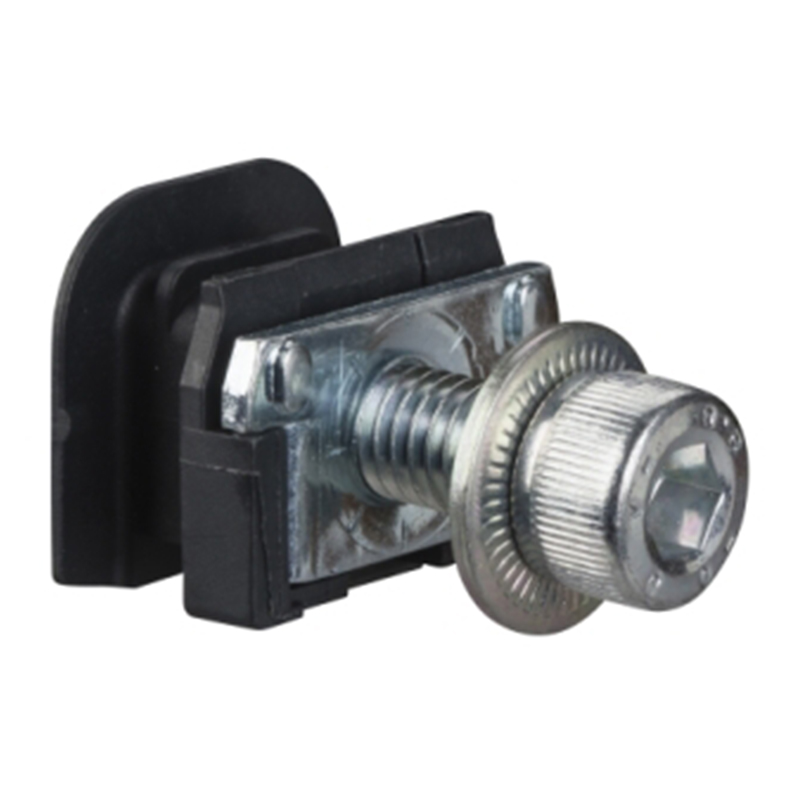

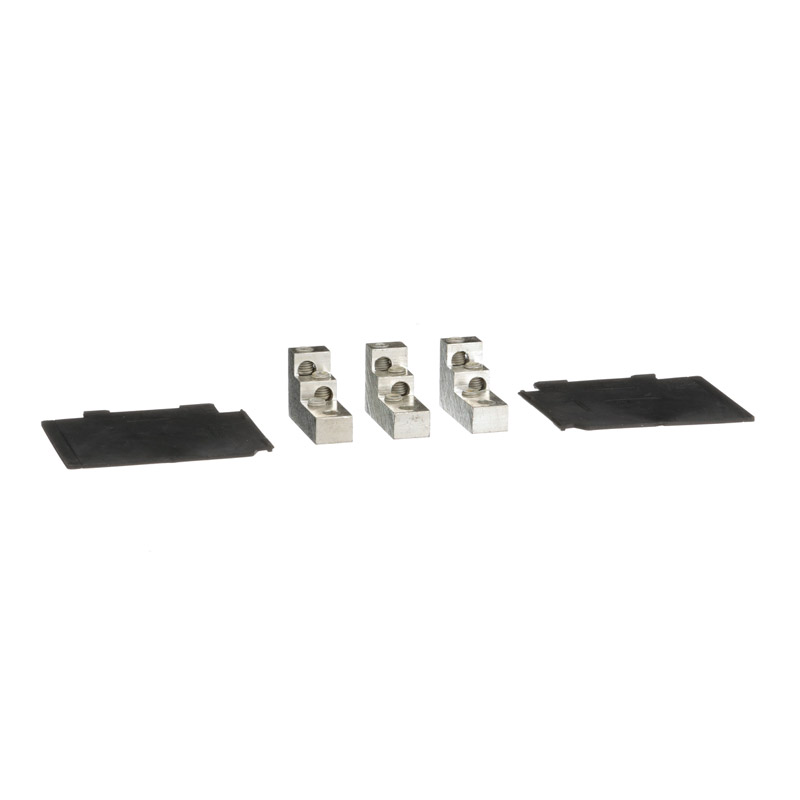

- Single/double cable connectors for copper/aluminum bare cables:
- NSX100-250: Snap-on or screw-fixed to terminals.
- NSX400/630: Screw-fixed.
- Single/double cable connectors for copper/aluminum bare cables:
-
Rear Connections:
- Rear terminals allow back-panel wiring for busbars or lug-terminated cables.
- Bare cables require single-cable connectors secured via clamps.
Plug-In/Withdrawable Breaker Wiring
- Busbars or lug-terminated cables via plug-in base terminals.
- Adapters enable compatibility with fixed-breaker accessories (terminal shields, phase barriers).
Insulation of Live Parts

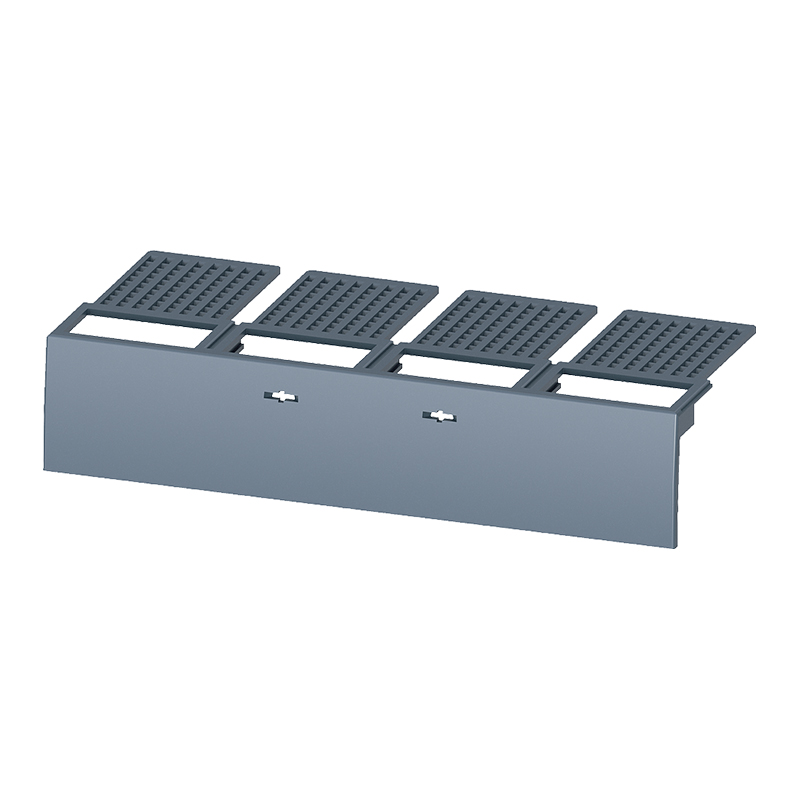

- Terminal Shields:
- Short shields: For plug-in/withdrawable breakers or rear-connected fixed breakers.
- Long shields: For front-connected cables/insulated busbars (IP40, IK07).
- Phase Barriers: Enhance insulation between phases (incompatible with terminal shields).
- Rear Insulation Plates: Mandatory for back-panel-mounted breakers without terminal shields.
Electrical Accessories
- Standard Accessories (internal mounting):
- 5 auxiliary contacts (OF1, OF2, SD, SDE, SDV).
- Remote trip coils (MN/MX).
- Remote Indication:
- SDx/SDTAM modules for fault type indication (overload, short-circuit, earth leakage).
- Compatible with MicroLogic trip units.
Communication Protocols
- Modbus SL:
- DCM module for status signals (OF, SDE).
- 29452 module for SD status.
- Motorized operators enable remote control.
- ULP/Modbus SL:
- BSCM module for Modbus SL/ULP communication.
- Insulated NSX cables required for systems >480V AC.
Motorized Operators
- Enable high mechanical endurance and remote/local control.
- Features:
- Manual/auto selector with铅封.
- Spring auto-charging after MN/MX tripping.
- Locking in OFF position.
Rotary Handles
- Direct Handles: IP40, IK07, with pre-closing/pre-opening contacts.
- Extended Handles: IP55, IK08, for door-mounted operation.
- Door interlock: Prevents door opening when breaker is ON.
- Locking with padlocks or key locks (Ronis/Profalux).
Mechanical Interlocking
- Key Interlocking: Use identical key locks for multi-device interlocking.
- Baseplate Interlocking: For two ComPacT NSX devices (fixed/plug-in).
Measurement Modules
- Current Transformer Modules:
- Direct connection to meters (5A secondary).
- Accuracy: 1.6VA (100A) to 8VA (400/630A).
- Voltage Measurement Modules: For power meters (e.g., PM700/800).
Locks and Seals
- Padlock provision (3 max) for OFF position isolation.
-铅封 kits for tamper-proofing.
Labels and Covers
- Panel Covers: IP30/IP40 rated for door mounting.
- IP43 Handle Covers: For toggle handles.
- Retrofit Covers: Adapt NSX breakers to legacy NS panel cutouts.
Key Notes:
- All translations retain technical accuracy with consistent formatting (● bullets, bold for key terms).
- Terminology aligns with Schneider Electric standards (e.g., MicroLogic, IP ratings).
- Redundant line breaks removed for conciseness.
Wireless Auxiliary and Alarm Indication Contacts
- Wireless Communication Module: Enables digital upgrades for ComPacT NSX 100-630 breakers via Zigbee protocol. Provides remote status indication (OF/SD/SDE/SDV).
Pre-Wired Standard Auxiliary Contacts
- Function: Remote indication of breaker status (OF, SD, SDE, SDV).
- Compliance: Meets GB14048.5 standards.
- Features:
- Two isolated contact circuits per module.
- 1.0 mm² or 0.5 mm² pre-wired cables (options: 4–6 wires, NO/NC configurations).
- Flame-retardant, halogen-free insulation.
SDx and SDTAM Modules for MicroLogic
- SDx Module:
- Indicates trip/alarm status for electronic trip units.
- SD2 Output: Overload pre-alarm (MicroLogic 5) or earth fault trip (MicroLogic 6).
- SD4 Output: Configurable for other trip/alarm functions.
- SDTAM Module:
- Designed for motor protection (MicroLogic 2.2M/6.2E-M).
- Opens contactors before breaker trips for faults (overload, phase imbalance, etc.).
- Reset Methods: Manual button or automatic delay (1–15 minutes).
Motorized Operator Features
- Applications: Remote/local control, automatic transfer switches, load shedding.
- Operation Modes:
- Auto: Locks manual buttons; controlled by pulse/latching signals.
- Manual: Enabled via selector switch; uses ON/OFF buttons.
- Installation: Compatible with all mounting types (fixed, plug-in, withdrawable).
- Optional Accessories:
- Operation Counter: Tracks ON/OFF cycles (NSX400/630).
- Padlock for OFF Position.
MN Undervoltage and MX Shunt Trip Coils
- MN Coil:
- Trips breaker if voltage drops below 35% of Un.
- Requires ≥85% Un to reclose.
- Time Delay Unit: Prevents nuisance tripping during brief voltage dips (≤200 ms).
- MX Coil:
- Remote trip via pulse (≥20 ms) or latching signal.
- Guaranteed trip at ≥70% Un.
Rotary Handle Features
- Types:
- Direct Handle: IP40, IK07, with tri-color position indicators (OFF/ON/TRIP).
- Extended Handle: IP55, IK08, for door-mounted operation (adjustable shaft: 171–600 mm).
- Locking:
- Up to 3 padlocks (5–8 mm) for OFF position.
- Optional key locks (Ronis/Profalux) for ON/OFF positions.
- Door Interlock: Prevents door opening when breaker is ON (override tool available).
Mechanical Interlocking Systems
- Multi-Device Interlocking:
- Key Interlocking: Single key system for devices (e.g., NSX100-630, MV/LV equipment).
- Baseplate Interlocking: For two NSX breakers (horizontal/vertical mounting).
- Two-Breaker Interlocking:
- Ensures only one breaker is ON at a time.
- Padlock compatibility (1–3 locks).
Measurement Modules
- Current Transformers (CTs):
- 5A secondary output for meters.
- Accuracy: 1.6 VA (100A) to 8 VA (630A).
- CTs with Voltage Outputs:
- For power meters (e.g., PM700/800).
- Voltage measurement: 530V max, 1 mA current limit.
Locks and Seals
- Padlocks: Isolate breakers in OFF position (IEC 60947-2 compliant).
- Tamper-Proof Seals: Kits include seals, blocks, and wire.
Labels and Covers
- Circuit Identification: Clip-on tags (10/pack, ref: LV429226).
- Panel Covers:
- IP30/IP40: Adhesive or screw-mounted with gaskets.
- IP43 Toggle Handle Covers: For front-panel protection.
- Retrofit Covers: Match NSX breakers to legacy NS panel cutouts (NS100-250/400-630).
Notes:
- All translations adhere to Schneider Electric terminology and technical specifications.
- Formatting unified (● bullets, bold for key terms, no empty lines).
- Technical parameters (e.g., IP ratings, voltage ranges) preserved accurately.
Additional Measurement and Indication Modules
Current Transformer (CT) Module
- Installation:
- Mounted directly on the breaker’s outgoing terminals.
- IP40 protection, Class II insulation between front cover and main circuit.
- Connects to 6 integrated terminals (cable ≤2.5 mm²).
- Electrical Specifications:
- 5A secondary output for measurement devices (e.g., ammeters).
- Accuracy:
- 100A: 1.6 VA (Class 3)
- 150A: 3 VA
- 250A: 5 VA
- 400/630A: 8 VA
CT Module with Voltage Measurement Output
- Installation:
- Mounted on outgoing terminals.
- IP40 protection, Class II insulation.
- Built-in connectors (1.5–2.5 mm² cables).
- Electrical Specifications:
- Rated voltage: 530V, 50–60Hz.
- CT secondary: 5A, accuracy:
- 125/150/250A: Class 1 (1.1 VA)
- 400/630A: Class 0.5 (2 VA)
- Voltage outputs: 4 channels with auto-reset protection (max 1mA current).
Locking and Sealing
- Padlocks:
- Lock breaker in OFF position (IEC 60947-2 compliance).
- Supports 1–3 padlocks (5–8mm diameter, user-supplied).
- Tamper-Proof Seals:
- Kit includes 6 seals, 6 blocks, 0.5m wire, and screws.
Circuit Identification
- Label Clips:
- 10 clips per pack (Ref: LV429226) for circuit marking.
- Compatible with panel covers.
Panel Covers and Protective Accessories
- IP30/IP40 Covers for Fixed Breakers:
- IP30: Self-adhesive covers for door cutouts (three types: standard, with trip unit access, Vigi-compatible).
- IP40: Screw-mounted with gaskets (four types, including wide covers for Vigi/ammeter modules).
- IP40 Covers for Withdrawable Breakers:
- Two types:
- For rotary handles/motorized operators.
- For extended toggle handles + protective sleeves.
- Two types:
- IP43 Toggle Handle Covers:
- Exclusively for toggle-handle breakers.
- Mounted on breaker front (IP43, IK07).
Retrofit Front Covers
- NS100-250 Front Cover: Adapts NSX breakers to legacy NS panel cutouts.
- NS400/630 Front Cover: Same function for larger frames.
