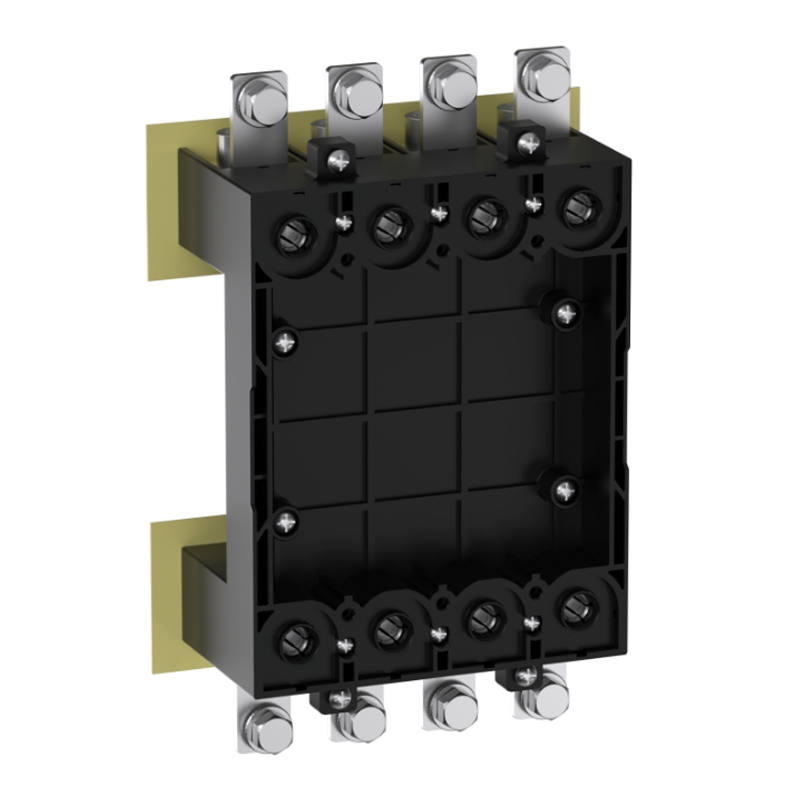

Schneider NSX DC LV438338 Molded Case Circuit Breaker Accessories

Name: Schneider NSX DC LV438338 Molded Case Circuit Breaker Accessories
SKU: LV438338

Brand:

Schneider

Series:

NSX DC

Attachment Name:

1 connector with heat sink + 1 interphase barrier

Model:

NSX-Series connector with heat sink for 400~500A

Order Number:

LV438338

Description:

Schneider Molded Case Circuit Breaker Accessory NSX - Series Connector with Heat Sink for 400~500A

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Schneider
Series：	NSX DC
Attachment Description：	Parallel and series connection accessories, 2P, suitable for NSX400..630DC
Attachment Type：	-
Attachment Name：	1 connector with heat sink + 1 interphase barrier

Products with the same attribute : 0

Show details

Series Overview

Series Overview Outline

Insulation of Live Parts

Terminal shields for fixed and plug-in/withdrawable circuit breakers are identical and suitable for all applications with voltages up to 690V. Their rated current ranges include 100/160/250 A and 400/630 A, available in long and short types.

Terminal Shields

● Terminal shields are insulating accessories that prevent direct contact with live parts. They provide a protection rating of IP40 and a mechanical impact protection rating of IK07.

Types of Terminal Shields

● ComPacT NSX100/160/250 and NSX400/630 3P or 4P can use:

Short terminal shields
Long terminal shields

Short Terminal Shields

● Suitable for:

All plug-in and withdrawable circuit breakers
Fixed circuit breakers with rear connections

Long Terminal Shields

● Designed for front connections with cables or insulated busbars.

● Consist of two parts assembled with screws to achieve IP40 protection.

● Upper part includes a sliding grid with phase markers for precise alignment with cables or insulated busbars.

● Rear part fully encloses the wiring area. Removable tabs allow adaptation to cable lugs or copper busbars.

Applications of Long Terminal Shields

● Can be installed on:

Fixed circuit breakers (both line and load sides)
Plug-in and withdrawable breaker bases. When combined with mandatory short terminal shields on the breaker, insulation is enhanced.
Integrated extenders for NSX100/160/250.
52.5 mm extenders for NSX400/630.

Phase Barriers

● Phase barriers are safety accessories that enhance insulation at connection points:

Installed by snapping onto the circuit breaker.
Only one type exists. Compatible with fixed breakers or plug-in base adapters.
Not compatible with terminal shields.
Adapters are required for installation on plug-in and withdrawable breaker bases.
