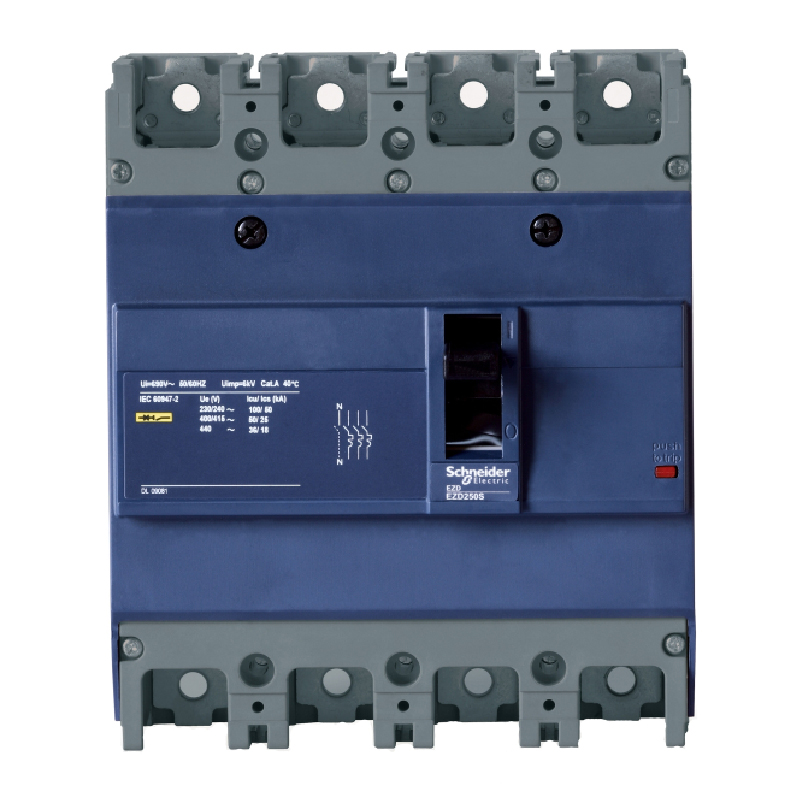

Schneider VIGIEZD400E-320A 3P leakage trip molded case leakage protection circuit breaker
Brand:
Series:
EZD
How It Works:
Manual
Frame Current:
400A
Tripping Mode:
Thermal Magnetic
Protection Function:
LI
Wiring Method:
Front panel wiring
Poles:
3P
Rated Voltage:
380/415VAC
Installation:
Fixed
Trip Unit:
TMD
Rated Current of Release:
320A
Breaking Capacity:
36KA
Model:
VIGIEZD400E-320A 3P Earth Leakage Trip
Order Number:
EZD400E3320ELK
Description:
Schneider molded case leakage protection circuit breaker VIGIEZD400E-320A 3P leakage trip, fixed, manual, 36KA, 380/415VAC, front wiring, 320A, 3P, frame current 400A
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Schneider | |
| Series： | EZD | |
| Appendix： | - | |
| How It Works： | Manual | |
| Frame Current： | 400A | |
| Tripping Mode： | Thermal Magnetic | |
| Protection Function： | LI | |
| Wiring Method： | Front panel wiring | |
| Poles： | 3P | |
| Rated Voltage： | 380/415VAC | |
| Installation： | Fixed | |
| Trip Unit： | TMD | |
| Rated Current of Release： | 320A | |
| Breaking Capacity： | 36KA |
Products with the same attribute : 0
Show details
Series Overview
EZD Molded Case Circuit Breakers: Crafting the Best Circuit Breaker for Secondary Distribution
• EZD Molded Case Circuit Breakers are a product series specifically designed by Schneider Electric for secondary distribution. They are particularly well-suited for secondary distribution, the civil construction market, and the electro-mechanical market, helping you easily build the safest and most reliable power distribution network.
Simplified Selection
• Breaking capacity covers common requirements for secondary distribution and the electro-mechanical market: 25kA, 36kA, and 50kA.
• Includes 3-pole and 4-pole products.
• The entire series features only 3 frame sizes. Fewer standard sizes provide convenience for future expansion and upgrades.
• Comprehensive protection range, including protection for low-voltage distribution systems, motor protection, and earth leakage protection.
Installation Convenience
• Mounting options include fixed and plug-in types.
• Various accessories can be installed on-site.
• Bidirectional connection (top/bottom entry) without derating, avoiding "spider webs" inside distribution boards.
• Flexible mounting positions: vertical, horizontal, side, or back mounting without affecting product performance.
• Provides a complete range of mounting and connection accessories to meet different installation needs.
• Offers dedicated busbar products for up to 12 outgoing ways of EZD100 3-pole breakers. No wiring required, simple installation, clean and aesthetic layout, enabling more compact and rational installation.
Ease of Use
• Reliable switch status indication accurately shows contact position, delivering "visible safety".
• Highest protection rating up to IP54.
• Operating modes include toggle operation, direct rotary handle operation, and extended rotary handle operation.
• Provides earth leakage alarm without tripping function, ensuring safety while better guaranteeing power supply continuity.
• As part of the environmental policy, the EZD series design complies with current and future environmental standards, from initial product design through to final use and maintenance:
• Materials used in EZD do not cause environmental pollution.
• Production equipment is pollution-free and complies with ISO 14001 standard.
• Materials are recyclable.
• Very low power consumption per pole, negligible.
Easy Installation
• Provides EZD100 plug-in products. Plug-in bases can connect to busbars via fishbone-style connection accessories, saving installation time and space, making installation more flexible.
• Offers dedicated busbar products for up to 12 outgoing ways of EZD100 3-pole breakers. No wiring required, simple installation, clean and aesthetic layout, enabling more compact and rational installation.
• 160A/250A earth leakage protection components are built-in for earth leakage circuit breakers. Consistent size with distribution circuit breakers ensures better interchangeability and more standard cutout dimensions.
• 21 rated current specifications, 3 breaking capacities, only 3 sizes, more standard cutout dimensions.
• Bidirectional connection (top/bottom entry) without derating.
• Provides complete installation and connection accessories to meet different installation needs.
Easy Maintenance
• Reliable switch status indication accurately shows actual contact position, delivering "visible safety".
• Highest protection rating up to IP54.
• Provides earth leakage alarm without tripping function, ensuring safety while better guaranteeing power supply continuity.
• Provides earth leakage alarm without tripping function, ensuring safety while better guaranteeing power supply continuity.
