ABB XT2N 160 LSIG R160 FF 4P(22) Molded Case Circuit Breaker
Brand:
Series:
Tmax XT
Protection Type:
Power distribution protection
How It Works:
Manual
Frame Current:
160A
Tripping Mode:
Electronic
Protection Function:
LSIG
Wiring Method:
Front panel wiring
Poles:
4P
Rated Voltage:
415VAC
Installation:
Fixed
Trip Unit:
Ekip
Rated Current of Release:
160A
Breaking Capacity:
36KA
Model:
XT2N 160 LSIG R160 FF 4P(22)
Order Number:
10152946
Description:
ABB Molded Case Circuit Breaker XT2N 160 LSIG R160 FF 4P(22),LSIG,Distribution Protection,36KA,160A,Fixed,Manual,4P
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ABB | |
| Series： | Tmax XT | |
| Appendix： | - | |
| Protection Type： | Power distribution protection | |
| How It Works： | Manual | |
| Frame Current： | 160A | |
| Tripping Mode： | Electronic | |
| Protection Function： | LSIG | |
| Wiring Method： | Front panel wiring | |
| Poles： | 4P | |
| Rated Voltage： | 415VAC | |
| Installation： | Fixed | |
| Trip Unit： | Ekip | |
| Rated Current of Release： | 160A | |
| Breaking Capacity： | 36KA |
Products with the same attribute : 0
Show details
Series Overview

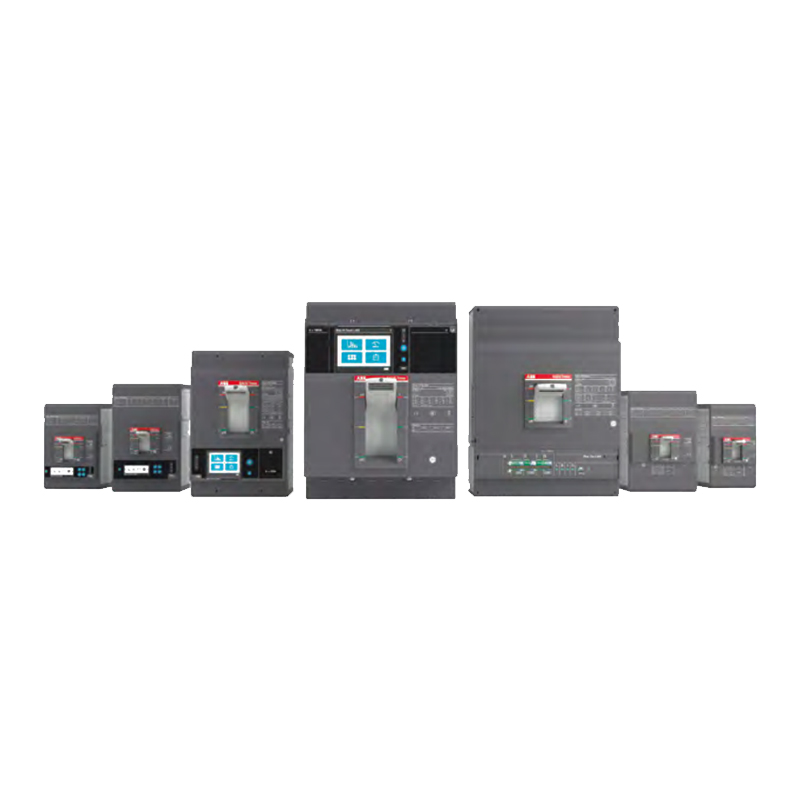

Tmax XT Overview
Breaking New Ground
● The breakthrough of the Tmax XT series lies in its delivery of value throughout the customer journey by abandoning the traditional circuit breaker concept. Sharing the same functions and logic as the Emax 2 series, it overcomes the difference between molded case and air circuit breakers for the first time, offering customers a unique experience.
● As a state-of-the-art product, Tmax XT is committed to maximizing data and IoT capabilities, ease of use and installation, performance and protection, safety, and reliability.
● The Tmax XT series delivers higher performance, better protection, and more precise measurement than comparable products and can handle currents up to 1600A.
● The new product series combines the world's most precise electronic trip unit with a minimal footprint, significantly saving time and enhancing installation reliability. Reliability is further increased and installation difficulty reduced by connecting to the Ekip trip unit via Bluetooth using mobile devices.
● The built-in connectivity of the Tmax XT series enables real-time connection of smartphones, tablets, and PCs to the data analysis tools of the ABB Ability™ cloud platform. The extremely high accuracy of measured data means users can obtain accurate information anytime, anywhere, making it easier to monitor resources and identify energy-saving opportunities. With the help of embedded intelligent PMS energy management, energy consumption can be reduced by up to 20%.
● Upgrading the circuit breaker is very simple; customers can autonomously choose from over 50 different protection, measurement, and automation functions available on the ABB Ability™ Marketplace™ and download new functionalities.
Unique Features
Data and Connectivity
● Future-proof device management - Tmax XT sets a new benchmark for modern device and energy management. It enables remote access, monitoring, and control of information anytime, anywhere, improving efficiency and saving energy.
● Tmax XT is a molded case circuit breaker that can become an active player within electrical installations without requiring external accessories.
● - Local connection -
● With Bluetooth connection and Ekip Connect software, commissioning and device setup become unprecedentedly simple.
● - Remote communication -
● It supports several communication protocols, enabling access to all data from the electrical installation and easy interaction with remote circuit breakers.
● - Cloud connection -
● Cloud connectivity is achieved with the Ekip Com HUB module, fully leveraging the services offered by ABB Ability™ EDCS.
Ease of Use and Installation
● Tmax XT sets the benchmark for electrical installations by providing maximum flexibility for every application. It is easy to select, offers universal accessories and an intuitive design, paving the way for quick upgrades and creating value throughout the customer journey, even for the most critical projects.
● - Easy selection -
● The Tmax XT series' simple and clear model classification and user-friendly e-Configure software allow customers to easily select and customize products that suit their needs.
● - Universal accessories -
● The modular design and rich accessory configuration of Tmax XT allow the most basic circuit breaker to be upgraded into a comprehensive, multifunctional device.
● - Upgradability -
● Ekip Touch and Hi-Touch trip units can always be upgraded via the Ability™ Marketplace™ and are consistently ready to adopt new functions to meet future development needs.
Performance and Protection
● Uninterrupted operation and equipment protection are the benchmarks set by Tmax XT to meet the demands of extremely high breaking capacities. It shares the same logic, interfaces, and functions regardless of operating voltage or environmental conditions. It embeds the most advanced protection functions in the smallest size.
● - Electrical performance -
● - Measurement -
● Tmax XT provides all the tools needed to establish excellent and effective energy management strategies. This is because the trip unit can measure electrical parameters with certified accuracy of 1%.
● - Protection and logic -
● Tmax XT integrates additional functions within the standard dimensions of a molded case circuit breaker. With its advanced trip unit, it achieves state-of-the-art protection functions and logic.
Safety and Reliability
● With absolute attention to detail, Tmax XT sets a new benchmark for edge devices, from design style to manufacturing methods. Half a century of research and experience means it is a top-tier product capable of facing future challenges.
Product Compliance
● Tmax XT circuit breakers and their accessories comply with the IEC 60947 and EN 60947 international standards.
● Compliance Standards
● Tmax XT circuit breakers and their accessories are constructed in compliance with:
● - Standards -
● IEC 60947-2;
● - Directives -
● EC Low Voltage Directive (LVD) No. 2014/35/EC;
● EC Electromagnetic Compatibility Directive (EMC) 2014/30/EC;
● - Classification Societies -
● Lloyd's Register (LR), Germanischer Lloyd (GL), Bureau Veritas (BV), Registro Italiano Navale (RINA), Det Norske Veritas (DNV), Russian Maritime Register of Shipping (RMRS), American Bureau of Shipping (ABS).
● Product inspection and certification are carried out according to the European standard EN 45011 by the Italian certification body ACAE and the Swedish certification body SEMKO in ABS ACE laboratories (accredited by SINAL). ACAE is a member of the European LOVAG (Low Voltage Apparatus Group) organization; SEMKO is certified by the IECEE organization.
Product Material Compliance
● The XT series complies with the following international regulations:
● RoHS II, Directive 2011/65/EC;
● China RoHS;
● REACH, 2006/1907/EC, Registration, Evaluation, Authorisation and Restriction of Chemicals;
● WEEE 2012/19/EU - Waste Electrical and Electronic Equipment;
● Conflict Minerals - Section 1502 of the Dodd-Frank Consumer Protection Act.
Construction Features
● All Tmax XT molded case circuit breakers are manufactured with the following construction features.
● Double Insulation
● Tmax XT circuit breakers feature double insulation between live parts (excluding terminals) and the front parts operated by personnel during normal operation. The base of each electrical accessory is completely isolated from the power circuit, preventing any risk of contact with live parts. In particular, the operating mechanism is fully insulated from the power circuit.
● The circuit breaker features oversized insulation both near live internal parts and connection terminals. Furthermore, the distances exceed the requirements of the IEC standard and fully comply with the provisions of the UL 489 standard.
● Reliable Operation
● The operating handle always indicates the precise position of the circuit breaker's moving contacts, ensuring safe and reliable signaling in compliance with IEC 60073 and IEC 60417-2 standards (I = ON; O = OFF; yellow-green line = trip due to protection). The circuit breaker's operating mechanism trips easily regardless of handle pressure or operating speed. Protective tripping automatically opens the moving contacts: to close them again, the operating mechanism must first be reset by pushing the handle from the intermediate position to the bottom OFF position.
● Isolation Function
● In the OFF position, the circuit breaker ensures insulation distances comply with the IEC 60947-2 standard, preventing leakage current from flowing between the input and output terminals.
● Tropical Climate Suitability
● Circuit breakers and accessories in the Tmax XT series are tested according to IEC 60068-2-30 standard, using the "variant 1" method (section 7.3.3), performing two test cycles at 55°C.
● Suitability for the most severe environmental conditions, as defined by class 8 humid warm climate according to IEC 60721-2-1, is further guaranteed for the Tmax XT series thanks to:
● Plastic enclosure made of synthetic resin reinforced with glass fiber;
● Anti-corrosion treatment of main metal parts;
● Fe/Zn 12 galvanic coating (ISO 2081) protected by a conversion layer, free from hexavalent chromium (ROHS compliant), offering the same corrosion resistance guaranteed by ISO 4520 class 2C;
● Anti-condensation protection adopted for the electronic overcurrent trip units and related accessories.
