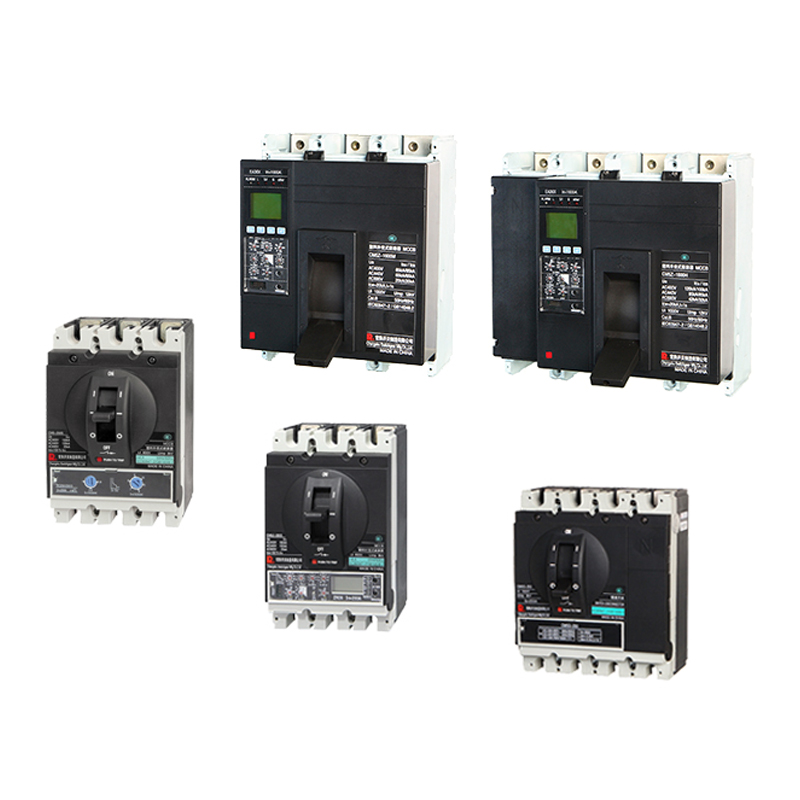

Delixi CDM6EI-250M 3328 250A Lead 1m Molded Case Circuit Breaker
Brand:
Series:
CDM6Ei
Protection Type:
Power distribution protection, motor protection
How It Works:
Manual
Frame Current:
250A
Tripping Mode:
Electronic
Protection Function:
LSI
Wiring Method:
Front panel wiring
Poles:
3P
Rated Voltage:
400/415VAC
Installation:
Fixed
Trip Unit:
Electronic release
Rated Current of Release:
250A
Breaking Capacity:
50KA
Model:
CDM6EI-250M 3328 250A Lead 1m
Order Number:
M6EI250M2503328Y1
Description:
Delixi molded case circuit breaker CDM6EI-250M 3328 250A lead 1 meter, LSI, power distribution protection, motor protection, 50KA, 250A, fixed, manual, 3P
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delixi | |
| Series： | CDM6Ei | |
| Appendix： | Auxiliary contact, alarm contact | |
| Protection Type： | Power distribution protection, motor protection | |
| How It Works： | Manual | |
| Frame Current： | 250A | |
| Tripping Mode： | Electronic | |
| Protection Function： | LSI | |
| Wiring Method： | Front panel wiring | |
| Poles： | 3P | |
| Rated Voltage： | 400/415VAC | |
| Installation： | Fixed | |
| Trip Unit： | Electronic release | |
| Rated Current of Release： | 250A | |
| Breaking Capacity： | 50KA |
Products with the same attribute : 0
Show details
Series Overview
Series Overview Outline Compliant Standards
● GB/T 14048.1 General Rules
● GB/T 14048.2 Circuit-breakers
● IEC 60947-1 General Rules
● IEC 60947-2 Circuit-breakers
Pollution Degree
CIM6EI series products operate in an environment defined as Pollution Degree 3 by standards IEC 60947-1 and IEC 60664-1 (industrial environment).
Resistance to Damp Heat
Dry cold, dry heat, damp heat ambient temperature.
Ambient Air Temperature
Upper limit: +70°C, Lower limit: -40°C; 24-hour average temperature not exceeding +35°C (Note: Usable within the range -40°C to -25°C and +40°C to +70°C).
Storage Temperature: -40°C to +70°C
Altitude
Normal operating installation altitude does not exceed 2000m.
Humidity
Must be satisfied during normal operation:
● At an ambient air temperature of +40°C, the relative humidity of the atmosphere must not exceed 50%. At lower temperatures, higher relative humidity is permissible.
● The monthly average relative humidity of the wettest month is 90%.
● The impact of condensation on product surfaces on product performance must be considered.
Reliable Contact Indication with Isolation Function
CIM6Ei series Molded Case Circuit Breakers (MCCBs) comply with the isolation definition in IEC 60947-2.
● The isolation position corresponds to the 0 (OFF) position.
● The operating handle can only indicate the "OFF" position when the contacts are actually open.
● The reliability of the contact indication system is not affected by rotating the handle or operating the motor mechanism.
● Tested to ensure the isolation function is safe and reliable.
Protection Degree (IP Rating)
● Breaker body: IP20 (excluding terminals)
Breaker installed in switchgear:
● With rotary handle: IP40
● With motor-operated mechanism: IP40
